1-1393641-4
64 Position Din Connector Receptacle, Female Sockets Gold or Gold-Palladium Through Hole
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1393641-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

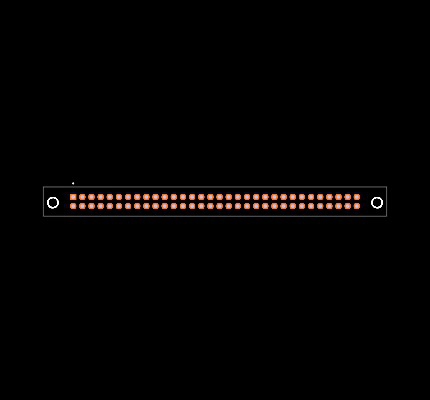

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1393641-4
| Part Name | 1-1393641-4 |
| Manufacturer | TE Connectivity |
| Underplate Material Thickness | 1.27 |
| Centerline (Pitch) | .1 |
| Circuit Application | Signal |
| Mating Alignment Type | Polarization |
| Housing Material | Polyester - GF |
| Contact Termination Area Plating Thickness | 100 |
| Connector Style | Receptacle |
| PCB Mount Orientation | Vertical |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Alignment | Without |
| PCB Thickness (Recommended) | .062 |
| Termination Post & Tail Length | .177 |
| Panel Mount Feature | Without |
| TE Internal Number | 1-1393641-4 |
| UL Rating | Recognized |
| Connector System | Board-to-Board |
| Mating Retention | Without |
| Connector Height | 11.51 |
| Number of Rows | 2 |
| Connector Width | .317 |
| Contact Underplating Material | Nickel |
| Number of Signal Positions | 64 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Contact Transmits (Typical) | Signal (Data) |
| Number of Columns | 32 |
| Connector Length | 3.7 |
| UL File Number | E28476 |
| Operating Temperature Range | -55 – 105 |
| Shielded | No |
| CSA Certified | Yes |
| Packaging Method | Tray |
| Contact Layout | Inline |
| Contact Termination Area Plating Material | Tin-Lead |
| 端子の下地めっきの材料 | Nickel |
| Number of Positions | 64 |
| Make First / Break Last | No |
| Contact Mating Area Plating Material | Gold or Palladium Nickel or Performance Based |
| RoHS | True |
| Life Cycle Status | End of Life |
| DIN Size | Standard |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Base Material | Phosphor Bronze |
| Rows Loaded | A, B, C |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | .76 |
| Row-to-Row Spacing | .1 |
| CSA File Number | LR 7189 |
| DIN Level | II |
| Contact Cross Section | .32 x .76 |
| Contact Type | Socket |
| Board-to-Board Configuration | Vertical |
| Guides | Without |
| Mating Alignment | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
