1-1410297-4
MULTIGIG RT Connectors and Accessories
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1410297-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

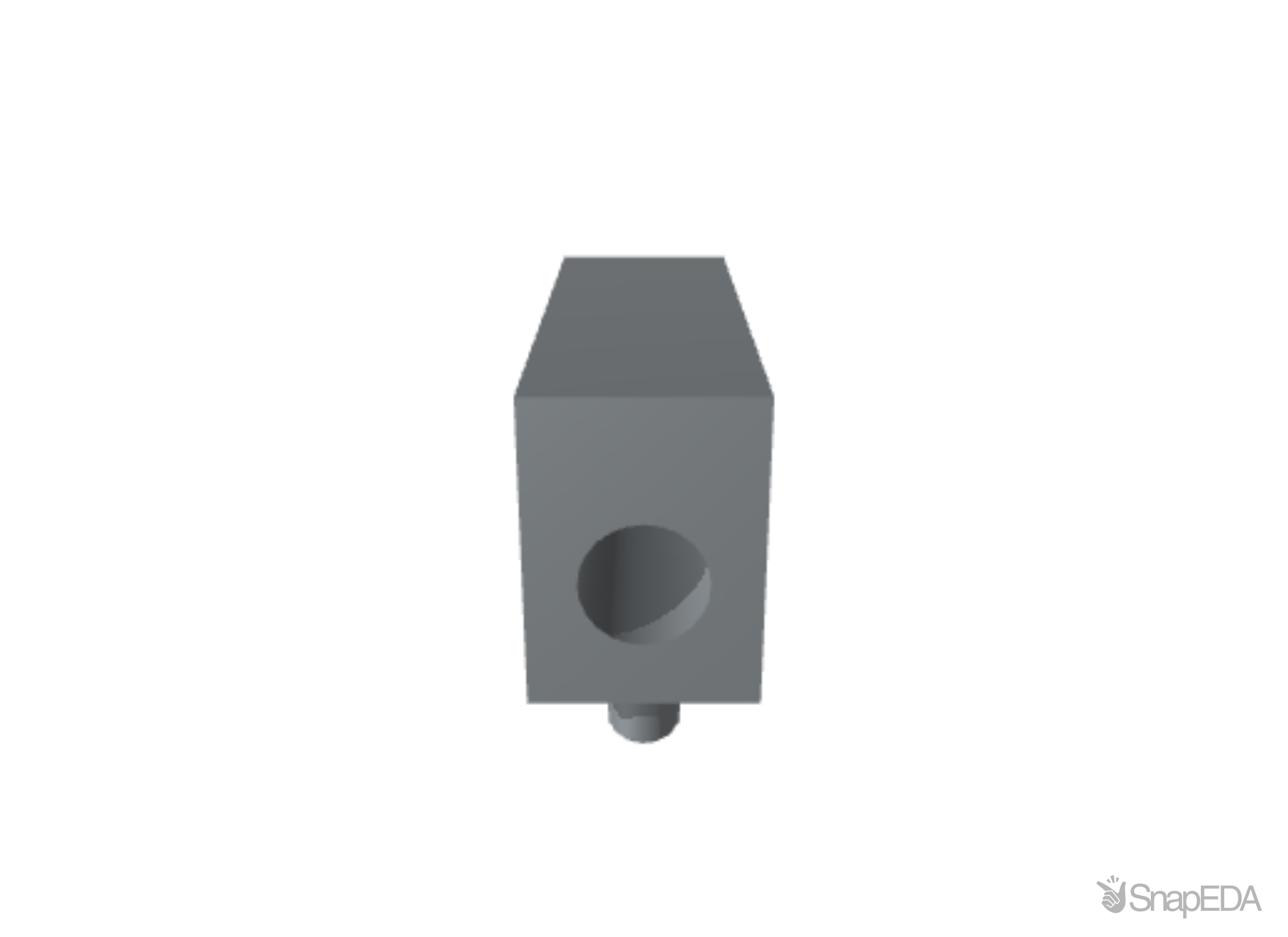

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1410297-4
| Part Name | 1-1410297-4 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Keyed |
| Contact Length | 14.06 |
| Circuit Application | Power |
| Housing Material | Zinc Alloy |
| PCB Hole Diameter | 3.96 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 48 |
| Housing Plating Material | Nickel |
| Number of Positions | 1 |
| PCB Mount Retention Type | Screw Mount |
| PCB Mount Retention | With |
| Power Contact Voltage Rating (V) | 48 |
| TE Internal Number | 1-1410297-4 |
| PCB Mount Orientation | Right Angle |
| Connector System | Board-to-Board |
| Housing Type | Receptacle |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 to 105 |
| Packaging Method | Package |
| Contact Termination Area Plating Material | Silver |
| Length | 31.88 |
| Mating Alignment | With |
| Key Orientation | 135 |
| Guide Hardware | With |
| Termination Method to Printed Circuit Board | Through Hole - Screw |
| Product Type | Guide Assembly |
| Width | 10.7 |
| Stack Height | 18.4 |
| Height | 18.4 |
| Contact Current Rating (Max) (A) | 20 |
| PCB Contact Termination Area Plating Material Finish | Semi-Bright |
| Stackable | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
