1-1414939-4

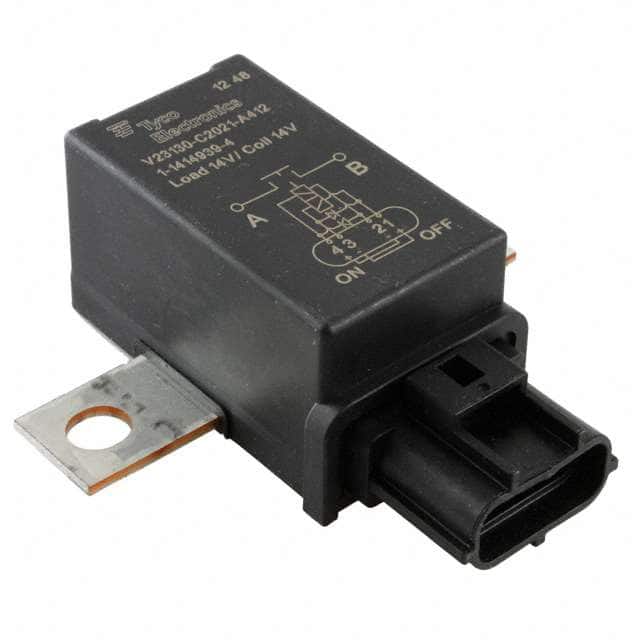

Battery Disconnect Switch, 12V, 4.7 Ohm, 6.0 V, IP54 | TE Connectivity 1-1414939-4
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1414939-4 by TE Connectivity Potter & Brumfield Relays and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

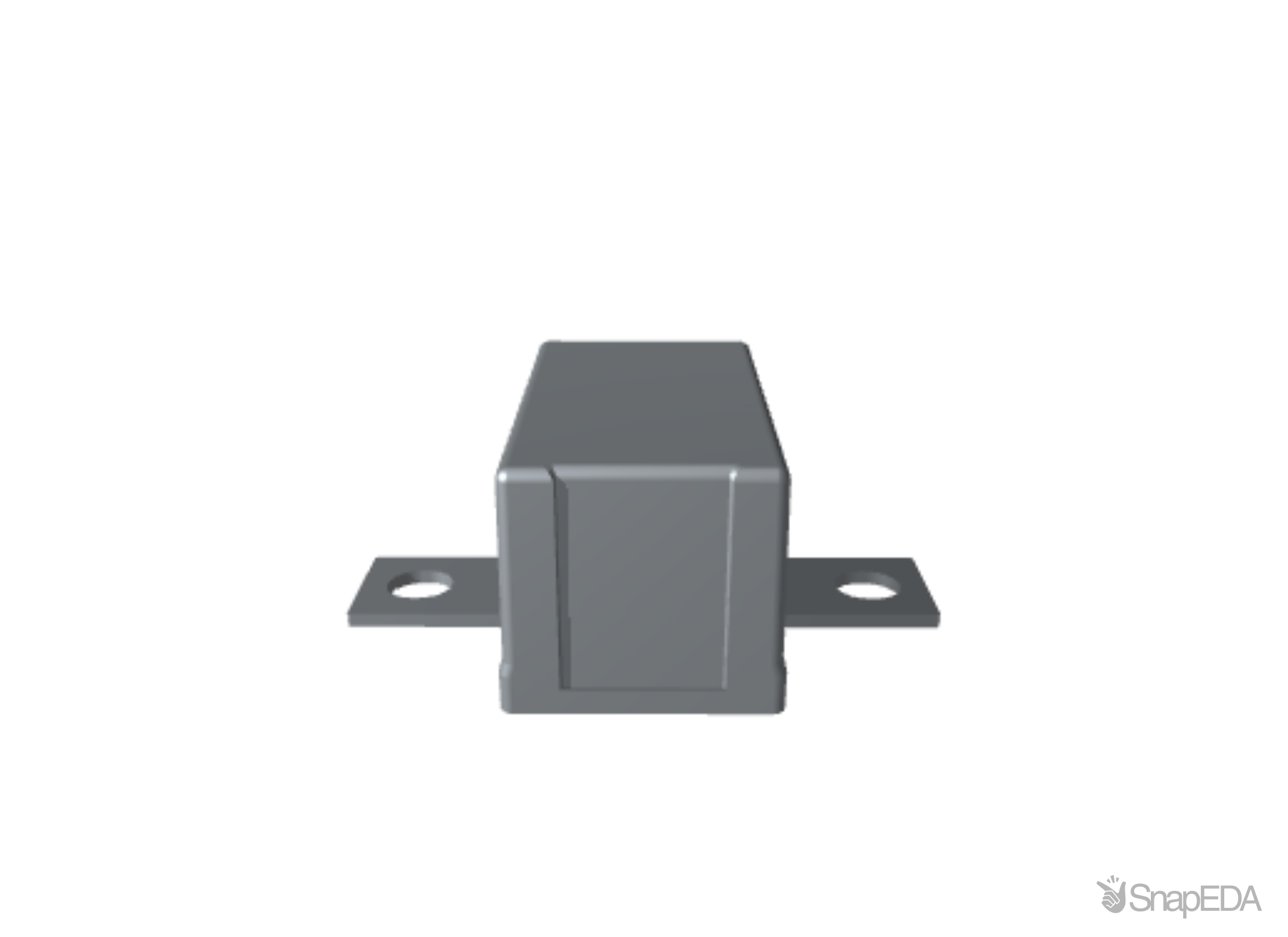

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1414939-4
| Part Name | 1-1414939-4 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Category | Relays |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Life | 150000 (Mechanical) Operations, 70000 (Electrical) Operations |
| Maximum Operating Temperature | +120 (°C) |
| Mounting Type | Flange Mount |
| Series | BDS-A |
| Switching Current (A) | 260 (A) |
| Coil Voltage (V) | 12 (V dc) |
| Length | 39 (mm) |
| Contact Configuration | SPST |
| Depth | 86 (mm) |
| Height | 33 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Distrelec Product Id | 30128941 |
| Isolation Coil To Contact | 500 (V rms) |
| Contact Material | Silver Alloy |
| Number Of Poles | 1 |
| Terminal Type | Screw |
| Coil Resistance | 4.7 (Ω) |
