1-1423364-2
W57-Xb1a4a10-5=Cktbkr, Therm, Pb, Qc.250, Bu, 1-142336
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1423364-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

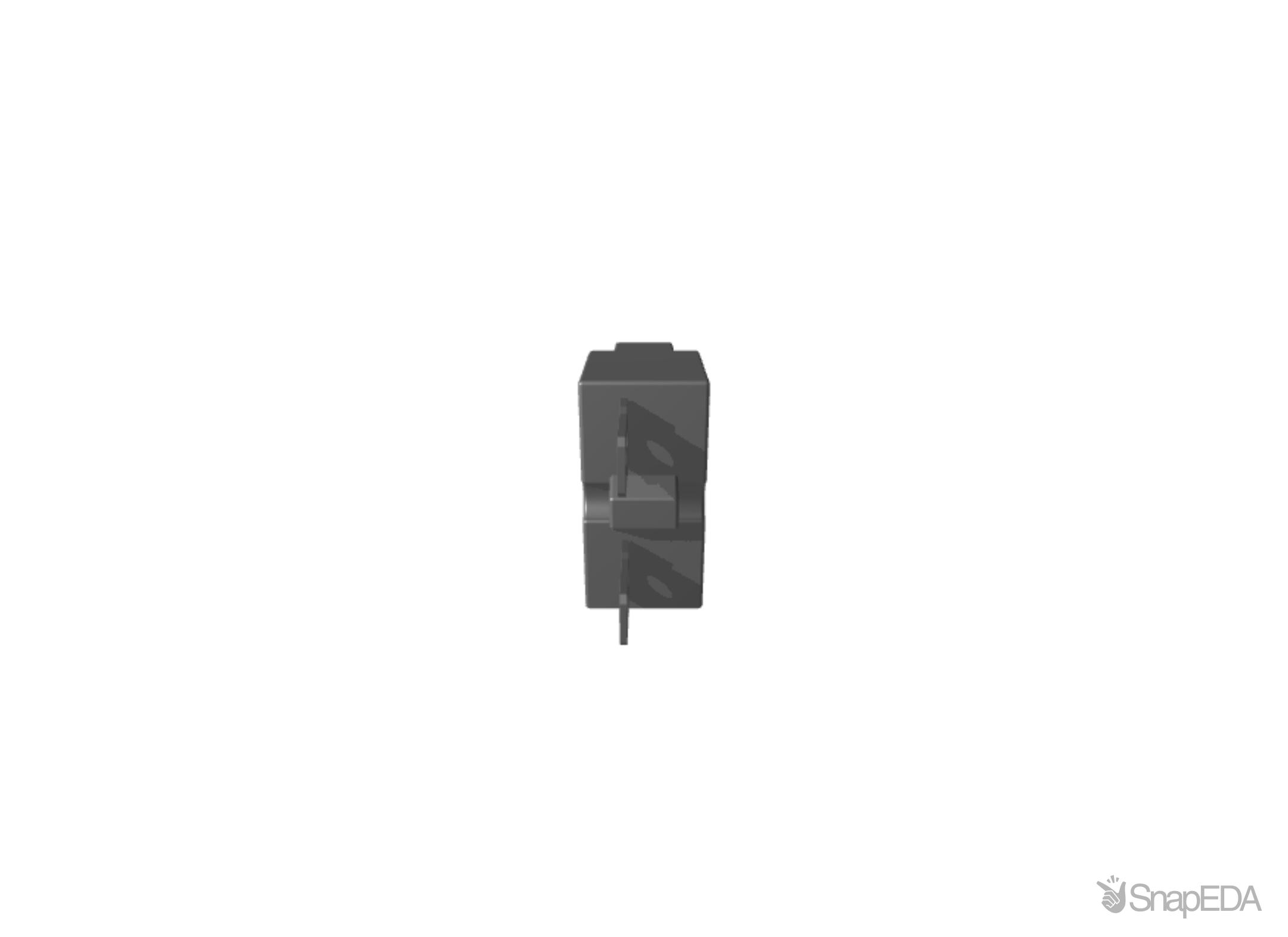

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1423364-2
| Part Name | 1-1423364-2 |
| Manufacturer | TE Connectivity |
| Mounting Bushing | 9.8 x 9.6mm Long, Plastic |
| Current Rating (A) | 5 |
| Illuminated | No |
| Pole Configuration | 1 |
| TE Internal Number | 1-1423364-2 |
| Product Type | Circuit Breaker |
| Mounting Hardware Packaging | Assembled to Bushing |
| Voltage Rating AC (V) | 250 |
| Trip Time at 200% | 4 – 40 |
| Termination Type | 6.35 [.25] Straight Quick Connect Tab |
| Panel Cutout | .441 x .394 |
| Button Color | White with Red Rate Marking (Vertical) |
| Circuit Function | Series Trip |
| Interrupt Capacity | 1000A @ 250VAC/50VDC |
| Illumination Type | No Light |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Mounting Type | Panel Mount |
| Circuit Breaker Type | Thermal |
| Mounting Options | Knurled Nut/Hex Nut |
| Actuator Type | Push to Reset |
| Earthing Switch | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1-1423364-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Buerklin |
|
|
Visit Site | |
| Conrad |
1,239
|
|
Visit Site | |
| Farnell UK |
1,116
|
|
Visit Site | |
| Mouser |
|
N/A | Visit Site | |
| Onlinecomponents |
551
|
|
Visit Site | |
| Powell Electronics |
818
|
|
Visit Site | |
| Verical |
378
|
|
Visit Site |
No issues have been reported for the 1-1423364-2
