1-1462038-7
Shrack, Relay PCB DPDT 2C/O 24VDC 2A | TE Connectivity 1-1462038-7
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1462038-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

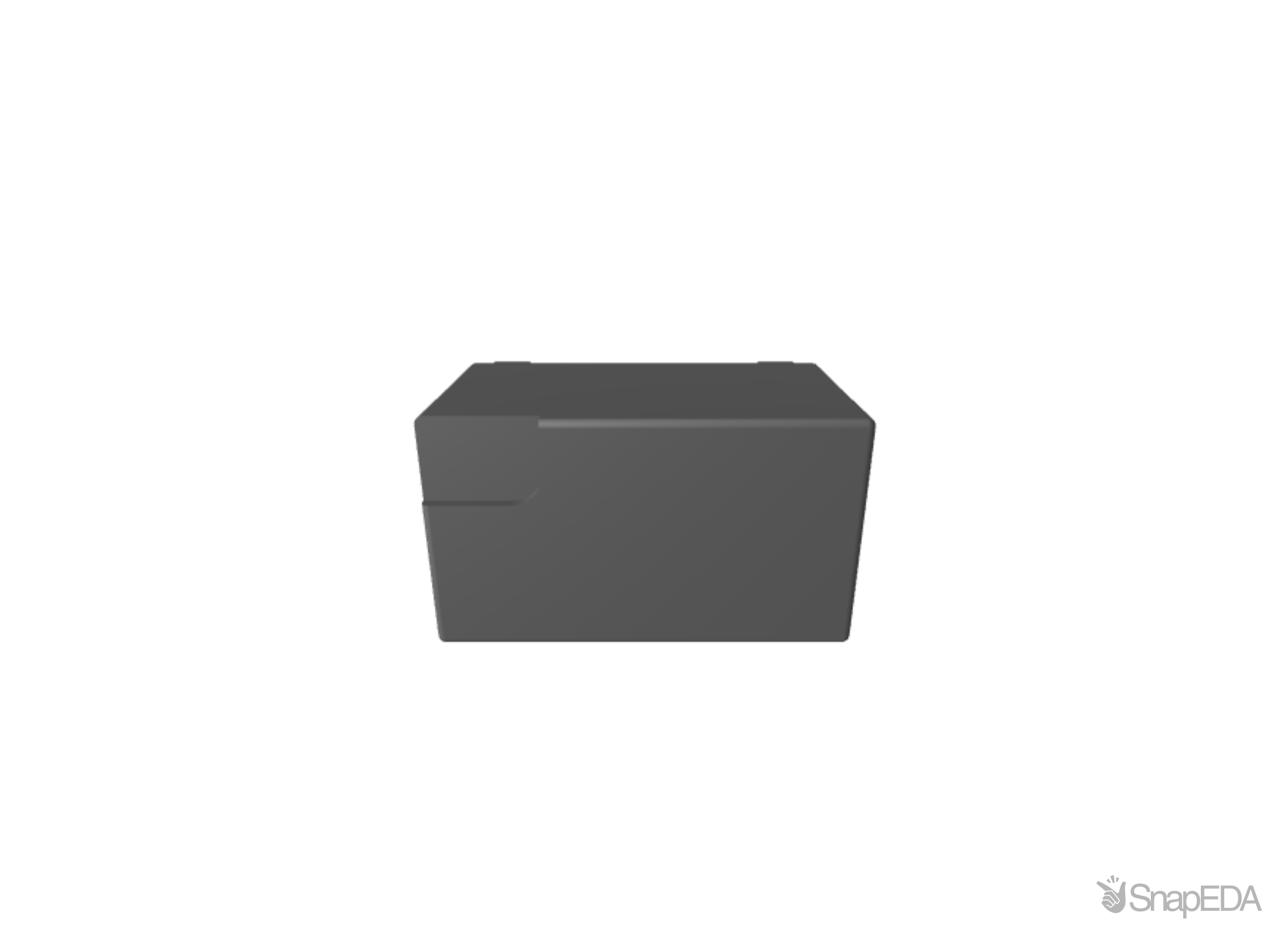

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1462038-7
| Part Name | 1-1462038-7 |
| Manufacturer | TE Connectivity |
| Dimensions (L x W x H) (Approximate) | 10 x 5.7 x 5.8 |
| Category | Relays |
| Coil Power Rating (DC) | 200 |
| Contact Limiting Making Current (A) | 2 |
| Relay Type | IM Relay |
| Height Class (Mechanical) | 0 – 6 mm |
| Width | .224 |
| Insulation Initial Resistance | 1000000 |
| Contact Limiting Continuous Current (A) | 2 |
| Contact Switching Voltage (Max) (V) | 250 |
| Coil Resistance | 2880 |
| Contact Current Class (A) | 0 – 2 A |
| Contact Arrangement | 2 Form C (2 CO) |
| Coil Type | Monostable |
| Voltage Standing Wave Ration (HF Parameter) (V) | 1.06 @ 100MHz |
| Contact Number of Poles | 2 |
| Contact Plating Material | Gold |
| TE Internal Number | 1-1462038-7 |
| Performance Type | Standard |
| Width Class (Mechanical) | 0 – 6 mm |
| Additional Features | Narrow |
| Terminal Type | PCB-THT |
| Contact Special Features | Bifurcated/Twin Contacts |
| Operating Temperature Range | -40 – 85 |
| Coil Voltage Rating (V) | 24 |
| Packaging Method | Tube |
| Insertion Loss (HF Parameter) | -.03dB @ 100MHz |
| Environmental Ambient Temperature (Max) | 85 |
| Length | 10 |
| Length Class (Mechanical) | 0 – 10 mm |
| Contact Switching Load (Min) | .1mA @ .0001V |
| Insulation Special Features | 2500V Initial Surge Withstand Voltage between Contacts & Coil |
| Insulation Initial Dielectric Between Coil/Contact Class | 1500 V – 2500 VA |
| Coil Magnetic System | Monostable, DC, Polarized |
| Actuating System | DC |
| RoHS | True |
| Isolation (HF Parameter) | -37dB @ 100MHz |
| Environmental Ambient Temperature Class | 70 – 85°C |
| Product Type | Relay |
| Mounting Type | Printed Circuit Board |
| Weight | .75 |
| Contact Limiting Short-Time Current (A) | 2 |
| Contact Current Rating (A) | 2 |
| Contact Limiting Breaking Current (A) | 2 |
| Coil Power Rating Class | 50 – 300 mW |
| Height | 5.8 |
| Insulation Initial Dielectric Between Contacts and Coil | 1800 |
| Termination Type | Through Hole |
| Insulation Initial Dielectric Between Adjacent Contacts | 1000 |
| Contact Voltage Rating (V) | 220 |
| Environmental Category of Protection | RTV |
| Insulation Initial Dielectric Between Open Contacts | 1000 |
| Contact Material | PdRu+Au |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 10 x 6 x 5.65 (mm) |
| Coil Voltage (V) | 12 (V dc) |
| Application | Automotive, Telecommunications |
| Maximum Switching Power Dc | 60 W |
| Coil Resistance | 1000 (Ω) |
| Coil Power | 140 (mW) |
| Isolation Coil To Contact | 2 (kV) |
| Maximum Operating Temperature | +85 (°C) |
| Terminal Type | Through Hole |
| Maximum Switching Voltage Dc (V) | 220 (V) |
| Operating Temperature Range | -40 → +85 (°C) |
| Latching | No |
| Contact Configuration | DPDT |
| Maximum Switching Current Dc (A) | 2 A |
| Length | 10 (mm) |
| Maximum Switching Voltage Ac (V) | 250 (V) |
| Maximum Switching Power Ac | 62.5 (VA) |
| Number Of Poles | 2 |
| Features | Bifurcated Contacts |
| Mounting Type | PCB Mount |
| Series | IM |
| Depth | 6 (mm) |
| Height | 5.65 (mm) |
| Switching Current (A) | 2 (A) |
| Minimum Operating Temperature | -40 (°C) |
| Contact Material | Gold Plated |
