1-1478963-0

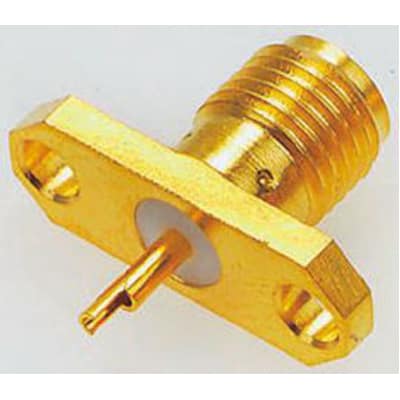

Straight 50Ohms Panel Mount SMA Connector, jack, Solder Termination Coaxial | TE Connectivity 1-1478963-0
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1478963-0 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

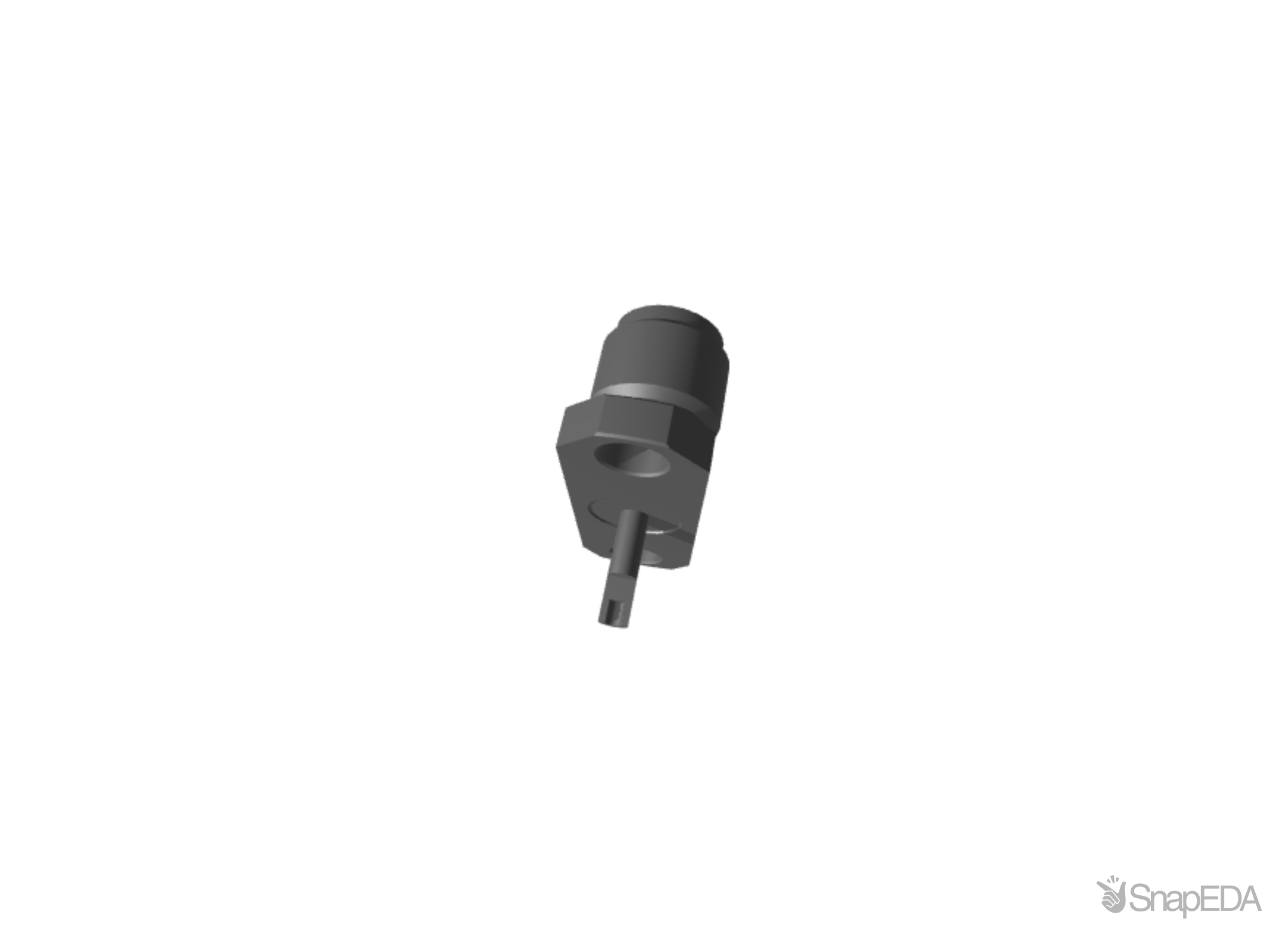

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1478963-0
| Part Name | 1-1478963-0 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| コネクタ製品タイプ | Connector Assembly |
| RF Contact Captivation Method | Solder |
| Cable Connector Orientation | Straight |
| Port Configuration | Single Port |
| Connector Product Type | Connector Assembly |
| TE Internal Number | 1-1478963-0 |
| RF Connector Style | Receptacle |
| Body Finish | Plated |
| RF Connector Center Contact Material | Beryllium Copper |
| Dielectric Material | PTFE |
| Number of Positions | 1 |
| Termination Method to Wire & Cable | Solder Terminal |
| Flange and Thread Material | Stainless Steel |
| RF Connector Coupling Mechanism | Threaded |
| Connector System | Cable-to-Panel |
| Body Plating Material | Gold |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Sealable | No |
| Connector Mounting Type | Panel |
| Product Length | 14.4 |
| RF Connector Mated Outer Diameter (Approximate) | 6.35 |
| Panel Attachment Style | Front Mount |
| Panel Cutout | 3 x 2.6 Front Mount, 1 x 6.4 + 2 x 2.6 Rear Mount |
| Operating Temperature Range | -65 – 165 |
| Packaging Method | Bag |
| RF Interface | SMA |
| Packaging Quantity | 100 |
| Detent | Without |
| Body Material | Stainless Steel |
| Operating Frequency | 26 |
| Panel Mount Feature Type | Flange |
| RF Connector Contact Configuration | Captivated Contacts |
| Grade | Professional |
| Number of Panel Mounting Holes | 2 |
| RF Connector Center Contact Plating Material | Gold |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Plating | Gold |
| Mounting Type | Flange Mount |
| Gender | Female |
| Body Orientation | Straight |
| Cable Type | Coaxial |
| Coaxial Connector Type | SMA Connector |
| Bulkhead | No |
| Contact Plating | Gold over Nickel over Copper |
| Termination Method | Solder |
| Operating Frequency | 0 to 18 (GHz) |
| Impedance | 50 (Ω) |
| Size | Standard |
| Maximum Operating Temperature | +165 (°C) |
| Contact Material | Beryllium Copper |
