1-1478979-0
SMA STR PCB SKT GSS
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1478979-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

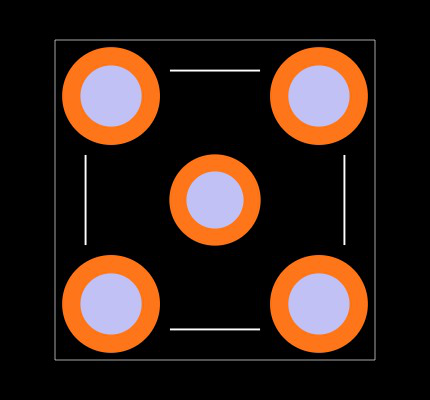

Footprint
No web preview
This Footprint is Available for

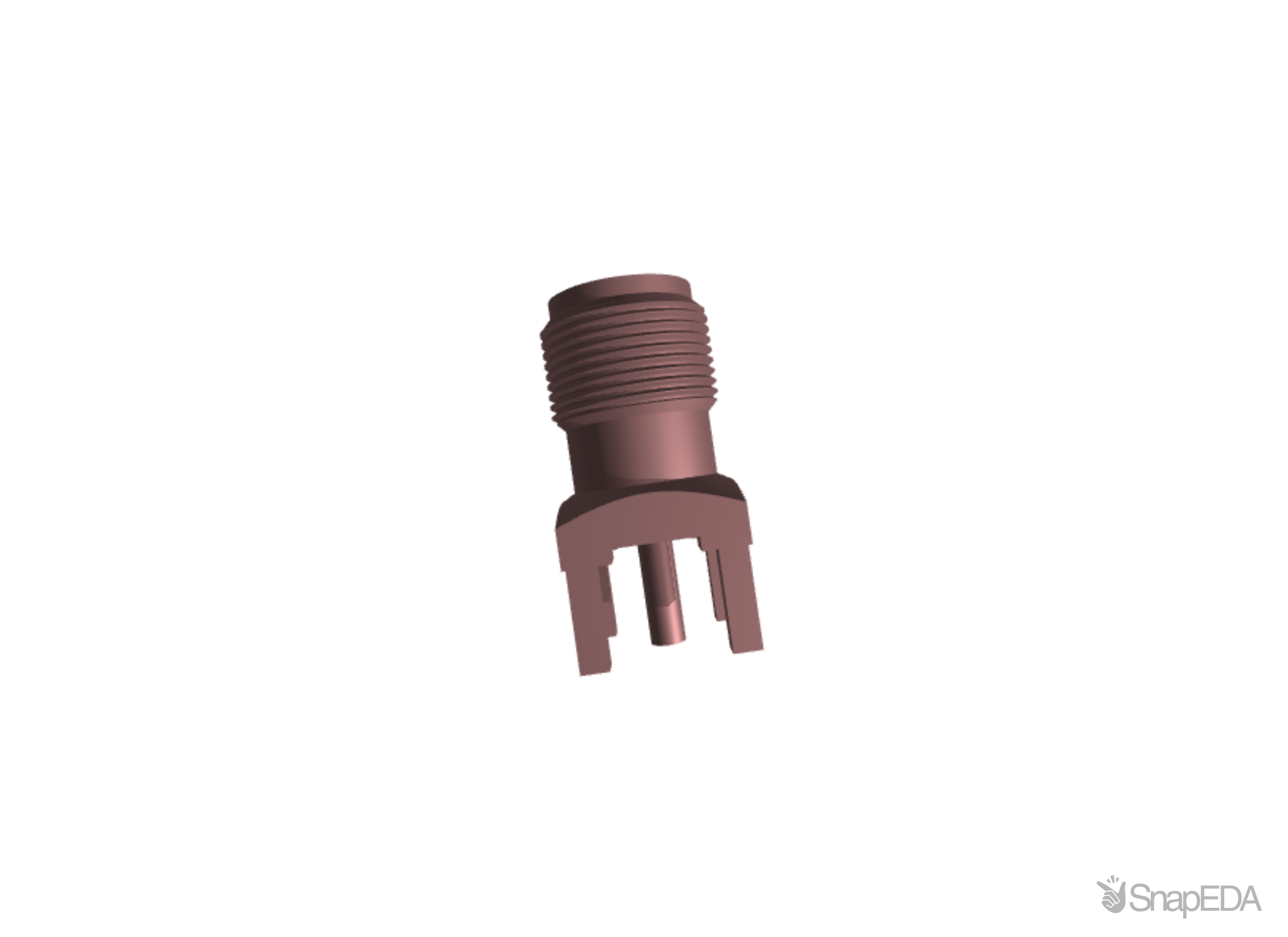

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1478979-0
| Part Name | 1-1478979-0 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| コネクタ製品タイプ | Connector Assembly |
| Port Configuration | Single Port |
| Connector Product Type | Connector Assembly |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| RF Connector Style | Receptacle |
| RF Connector Coupling Mechanism | Threaded |
| Body Finish | Plated |
| RF Connector Center Contact Material | Beryllium Copper |
| Dielectric Material | PTFE |
| Connector & Contact Terminates To | Printed Circuit Board |
| Part Category | Coax Connectors |
| TE Internal Number | 1-1478979-0 |
| PCB Tail Length | .137 |
| PCB Mount Orientation | Vertical |
| Connector System | Cable-to-Board |
| Body Plating Material | Gold |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Product Length | .512 |
| RF Connector Mated Outer Diameter (Approximate) | .25 |
| Panel Cutout | 1 x 1.4 + 4 x 1.5 |
| Operating Temperature Range | -65 – 165 |
| Packaging Method | Bag |
| RF Interface | SMA |
| Packaging Quantity | 100 |
| Detent | Without |
| Body Material | Stainless Steel |
| Number of Positions | 1 |
| Operating Frequency | 26 |
| RoHS | True |
| RF Connector Contact Configuration | Not Captivated |
| Grade | Professional |
| RF Connector Center Contact Plating Material | Gold |
| Height Above PC Board | .37 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Plating | Gold |
| Mounting Type | Through Hole |
| Gender | Female |
| Body Orientation | Straight |
| Cable Type | Coaxial |
| Contact Plating | Gold over Nickel over Copper |
| Termination Method | Solder |
| Operating Frequency | 0 → 18 (GHz) |
| Impedance | 50 (Ω) |
| Contact Material | Beryllium Copper |
| Maximum Operating Temperature | +165 °C |
| Size | Standard |
Inventory for the 1-1478979-0 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,646
|
|
Visit Site | |
|
★ Featured
|
3,195
|
|
Visit Site | |
| Arrow Europe |
997
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Farnell UK |
2,527
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Newark |
2,572
|
|
Visit Site | |
| Onlinecomponents |
40
|
|
Visit Site | |
| Powell Electronics |
26
|
|
Visit Site | |
| RS UK |
740
|
50 x $8.12
|
Visit Site | |
| Sager |
|
3,000 x $7.31
|
Visit Site | |
| TE Connectivity |
1,203
|
|
Visit Site | |
| TTI Americas |
|
|
Visit Site | |
| Verical |
40
|
5 x $25.79
|
Visit Site | |
| element14 Singapore |
2,527
|
|
Visit Site |
No issues have been reported for the 1-1478979-0
If you experienced any issues with the symbol or footprint, please report it.
