1-1564544-1
2 Rectangular Connectors - Housings Plug Black 0.354" (9.00mm)
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1564544-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

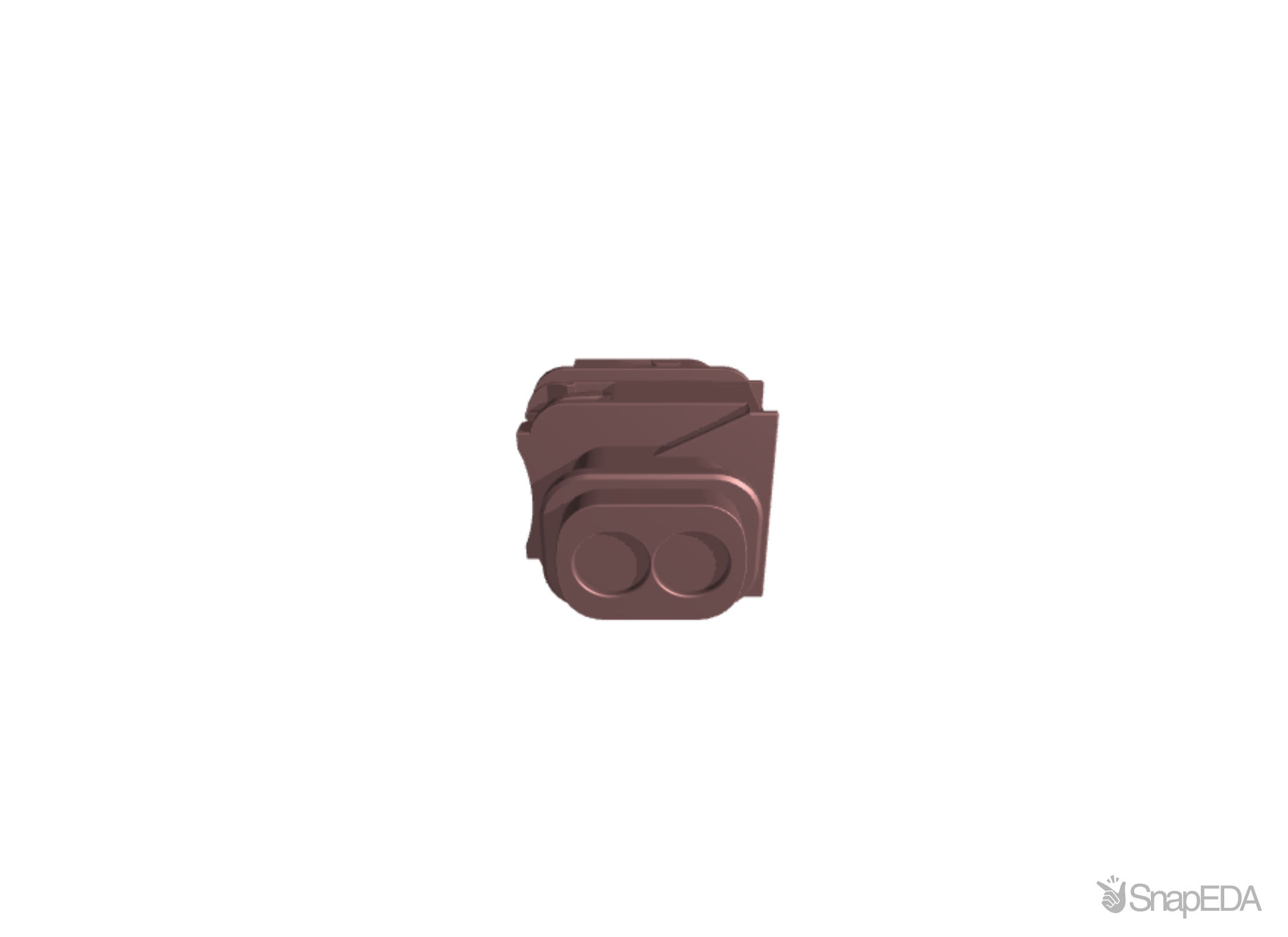

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1564544-1
| Part Name | 1-1564544-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 9 |
| Circuit Application | Signal |
| Mounting Feature | Without |
| UL Flammability Rating | UL 94V-0 |
| Width | 50.6 |
| Operating Voltage (V) | 60 |
| Connector Position Assurance Capable | No |
| Connector Style | Housing for male terminals |
| Number of Positions | 2 |
| Operating Temperature Range | -40 – 284 |
| TE Internal Number | 1-1564544-1 |
| Connector System | Wire-to-Wire |
| Number of Rows | 1 |
| Sealable | Yes |
| Terminal Position Assurance | Yes |
| Nominal Voltage Architecture (V) | 42 |
| Polarized | Yes |
| Hybrid Connector | No |
| Degree of Protection | IP67 |
| Packaging Method | Carton |
| Packaging Quantity | 320 |
| Body Material | PBT GF |
| Cable Exit Angle | 180° |
| Serviceable | Yes |
| Mating Tab Width | 5.8 |
| Strain Relief | Add By Accessory |
| Color | Black |
| Length | 32.6 |
| Height | 27 |
| Primary Locking Feature | On the Terminal |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 40 (A) |
| Mounting Type | Panel Mount |
| Gender | Male |
| Body Orientation | Right Angle |
| Series | AMP, Heavy Duty Sealed Connector Series |
| Type | Tab |
