1-1565036-6
EP CONN.HDR ASSY 6/7POS-W/O NO.6
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1565036-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

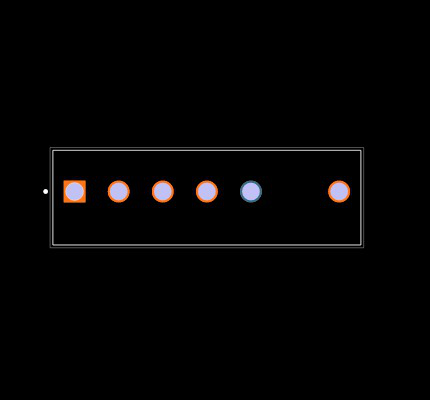

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1565036-6
| Part Name | 1-1565036-6 |
| Manufacturer | TE Connectivity / AMP |
| Centerline (Pitch) | .156 |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | PBT GF |
| Operating Voltage (V) | 250 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Contact Design | Square Post |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .063 |
| Termination Post & Tail Length | 3.7 |
| Contact Current Rating (Max) (A) | 8 |
| Mating Post Length | .303 |
| TE Internal Number | 1-1565036-6 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Connector Height | .3346 |
| Number of Rows | 1 |
| Housing Color | Natural |
| Connector Width | 10.7 |
| Contact Base Material | Brass |
| PCB Contact Termination Area Plating Material Thickness | .8 |
| Contact Transmits (Typical) | Power |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector Length | 1.0889 |
| Header Type | Unshrouded |
| Operating Temperature Range | -25 – 105 |
| Packaging Method | Bag |
| Contact Layout | Inline |
| Number of Positions | 6 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| Life Cycle Status | Obsolete |
| Mating Retention | Without |
| Strain Relief | Without |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Mount Alignment | Without |
| Mating Retention Type | Latch |
| Contact Mating Area Plating Material Thickness | .8 |
| Panel Mount Feature | Without |
| PCB Connector Assembly Type | PCB Mount Header |
| Contact Retention | Without |
| Connector Contact Load Condition | Selectively Loaded |
| Contact Type | Pin |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Sealable | No |
