1-1623782-1
Resistor, Thru Hole, High Power, SQMR533KJ, SQM Series, Metal Film, 5W, 33k Ohm, 5% Tol, 25x13x9mm
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1623782-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

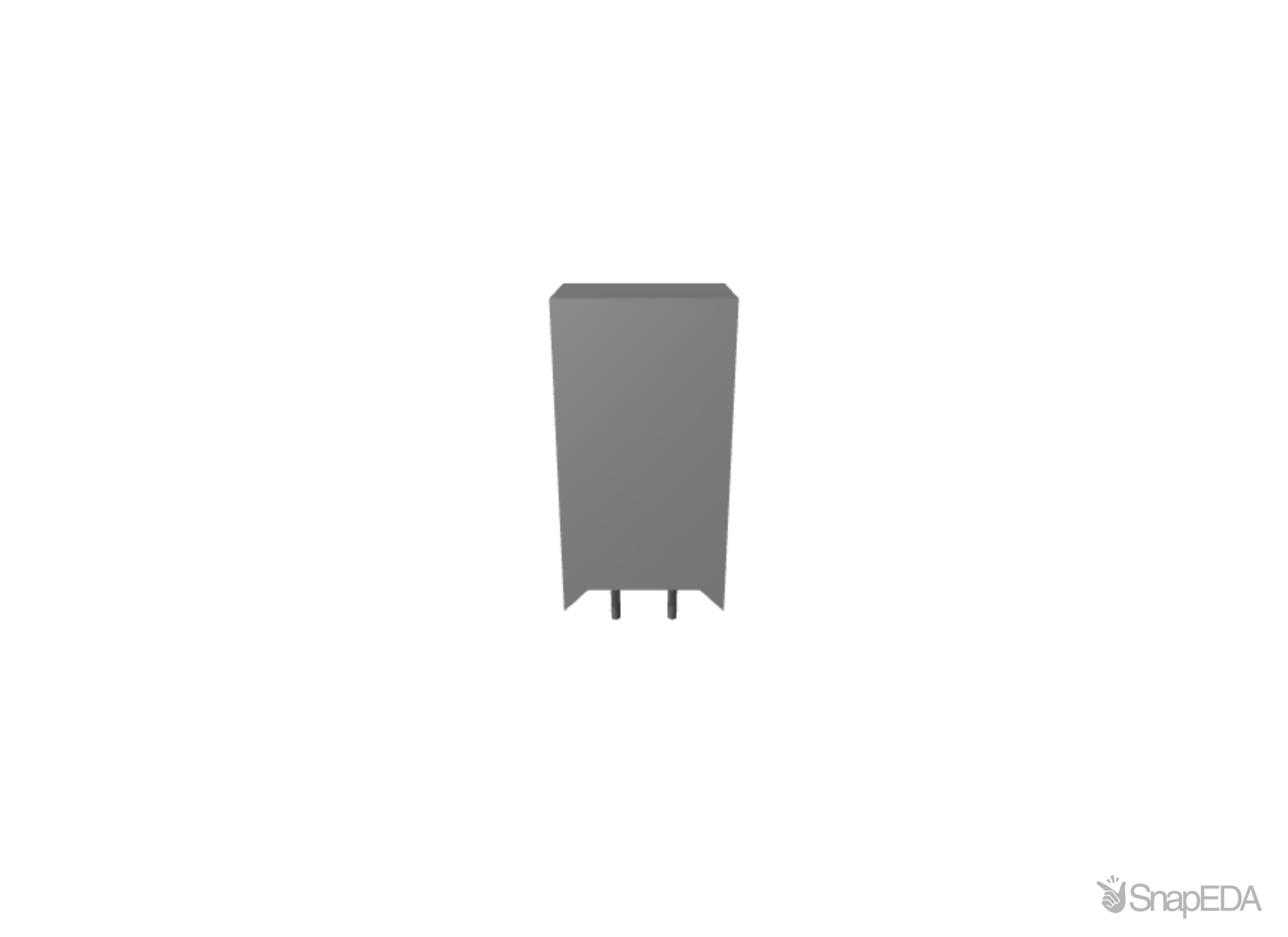

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1623782-1
| Part Name | 1-1623782-1 |
| Manufacturer | TE Connectivity |
| Element Material | Metal Oxide |
| Mount Style | Radial-Leaded |
| Dimensions | 25 x 13 x 9 |
| Operating Temperature Range | -55 – 250 |
| Number of Terminations | 2 |
| Resistor Type | Power Resistor |
| Packaging Method | Loose Piece - Box |
| TE Internal Number | 1-1623782-1 |
| Temperature Coefficient | ±300 |
| Resistance | 33K |
| Number of Resistors | 1 |
| Element Type | Wirewound |
| Termination Type | Tinned Copper Leads |
| Power Rating | 5 |
| Product Type | Fixed Resistor |
| Tolerance | 5% |
| Resistance Class | 1kΩ – 1MΩ |
| RoHS | True |
