1-166774-0
Conn Card Edge SKT 10 POS 2.54mm Solder ST Thru-Hole Tube
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-166774-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

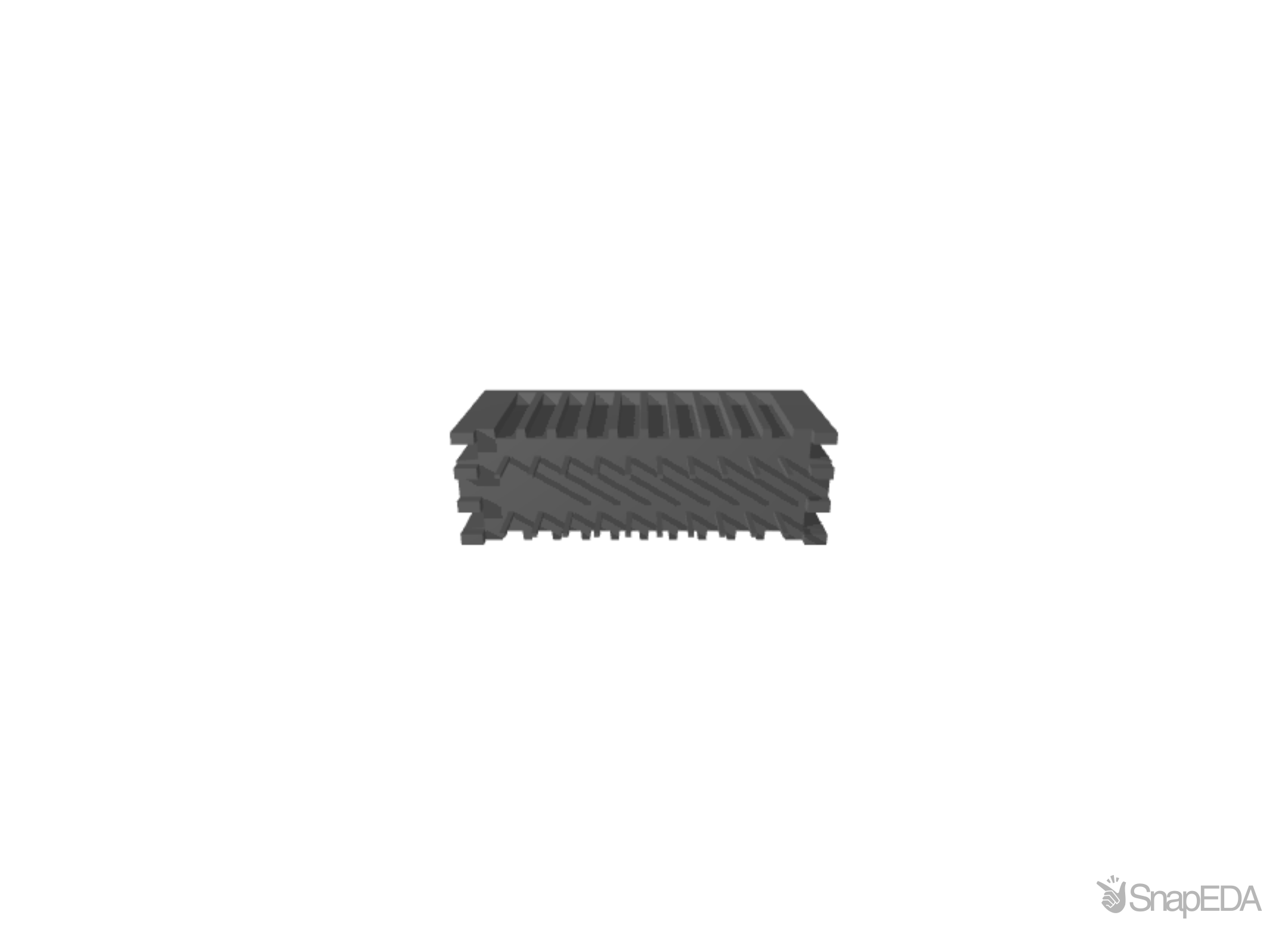

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-166774-0
| Part Name | 1-166774-0 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Zeilenanzahl | 2 |
| Centerline (Pitch) | .1 |
| Circuit Application | Signal |
| Housing Entry Configuration | Both Ends Closed |
| Housing Material | Thermoplastic Polyester -20% GF |
| Connector Style | Receptacle |
| Contact Mating Area Plating Material Thickness | 3 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .063 |
| Termination Post & Tail Length | .13 |
| Panel Mount Feature | Without |
| TE Internal Number | 1-166774-0 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| PCB Contact Termination Area Plating Material Thickness | 3 |
| Contact Underplating Material | Nickel |
| Contact Base Material | Phosphor Bronze |
| Housing Color | Green |
| Mating Retention | Without |
| Packaging Method | Tube |
| Card Slot Depth | 7.9 |
| Number of Positions | 10 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| Packaging Quantity | 17 |
| RoHS | True |
| Life Cycle Status | Factory Special Order |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| 端子の下地めっきの材料 | Nickel |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Height | .53 |
| Row-to-Row Spacing | 5.08 |
| Contact Retention | Without |
| Connector Contact Load Condition | Fully Loaded |
| Connector Profile | Standard |
| Contact Type | Socket |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1-166774-0 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
1,938 x $3.91
|
Visit Site |
No issues have been reported for the 1-166774-0
If you experienced any issues with the symbol or footprint, please report it.
