1-1718093-1

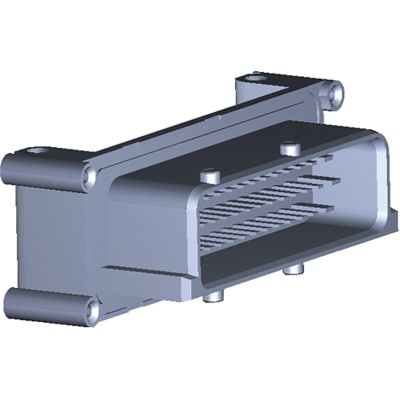

Timer Series, 5mm Pitch 42 Way 2 Row Straight PCB Header | TE Connectivity 1-1718093-1
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1718093-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

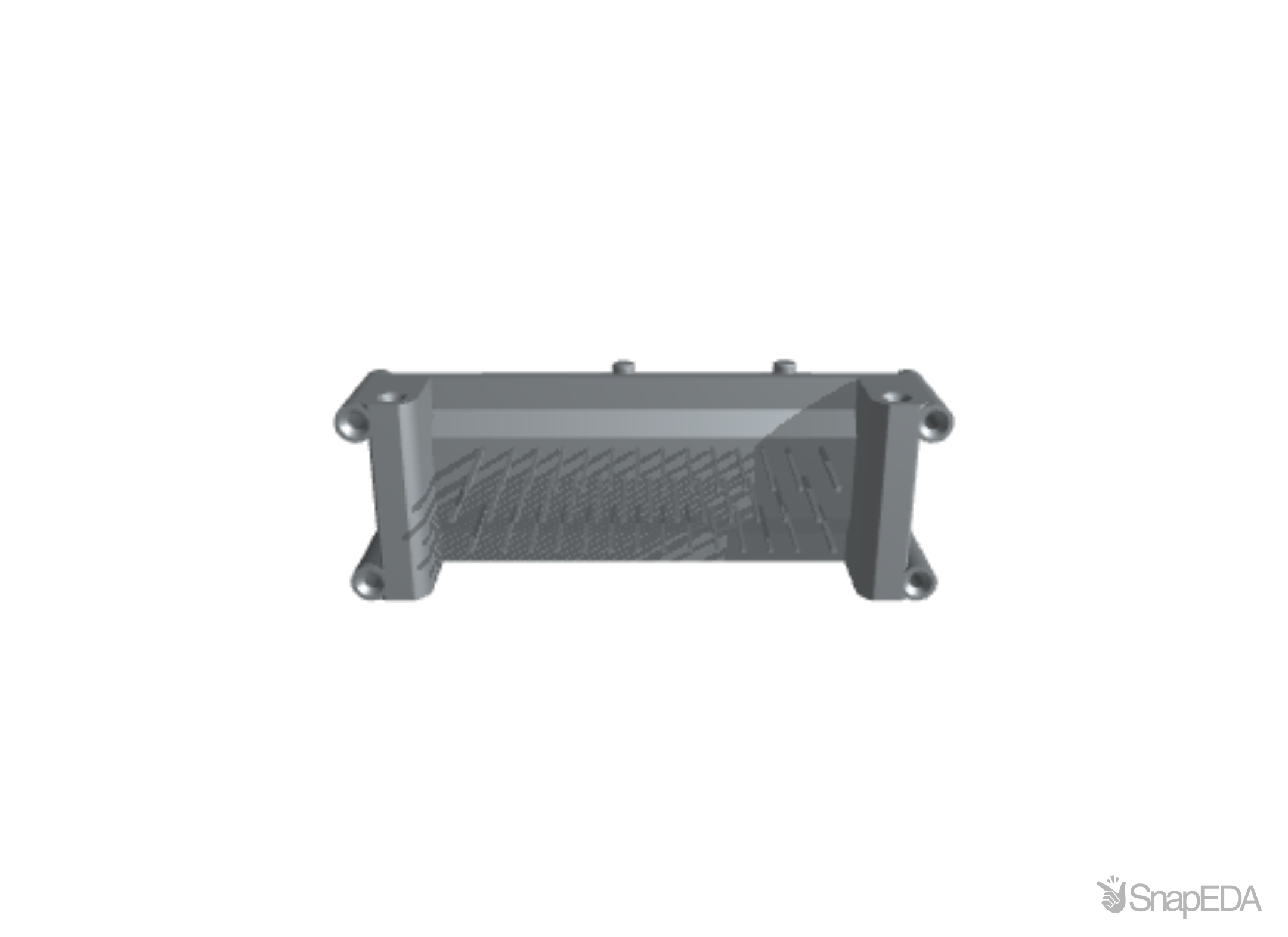

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1718093-1
| Part Name | 1-1718093-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .157 |
| Circuit Application | Signal |
| Width | 37.1 |
| Number of Positions | 42 |
| PCB Mount Retention | Without |
| Tab Thickness | .023 |
| Connector System | Wire-to-Board |
| TE Internal Number | 1-1718093-1 |
| PCB Mount Alignment | With |
| Number of Rows | 3 |
| Locking Interface | Without |
| Number of Signal Positions | 42 |
| Sealable | No |
| Number of Sections | 1 |
| Mounting Orientation | Vertical/180 |
| Shielded | No |
| Mounting Holes | Without |
| Termination Method | Through Hole - Solder |
| Packaging Quantity | 16 |
| Length | 2.88 |
| RoHS | True |
| Tab Width | 1.6 |
| Color | Black |
| Hybrid Header | Yes |
| Profile Height from PCB | 32.5 |
| Packaging Type | Box |
| Panel Mount Feature | Without |
| Interface Plating | Tin (Sn) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Mounting Type | Through Hole |
| Series | Timer |
| Number Of Rows | 2 |
| Termination Method | Solder |
| Number Of Contacts | 42 |
| Contact Material | Bronze |
No issues have been reported for the 1-1718093-1
