1-1734035-1
USB Connector, Copper Alloy, Half-Bright Tin over Copper, Thermoplastic | TE Connectivity 1-1734035-1
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1734035-1 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

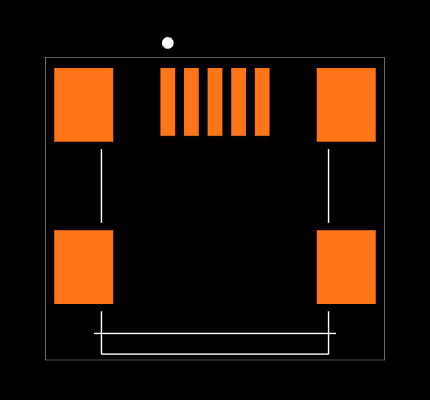

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1734035-1
| Part Name | 1-1734035-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Pick & Place Capable | No |
| Centerline (Pitch) | .8 |
| USB Version | 2.0 |
| Circuit Application | Power & Signal |
| USB Type | B |
| Soldering Temperature (Max) | 260 |
| Housing Material | PA 9T GF |
| Contact Termination Type | Surface Mount |
| Integral Locking Latch | Without |
| PCB Connector Seating | Flush |
| Connector Style | Receptacle |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | SMT Hold-Down |
| Locking Feature | With |
| PCB Thickness (Recommended) | 1.57 |
| Operating Temperature Range | -40 – 85 |
| TE Internal Number | 1-1734035-1 |
| Number of Positions | 5 |
| Connector System | Cable-to-Board |
| Contact Mating Area Plating Thickness | .76 |
| Housing Color | Black |
| Offset | 0 |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Moisture Sensitivity Level | 1 |
| Industry Standard | USB 2.0 |
| Mounting Location | Top |
| Locating Posts | Without |
| Termination Method | Solder |
| Packaging Method | Tray |
| Tail Length | 1.15 |
| Packaging Quantity | 150 |
| Number of Ports | 1 |
| Halogen Free | No |
| Contact Mating Area Plating Material | Gold Flash over Palladium Nickel |
| Termination Method to Printed Circuit Board | Reflow Solder |
| LED | Without |
| Orientation | Right Angle |
| Shell Plating Material | Nickel |
| UL Flammability Rating | UL 94V-0 |
| Contact Current Rating (Max) (A) | 1 |
| Mating Cycles (Max) | 5000 |
| Size | Mini |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
