1-1734741-8
Socket Receptacle Connector .5 FPC VT ZIF Type-B 18 CONT 18 POS
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1734741-8 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

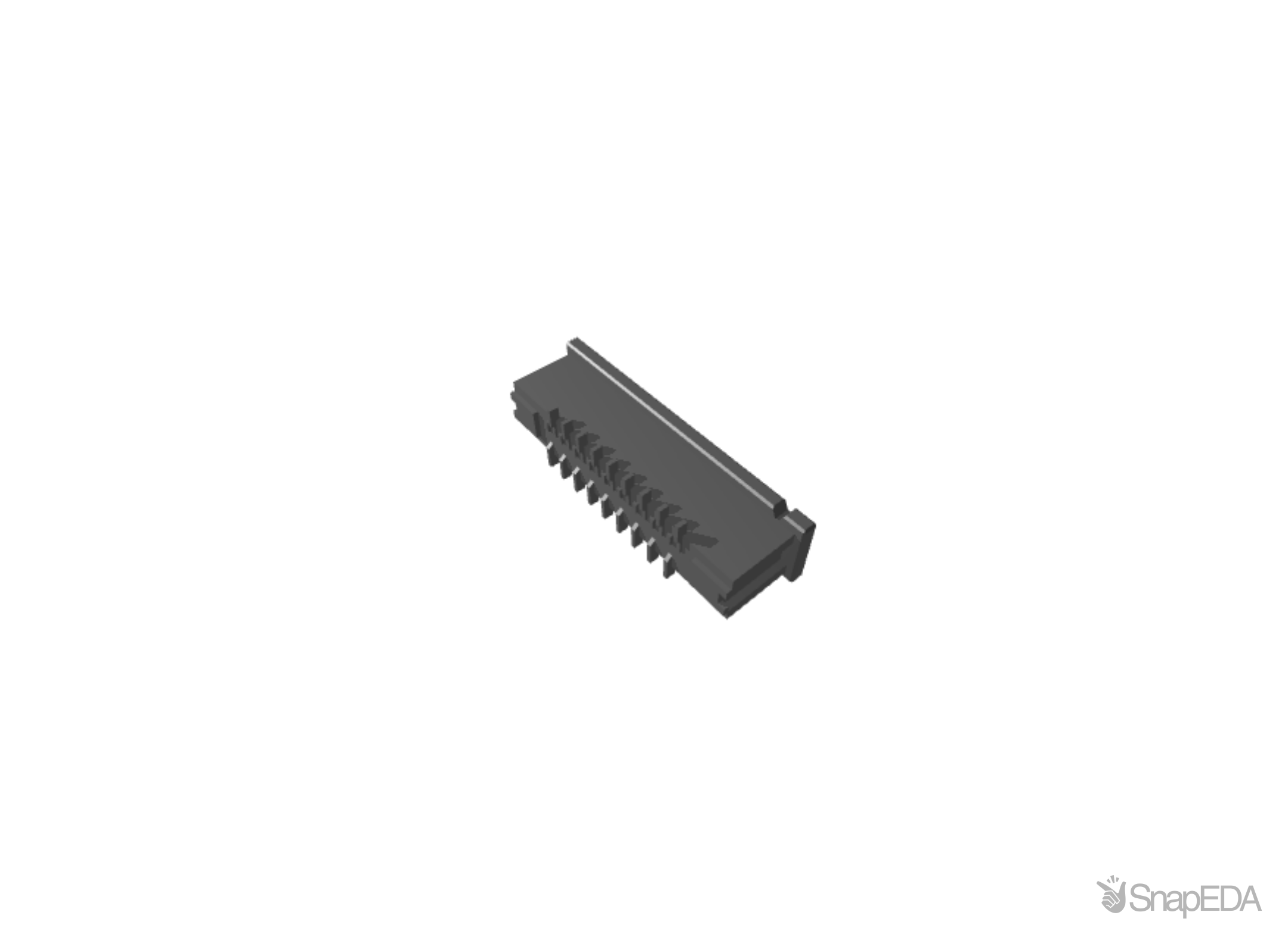

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1734741-8
| Part Name | 1-1734741-8 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .5 |
| Circuit Application | Signal |
| Housing Material | PA 9T GF |
| Wire/Cable Type | FPC/FFC |
| Operating Voltage (V) | 50 |
| Circuit Identification Feature | Without |
| Connector Style | Receptacle |
| Connector & Contact Terminates To | Flexible Printed Circuit (FPC) |
| Contact Design | Single Beam |
| PCB Mount Retention | With |
| TE Internal Number | 1-1734741-8 |
| PCB Mount Orientation | Vertical |
| Connector System | Flex-to-Board |
| Connector Height | 4.15 |
| Number of Rows | 1 |
| Housing Color | Black |
| Connector Width | 3.8 |
| Flex Cable Thickness | .3 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Contact Transmits (Typical) | Signal |
| Connector Length | .5787 |
| Insertion Force Type | Zero Insertion Force (ZIF) |
| Operating Temperature Range | -4 – 185 |
| Shielded | No |
| Packaging Method | Tape |
| Connector Type | Connector Assembly |
| Packaging Quantity | 1000 |
| Contact Layout | Staggered Type B |
| Contact Mating Location | Bottom |
| Contact Termination Area Plating Material | Gold |
| Number of Positions | 18 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Life Cycle Status | End of Life |
| Termination Method to Printed Circuit Board | Surface Mount |
| Contact Base Material | Phosphor Bronze |
| PCB Mount Alignment | Without |
| Contact Mating Area Plating Material Thickness | 120 |
| Contact Current Rating (Max) (A) | .5 |
| Contact Type | Socket |
| Contact Termination Area Plating Thickness | 120 |
| FPC Actuator Type | Stuffer (Plunger Style) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
