1-1735919-4
AMPMODU 2MM BA HDR,R/A,2X7P,Au-Sn,HT,T&R
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1735919-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

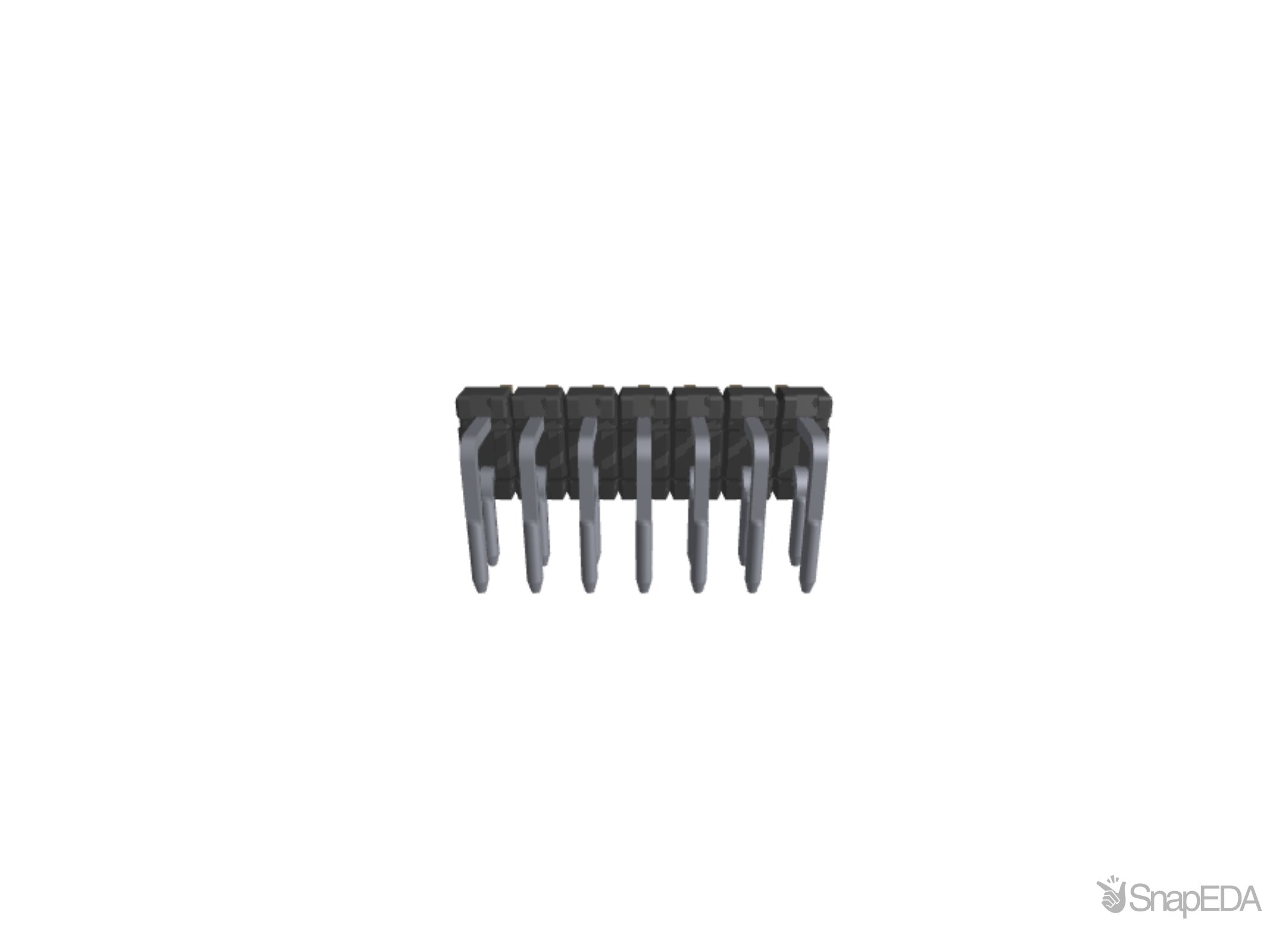

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1735919-4
| Part Name | 1-1735919-4 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 1.6 |
| Termination Post & Tail Length | .102 |
| Mating Post Length | .158 |
| TE Internal Number | 1-1735919-4 |
| PCB Mount Orientation | Right Angle |
| Connector Height | 4.2 |
| Number of Rows | 2 |
| Housing Color | Black |
| Header Type | Breakaway |
| Contact Base Material | Copper Alloy |
| Contact Shape | Round |
| PCB Contact Termination Area Plating Material Thickness | 39.37 |
| Assembly Process Feature | Pick and Place Cover |
| Packaging Method | Tape Mounted on Reel |
| Number of Positions | 14 |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Housing Material | High Temperature Thermoplastic |
| Post Size | .02 |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 8 |
| Row-to-Row Spacing | .079 |
| PCB Connector Assembly Type | PCB Mount Header |
| Connector Contact Load Condition | Fully Loaded |
| PCB Contact Termination Area Plating Material Finish | Matte |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Position Locations Omitted | None |
