1-1743284-2
Conn Power PL 8 POS 2.54mm Solder RA Thru-Hole 8 Terminal 1 Port Automotive Loose
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1743284-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

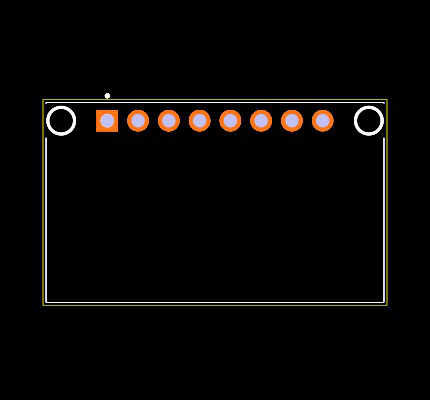

Footprint
No web preview
This Footprint is Available for

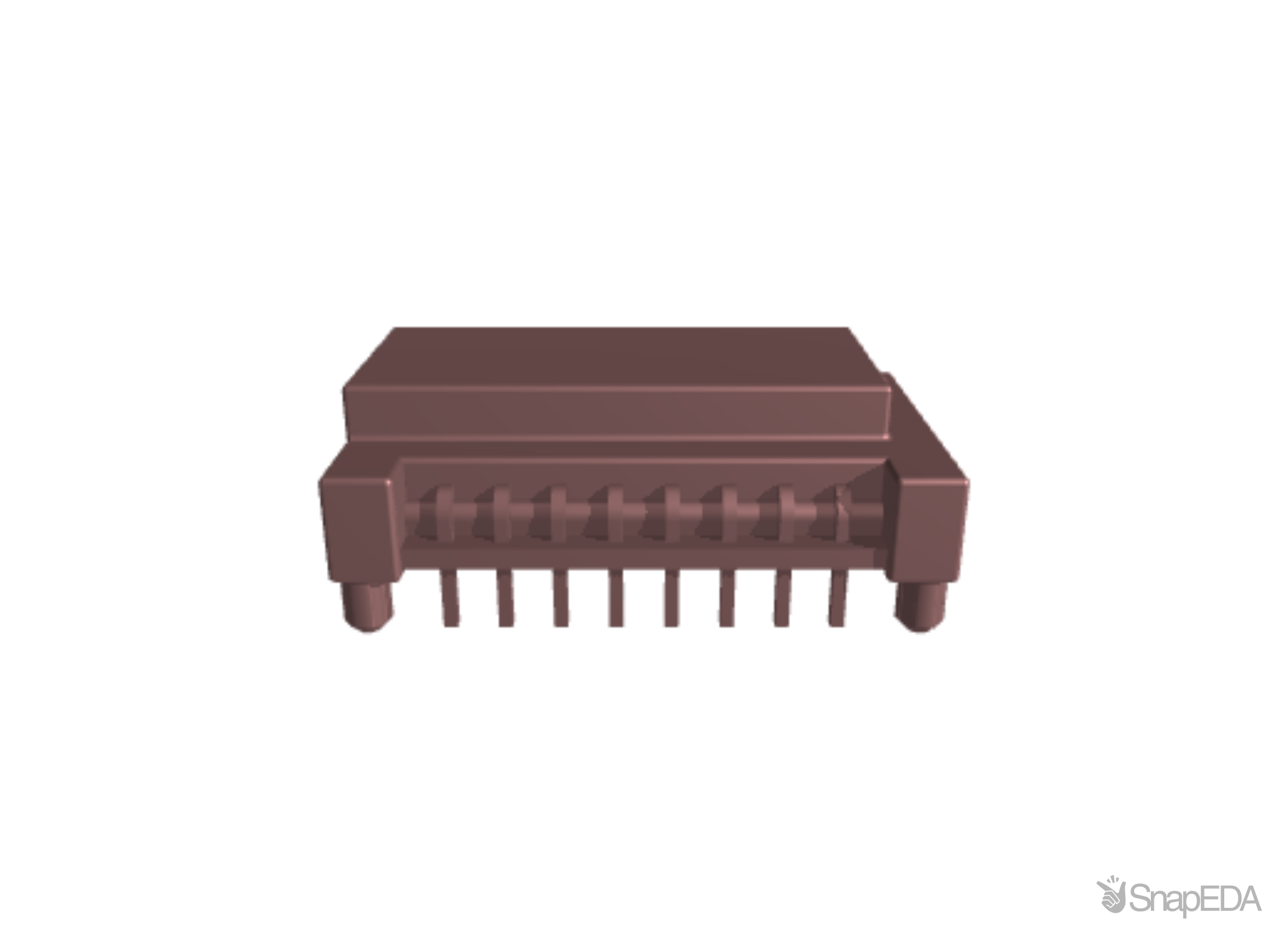

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1743284-2
| Part Name | 1-1743284-2 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .1 |
| Circuit Application | Signal |
| Width | .649 |
| Number of Positions | 8 |
| PCB Mount Retention | Without |
| Tab Thickness | .63 |
| TE Internal Number | 1-1743284-2 |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Locking Interface | With |
| Number of Signal Positions | 8 |
| Sealable | No |
| Number of Sections | 1 |
| Mounting Orientation | Horizontal/90 |
| Shielded | No |
| Mounting Holes | Without |
| Termination Method | Through Hole - Solder |
| Packaging Quantity | 17 |
| Length | 27.9 |
| RoHS | True |
| Tab Width | .63 |
| Color | Black |
| Hybrid Header | No |
| PCB Mount Alignment | With |
| Profile Height from PCB | 7.6 |
| Packaging Type | Tube |
| Panel Mount Feature | Without |
| Interface Plating | Tin (Sn) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1-1743284-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,205
|
|
Visit Site | |
|
★ Featured
|
1,080
|
|
Visit Site | |
|
★ Featured
|
4,488
|
231 x $1.30
|
Visit Site | |
| Verical |
748
|
|
Visit Site |
No issues have been reported for the 1-1743284-2
If you experienced any issues with the symbol or footprint, please report it.
