1-178136-3
Dynamic 3000,5.08mm Pitch 3 -Way, Straight PCB Header,Solder Term,12A | TE Connectivity 1-178136-3
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-178136-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

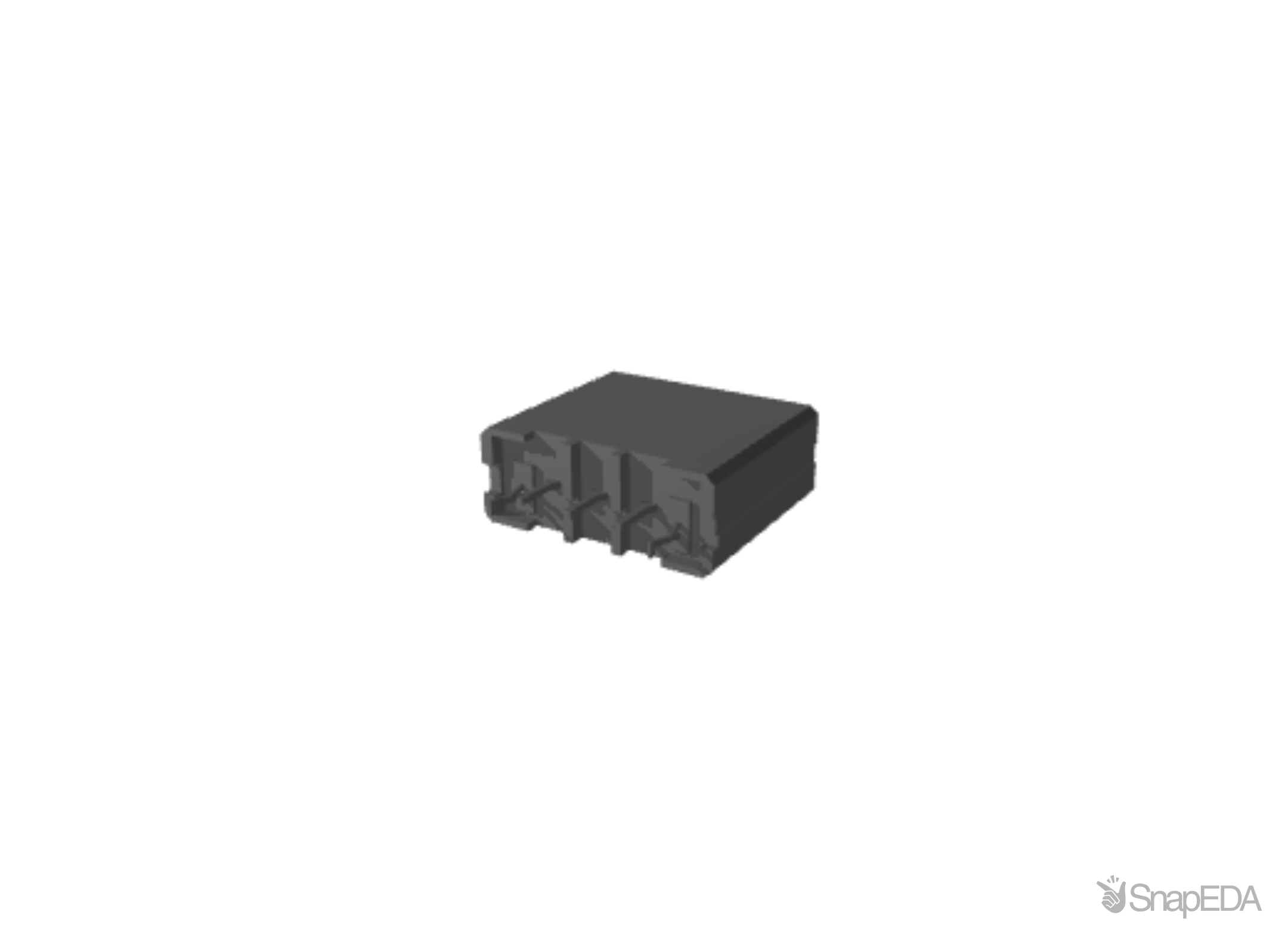

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-178136-3
| Part Name | 1-178136-3 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Keyed |
| Centerline (Pitch) | .2 |
| Keying | X |
| Tail Plating Thickness | 2 |
| Circuit Application | Power & Signal |
| Contact Style | Straight |
| Mating Retention Type | Latch |
| Housing Material | Polyester GF |
| Width | 9.35 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 600 |
| For Use With | Receptacle Housing |
| Connector Style | Plug |
| PCB Mount Orientation | Vertical |
| Number of Positions | 3 |
| PCB Mount Retention Type | Retention Leg |
| PCB Mount Retention | With |
| Contact Layout | Inline |
| VDE Tested | No |
| UL Voltage Rating (V) | 250 |
| Contact Current Rating (Max) (A) | 8 |
| Contact Plating Material | Gold |
| TE Internal Number | 1-178136-3 |
| UL Rating | Recognized |
| Connector System | Wire-to-Board |
| Tail Plating Material | Tin |
| Header Type | Shrouded |
| Product Type | Connector |
| Multiple Contact Types | Without |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| UL File Number | E28476 |
| Operating Temperature Range | -67 to 221 |
| Shielded | No |
| Number of Rows | 1 |
| Packaging Method | Tube |
| Connector Type | Header |
| Shunts/Shorting Bars | Without |
| Tail Length | .149 |
| Agency/Standard | UL |
| Halogen Free | Yes |
| PCB Thickness (Recommended) | 1.6 |
| Length | 24.16 |
| Packaging Quantity | 20 |
| CSA Rating | Certified |
| Insertion Force | High |
| RoHS | True |
| Mating Retention | With |
| Strain Relief | Without |
| Assembly Integration Feature | Without |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Height | 21.6 |
| ???? | Black |
| CSA File Number | LR7189 |
| Contact Retention | Without |
| Connector Mounting Type | Board Mount |
| Contact Type | Tab |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Preloaded | Yes |
| Sealable | No |
| Mating Alignment | With |
