1-1825006-9
Switch DIP OFF ON SPST 10 Recessed Slide 0.025A 24VDC Gull Wing 2.54mm SMD Tube
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1825006-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

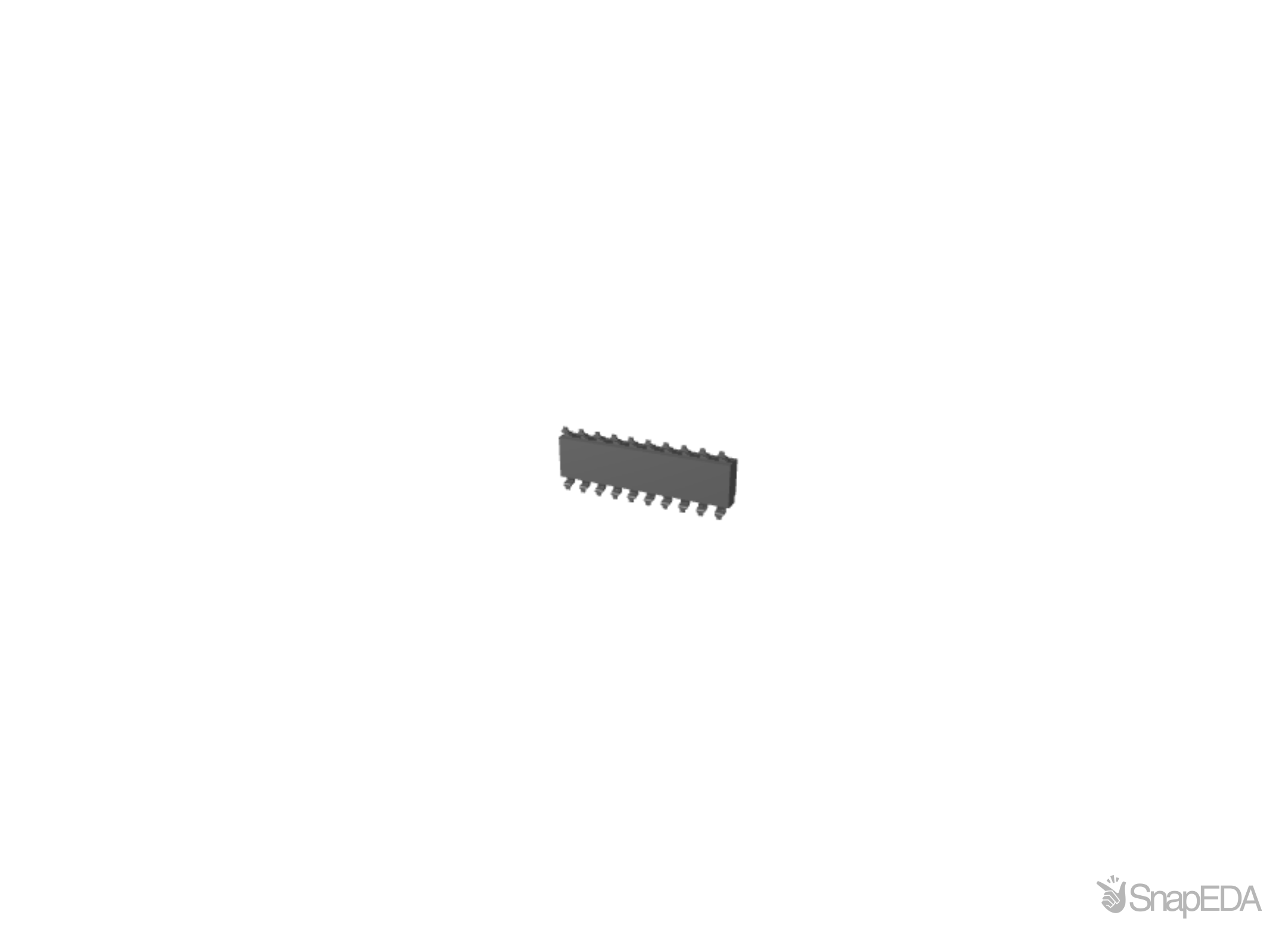

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1825006-9
| Part Name | 1-1825006-9 |
| Manufacturer | TE Connectivity |
| Low Profile | Yes |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Sealed | Yes |
| Seal Type | Tape |
| Actuator Color | White |
| Centerline | 2.54 |
| Number of Positions | 10 |
| Actuator Style | Slide |
| Auto-Insertable | Yes |
| Contact Current Rating (A) | .1 |
| Solder Tail Contact Plating | Gold over Nickel |
| Voltage Rating (V) | 50 |
| Number of Switches | 10 |
| TE Internal Number | 1-1825006-9 |
| Housing Color | Black |
| Product Type | Switch |
| Operating Temperature Range | -30 – 85 |
| Packaging Method | Tube |
| Packaging Quantity | 15 |
| Configuration (Pole-Throw) | Single Pole - Single Throw |
| Length | .994 |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Mounting Angle | Vertical |
| Contact Base Material | Copper Alloy |
| Mounting Type | Surface Mount |
| Termination Post Length | .169 |
| UL Flammability Rating | UL 94V-0 |
| Height | .106 |
| Contact Mating Area Plating Thickness | 10 |
| Switch Type | DIP |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
