1-1825008-2
Switch DIP N.O./N.C. SP16T 16 Shaft 20VAC 20VDC 0.4VA PC Pins 2.54mm Thru-Hole
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1825008-2 by TE Connectivity ALCOSWITCH Switches and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

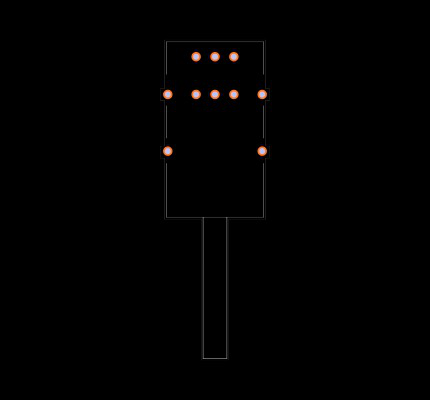

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1825008-2
| Part Name | 1-1825008-2 |
| Manufacturer | TE Connectivity |
| Termination Style | Printed Circuit Board |
| Switch Style | Rotary |
| Housing Material | Thermoplastic |
| Sealed | No |
| Oil-Tight | No |
| Centerline | .1 |
| Number of Positions | 16 |
| Actuator Style | Metal Shaft |
| Removable Tape Seal | Without |
| Code Type | Hexadecimal |
| Illuminated | No |
| Solder Tail Contact Plating | Gold Flash over Nickel |
| Number of Switches | 16 |
| TE Internal Number | 1-1825008-2 |
| Product Type | Switch |
| Voltage Rating (V) | 20 |
| Contact Mating Area Plating Material | Gold Flash |
| RoHS | N |
| Mounting Angle | Right Angle |
| Contact Base Material | Copper Alloy |
| Mounting Type | Through Hole |
| UL Flammability Rating | UL 94V-0 |
| Switch Type | Rotary DIP |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Current Rating (A) | 20 mA @ 20 V dc |
| Number Of Contacts | 16 |
| Terminal Type | Through Hole |
| Output Coding | Hexadecimal |
| Voltage Rating (V) | 20 (V dc) |
