1-1825190-0
Switch ChannelAccess DIP Switch Channel Shunt
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1825190-0 by TE Connectivity ALCOSWITCH Switches and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

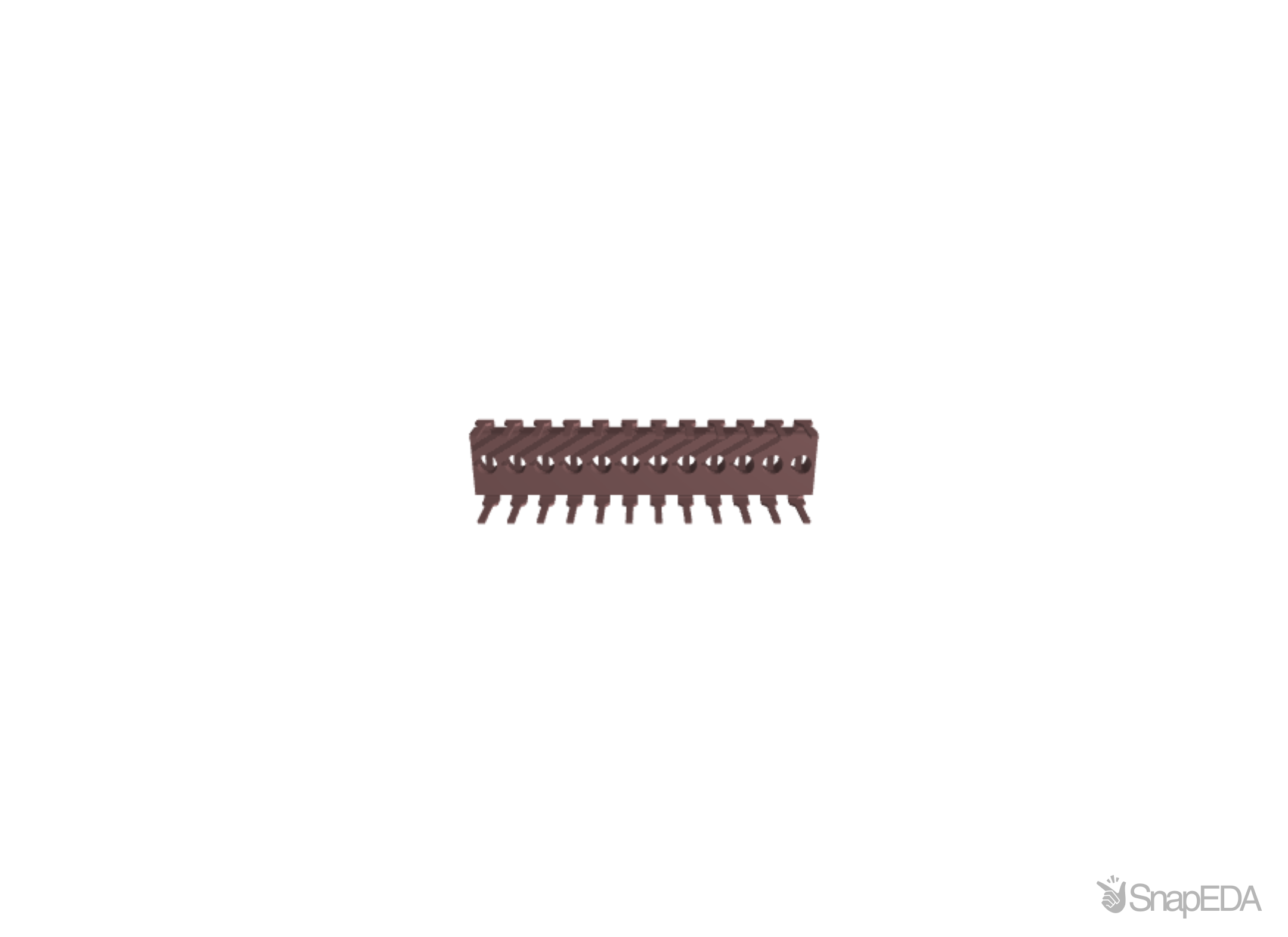

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1825190-0
| Part Name | 1-1825190-0 |
| Manufacturer | TE Connectivity |
| Mounting Angle | Right Angle |
| Product Type | Shunt |
| Contact Base Material | Copper Alloy |
| Auto-Insertable | No |
| Mounting Type | Through Hole |
| Operating Temperature Range | -55 – 105 |
| Solder Tail Contact Plating | Tin |
| Termination Post Length | .15 |
| Packaging Method | Tube |
| UL Flammability Rating | UL 94V-0 |
| Packaging Quantity | 17 |
| TE Internal Number | 1-1825190-0 |
| Housing Material | High Temperature Nylon |
| Length | 30.48 |
| Height | 2 |
| Housing Color | Black |
| Shunt Type | DIP |
| Contact Mating Area Plating Material | Tin |
| Centerline | .1 |
| Number of Positions | 12 |
| Switch Type | DIP |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1-1825190-0 by TE Connectivity ALCOSWITCH Switches from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
4,864
|
|
Visit Site | |
|
★ Featured
|
3,166
|
|
Visit Site | |
|
★ Featured
|
1,400
|
1 x $1.80
|
Visit Site | |
| Arrow Europe |
10,047
|
|
Visit Site | |
| Onlinecomponents |
3,270
|
|
Visit Site | |
| Verical |
10,050
|
|
Visit Site |
No issues have been reported for the 1-1825190-0
If you experienced any issues with the symbol or footprint, please report it.
