1-1825910-0

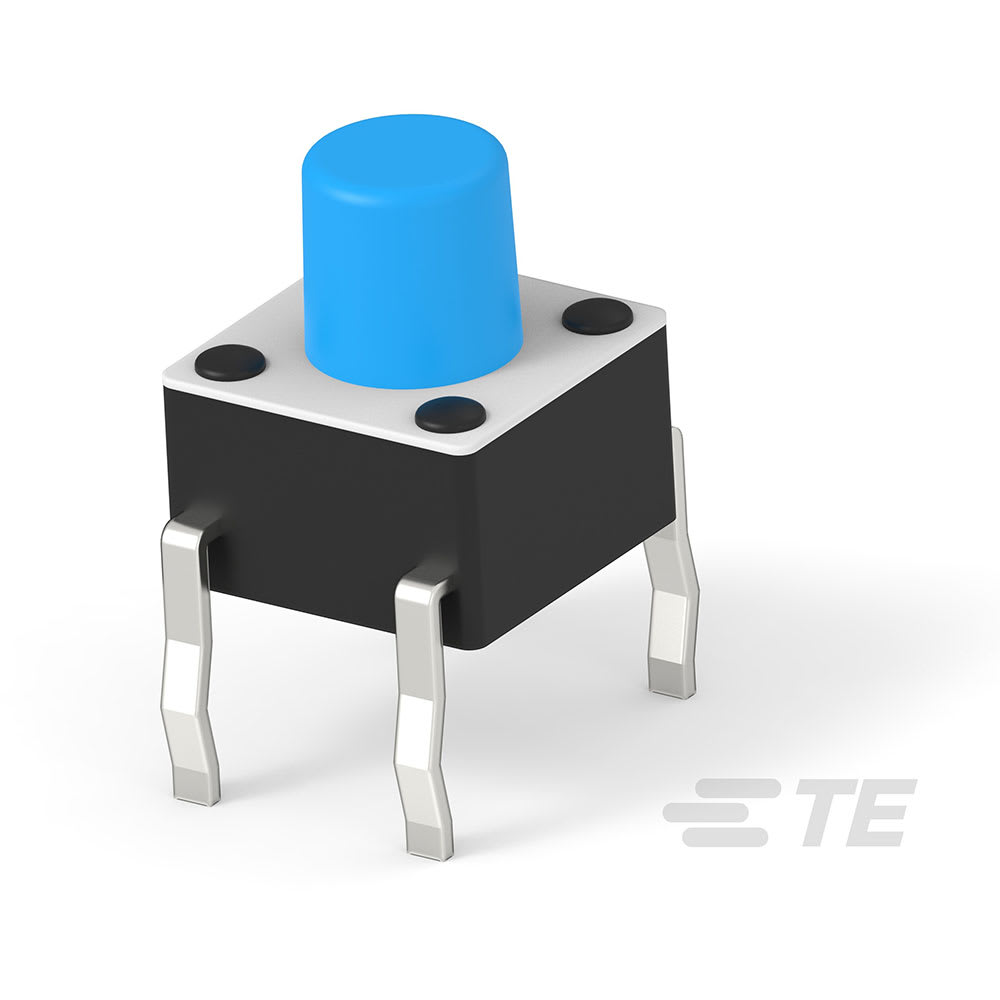

Switch Tactile OFF (ON) SPST Round Button PC Pins 0.05A 24VDC 100000Cycle 1.56N Thru-Hole Loose Piece
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1825910-0 by TE Connectivity / DEUTSCH and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1825910-0
| Part Name | 1-1825910-0 |
| Manufacturer | TE Connectivity |
| Ganged | With |
| Operating Function | NO |
| Low Profile | With |
| Temperature Rating | High |
| Button Width | .13 |
| Actuator Color | Blue |
| Actuator Profile | Extended |
| Actuator Style | Round |
| Actuator Length | 3.4 |
| Illuminated | With |
| Contact Current Rating (A) | 50 |
| TE Internal Number | 1-1825910-0 |
| Snap Action | Without |
| Case Material | Nylon |
| Dust Proof | No |
| Leg Style | Kinked |
| Contact Base Material | Brass |
| Support Bracket | Without |
| Switch Height | .276 |
| Case Color | Black |
| Packaging Method | Loose Piece |
| Configuration (Pole-Throw) | Single Pole - Single Throw |
| Process Sealed | No |
| Switch Contact Plating Material | Silver |
| Mounting Angle | Vertical |
| Product Type | Switch |
| Actuator Force | 160 |
| Mounting Type | Through Hole |
| Tactile Feel | With |
| Cover Material | PET Film |
| Number of Actuators | 1 |
| Termination Type | Printed Circuit Board |
| Bushing Style | Unthreaded |
| ESD Grounding Terminal | Without |
| Actuator Material | Nylon |
| Tactile | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Switch Operation | Momentary |
| Operating Force | 1.569 N |
| Actuator Length | 3.4 (mm) |
| Dimensions | 6 x 6 x 7 (mm) |
| Operating Temperature Range | -35 → +85 (°C) |
| Voltage Rating (V) | 24 (V dc) |
| Contact Current Rating (A) | 50 mA @ 24 V dc |
| Minimum Operating Temperature | -35 (°C) |
| Height | 7 (mm) |
| Actuator Type | Button |
| Actuator Colour | Blue |
| Mechanical Life | 100000 (Operations) |
| Contact Configuration | SPST |
| Maximum Operating Temperature | +85 (°C) |
| Terminal Type | Through Hole |
| Contact Material | Silver Over Nickel Plated Copper Alloy (Stationary); Silver Plated Copper Alloy (Movable) |
