1-188275-8
18 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Tin
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-188275-8 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

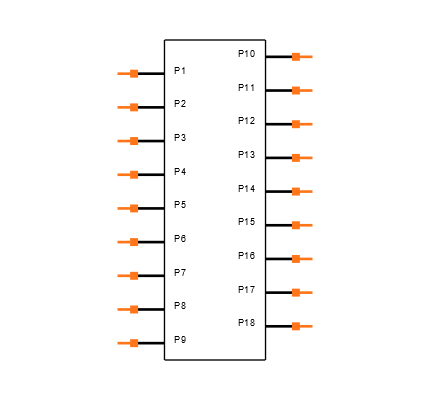

Symbol
No web preview
This Symbol is Available for

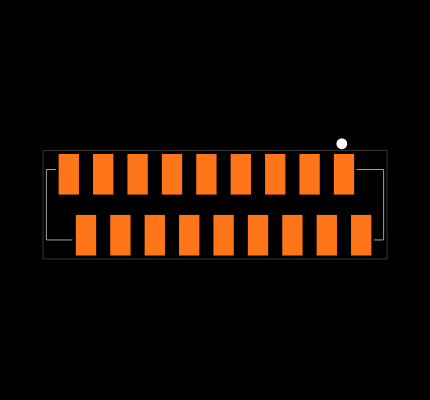

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-188275-8
| Part Name | 1-188275-8 |
| Manufacturer | TE Connectivity |
| Board-to-Board | |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .05 |
| Vacuum Tape | Without |
| Housing Material | PA 4.6 |
| Row-to-Row Spacing | 1.5 |
| Insulation Resistance | 1000 |
| Operating Voltage (V) | 100 |
| Connector Style | Receptacle |
| Ejection Latches | Without |
| Connector & Contact Terminates To | Printed Circuit Board |
| Contact Design | Dual Beam |
| PCB Mount Retention | Without |
| Contact Termination Area Plating Material | Tin over Nickel |
| Board Standoff | With |
| TE Internal Number | 1-188275-8 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Mating Retention | Without |
| Profile | Standard |
| Housing Color | Red |
| Header Type | Shrouded |
| Contact Underplating Material | Nickel |
| Contact Base Material | Phosphor Bronze |
| Housing Entry Style | Top |
| Contact Transmits (Typical) | Signal (Data) |
| Termination Method to Printed Circuit Board | Surface Mount |
| Contact Mating Area Plating Thickness | 3 5 |
| Operating Temperature Range | -40 to 105 |
| Contact Retention in Housing | Press-Fit |
| Packaging Method | Reel |
| Connector Type | Connector Assembly |
| Packaging Quantity | 900 |
| Length | .98 |
| Number of Positions | 18 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin over Nickel |
| Locking Latch | Without |
| RoHS | True |
| Polarization | With |
| Product Type | Connector |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Height | .21 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 1.5 |
| Type of Connector | Female-on-Board |
| Contact Type | Socket |
| Contact Termination Area Plating Thickness | 118.11 196.85 |
| ??? | Male-In-Wire/Male-On-Board |
| Mating Connector Lock | Without |
| Daisy Chain | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
Inventory for the 1-188275-8 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,590
|
|
Visit Site |
No issues have been reported for the 1-188275-8
If you experienced any issues with the symbol or footprint, please report it.
