1-1924067-9
Housing for female terminals 2Pos Sld 1.2mm CB,MCON,Key A,Lg CPA 2 POS
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-1924067-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

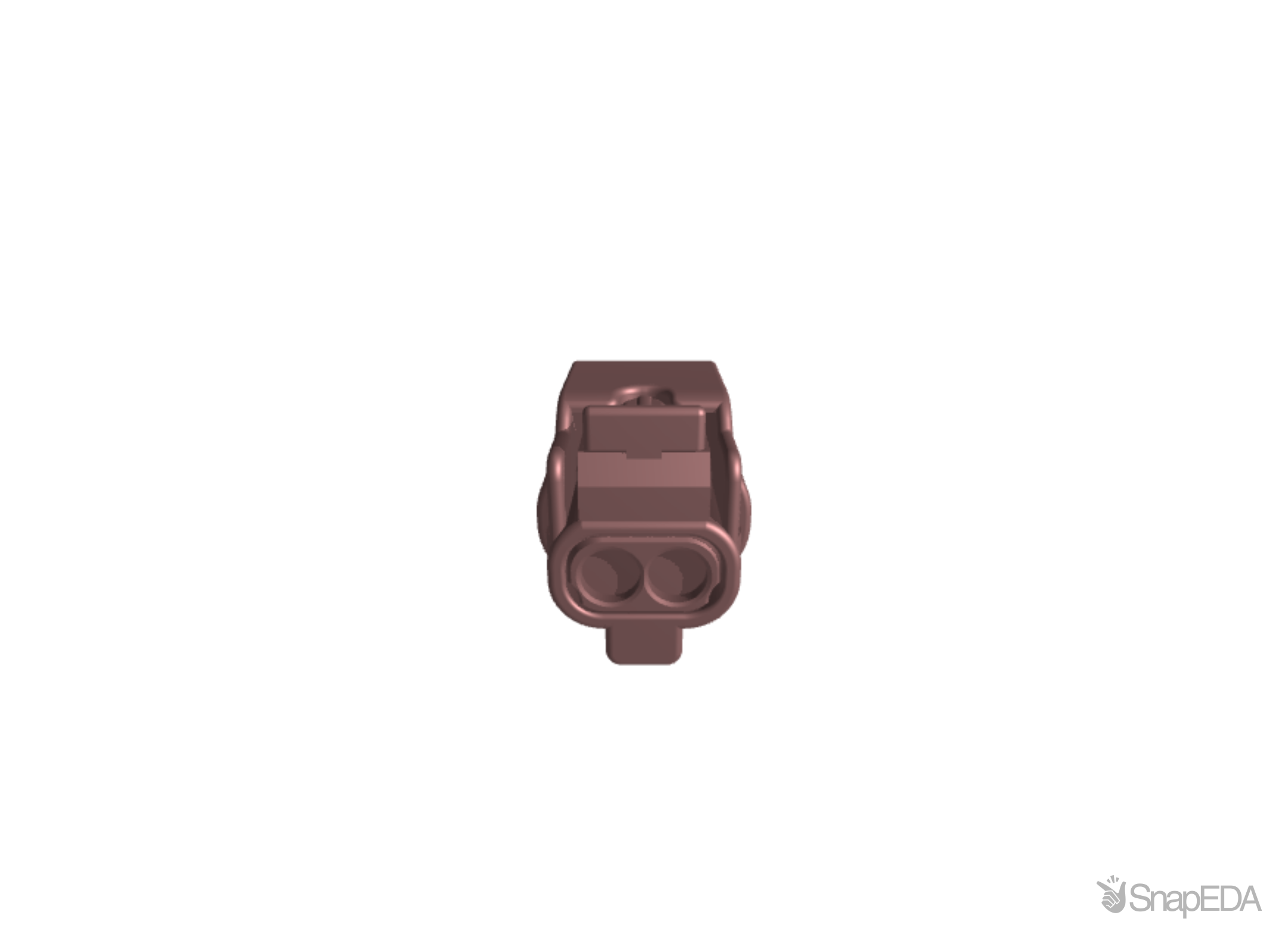

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-1924067-9
| Part Name | 1-1924067-9 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 4 |
| Circuit Application | Signal |
| Mounting Feature | Without |
| Width | 1.043 |
| Connector Style | Housing for female terminals |
| Connector Position Assurance Capable | Yes |
| Number of Positions | 2 |
| Hybrid Connector | No |
| TE Internal Number | 1-1924067-9 |
| Connector System | Wire-to-Wire |
| Number of Rows | 1 |
| Sealable | Yes |
| Terminal Position Assurance | Yes |
| Polarized | Yes |
| Operating Temperature Range | -40 – 257 |
| Degree of Protection | IP67 |
| Serviceable | Yes |
| Body Material | PA GF |
| Mating Tab Width | .047 |
| Strain Relief | No |
| Color | Black |
| Length | 15 |
| Height | 15.8 |
| Primary Locking Feature | Integrated in Housing |
