1-2040537-1
Plug, Mini IO, 8 way Single Jack DIP 2 | TE Connectivity 1-2040537-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-2040537-1 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

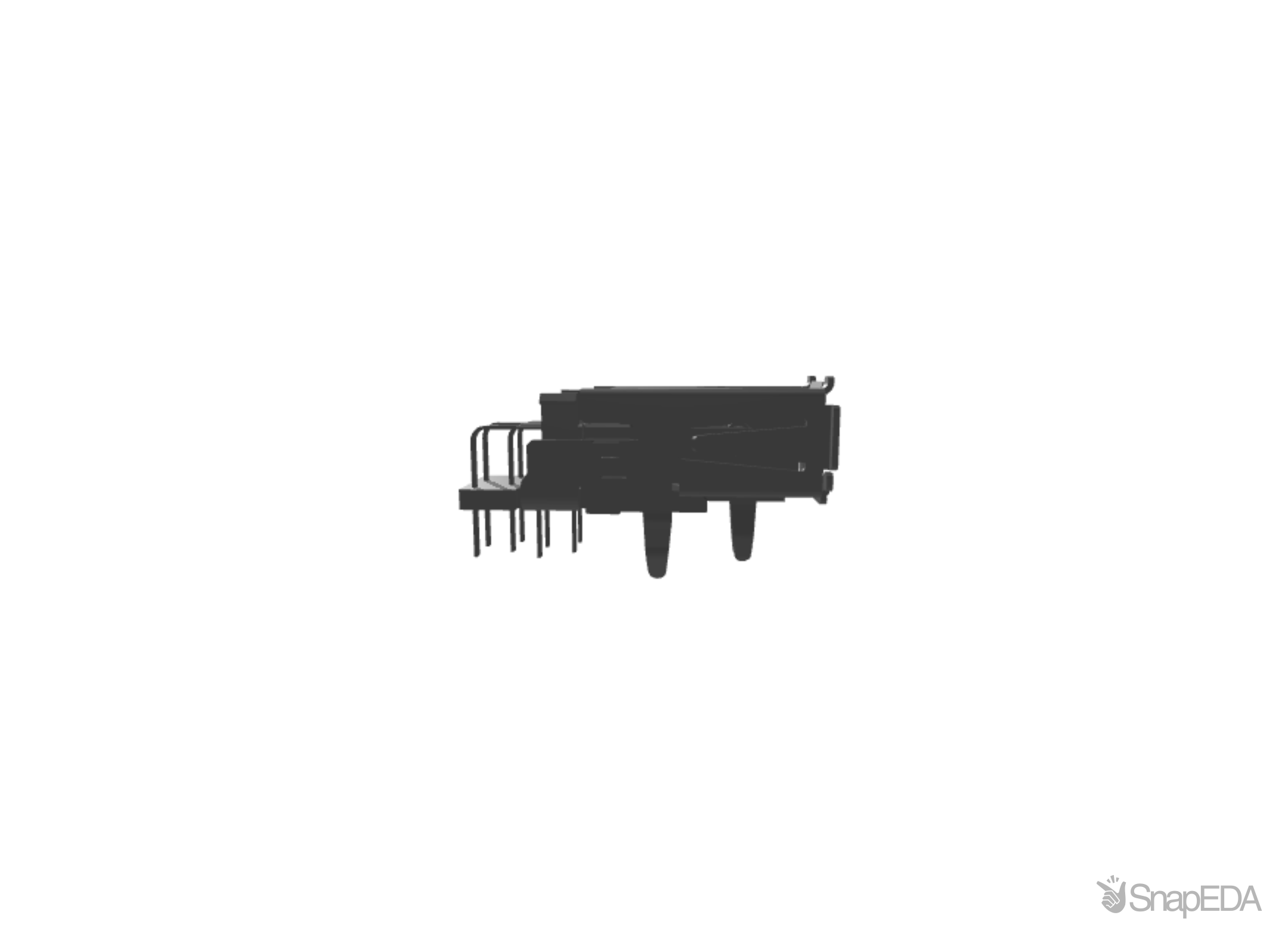

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-2040537-1
| Part Name | 1-2040537-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| コネクタ製品タイプ | Connector Assembly |
| 端子の下地めっきの材料 | Nickel |
| Centerline (Pitch) | .05 |
| Circuit Application | Power & Signal |
| Port Configuration | Single Port |
| Connector Product Type | Connector Assembly |
| Housing Material | Thermoplastic |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 8 |
| PCB Mount Retention Type | Through Hole |
| Number of Loaded Positions | 8 |
| Panel Mount Feature | Without |
| PCB Thickness (Recommended) | 1.6 |
| Panel Stops | Without |
| Connectors & Connector Components Type | Connector |
| TE Internal Number | 1-2040537-1 |
| PCB Tail Length | 1.5 |
| PCB Mount Orientation | Right Angle |
| Connector System | Cable-to-Board |
| Status Indicator | None |
| Connector Height | .303 |
| Housing Color | Natural |
| Contact Underplating Material | Nickel |
| Field Installable | No |
| Contact Base Material | Copper Alloy |
| Connector Mounting Type | Board Mount |
| Port Matrix Configuration | 1 x 1 |
| Operating Temperature Range | -40 – 85 |
| Shielded | Yes |
| Mating Entry Location | Side |
| Data Rate | 10 |
| Packaging Method | Box & Tray |
| Packaging Quantity | 80 |
| Keyed | Yes |
| Modular Jacks & Plugs Products | Industrial Mini I/O |
| Contact Mating Area Plating Material | Gold |
| Modular Jack & Plug Interface Type | Industrial Mini I/O |
| RoHS | True |
| Life Cycle Status | Restricted Availability |
| Connector Contact Density | High |
| Termination Method to Printed Circuit Board | Through Hole |
| Shield Plating Material | Nickel |
| Number of PCB Ground Tabs | 2 |
| Modular Connector Style | Jack |
| Shield Material | Copper Alloy |
| Performance Category | Cat 5e |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 20 |
| Grounding Options | PCB and Panel Ground |
| Contact Current Rating (Max) (A) | 1.5 |
| Connector Profile | Standard |
| PCB Contact Termination Area Plating Material | Tin |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Through Hole |
| Gender | Female |
| Connector Type | Modular Jack |
| Housing Material | Thermoplastic |
| Termination Method | Solder |
| Contact Material | Copper Alloy |
