1-207121-0
Conn Power PIN 36 POS 5mm Solder ST Thru-Hole 36 Terminal 1 Port Tray
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-207121-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

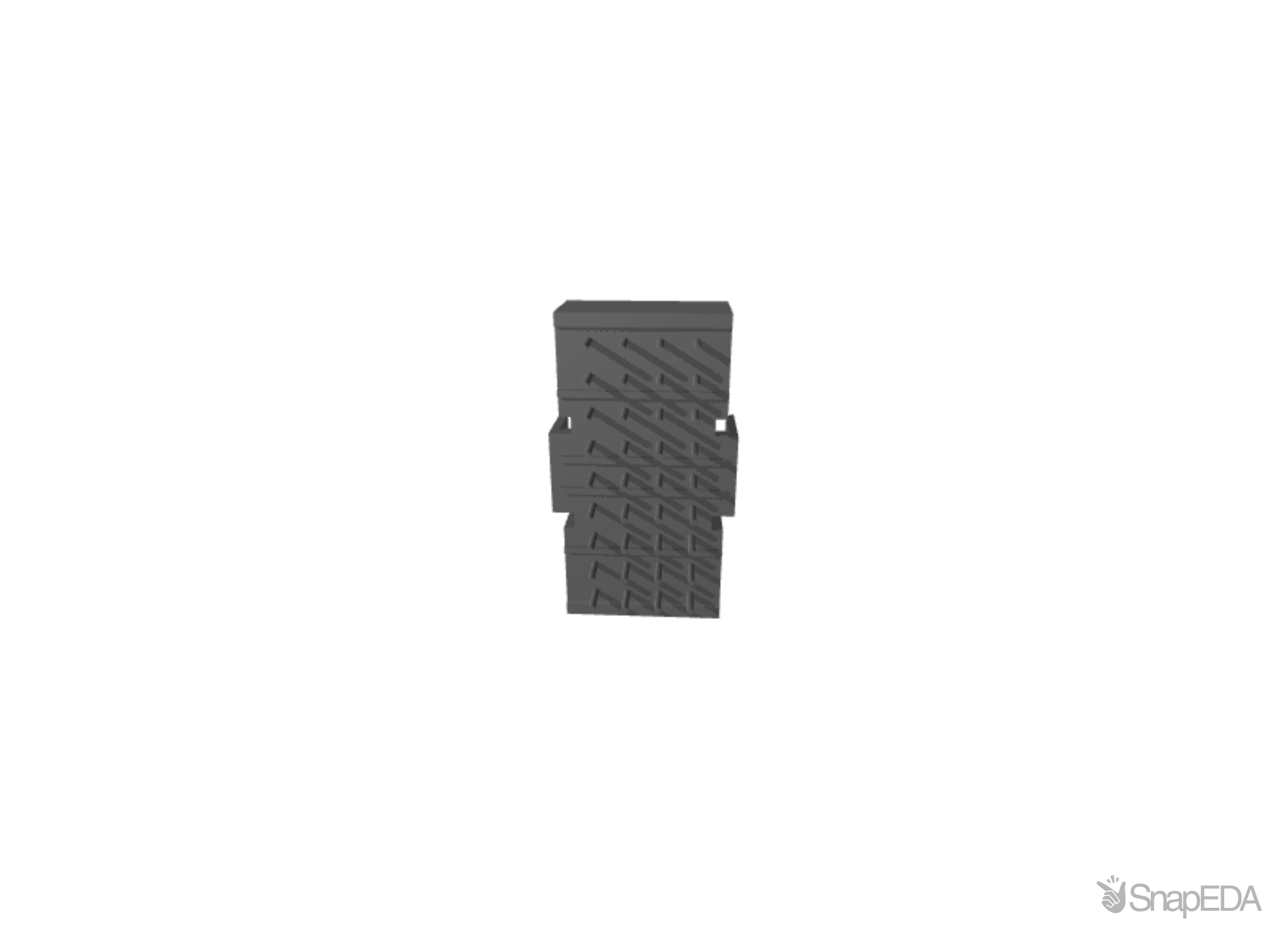

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-207121-0
| Part Name | 1-207121-0 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .197 |
| Agency/Standard | CSA |
| Mating Retention Type | Locking Tab |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 600 |
| For Use With | Plug Housing |
| Connector Style | Receptacle |
| UL Rating | Recognized |
| Number of Positions | 36 |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .063 |
| Housing Material | Nylon |
| Contact Current Rating (Max) (A) | 7.5 |
| TE Internal Number | 1-207121-0 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Number of Rows | 4 |
| Product Type | Connector |
| Contact Transmits (Typical) | Signal (Data) |
| Mating Retention | With |
| UL File Number | E28476 |
| Operating Temperature Range | -55 to 130 |
| Packaging Method | Tray |
| Tail Length | .181 |
| Packaging Quantity | 28 |
| Connector Type | Header |
| Contact Layout | Matrix |
| Mating Alignment | With |
| VDE Tested | Yes |
| RoHS | True |
| ???? | Red |
| Connector Configuration | Square Grid |
| UL Flammability Rating | UL 94V-0 |
| Row-to-Row Spacing | 5 |
| CSA File Number | LR16455 |
| Contact Type | Pin |
| Tail Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1-207121-0 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
105
|
|
Visit Site | |
| Buerklin |
|
224 x $34.66
|
Visit Site | |
| Heilind Americas |
|
224 x $34.35
|
Visit Site | |
| Sager |
|
224 x $42.94
|
Visit Site | |
| TE Store |
105
|
|
Visit Site | |
| TTI Americas |
|
|
Visit Site |
No issues have been reported for the 1-207121-0
