1-2203452-0
MALE ASM, 1 POS, VERT, PCB, KEY K
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-2203452-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

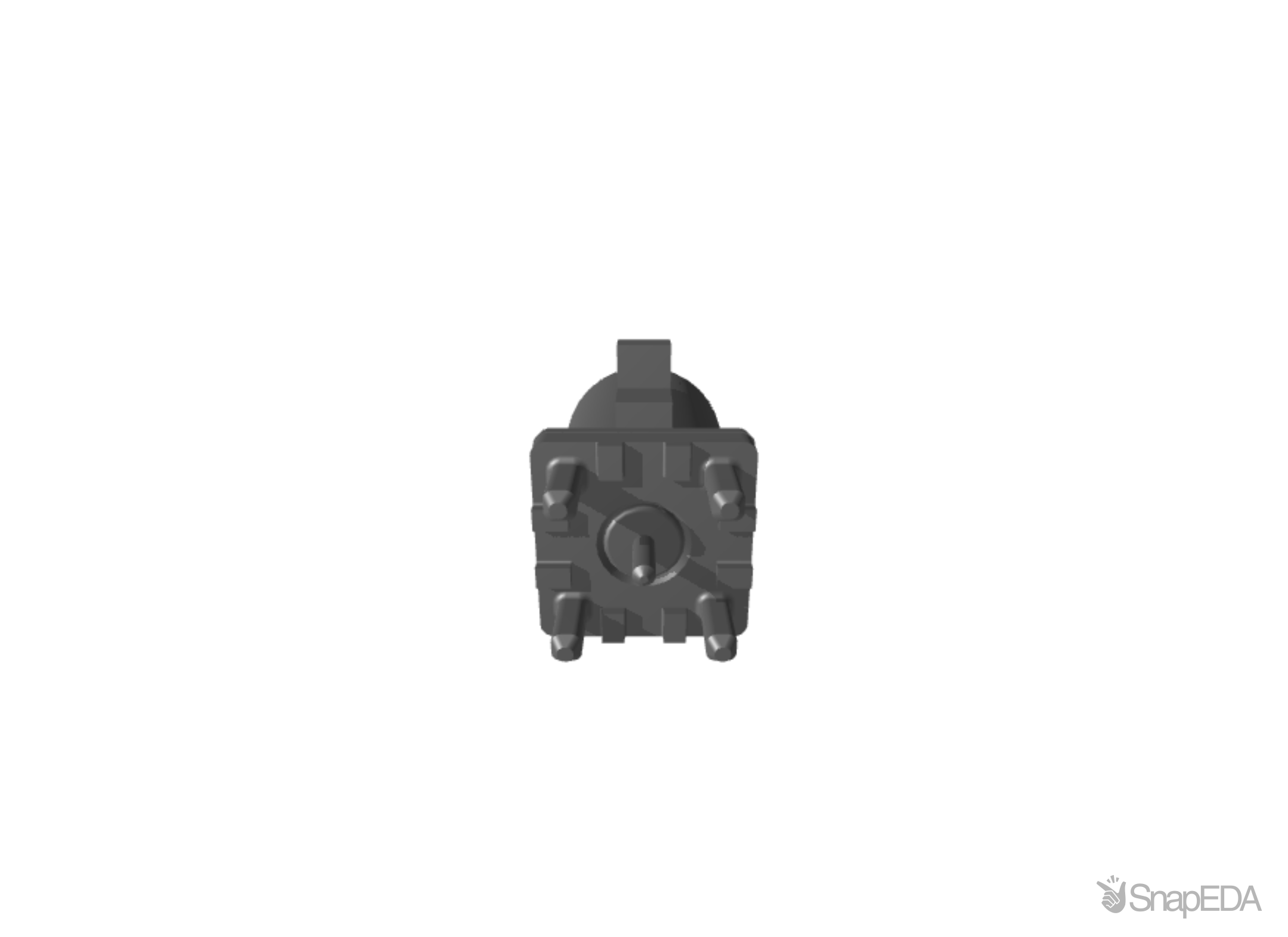

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-2203452-0
| Part Name | 1-2203452-0 |
| Manufacturer | TE Connectivity |
| Wire-to-Device | |
| Center Contact | With |
| Solder Process | Reflow |
| Circuit Application | Signal |
| Mating Retention | With |
| Width | .295 |
| Dielectric Material | PCT |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Center Contact Plating Material | Other |
| Board Standoff | Without |
| Operating Temperature (Max) | 221 |
| TE Internal Number | 1-2203452-0 |
| Number of Positions | 1 |
| Connector System | Wire-to-Device |
| Housing Color | Other |
| Impedance | 50 |
| Sealable | No |
| Outer Contact Plating Material | Other |
| Operating Temperature Range | -40 to 221 |
| Shielded | No |
| Body Material | Other |
| Contact Mating Area Plating Material | Gold (Au) |
| PCB Leg Plating Material | Tin (Sn) |
| RoHS | True |
| PCB Mounting Style | Through Hole |
| Mounting Angle | Vertical / 180 |
| Length | 13.8 |
| Height | .45 |
| Operating Frequency Range | 0 6000 |
| Contact Type | Pin |
| Hybrid Connector | No |
| Keying Code | K |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
