1-2208408-6
6pos, Mini Usb, Hdr Assy, 180deg, Cod f
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-2208408-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

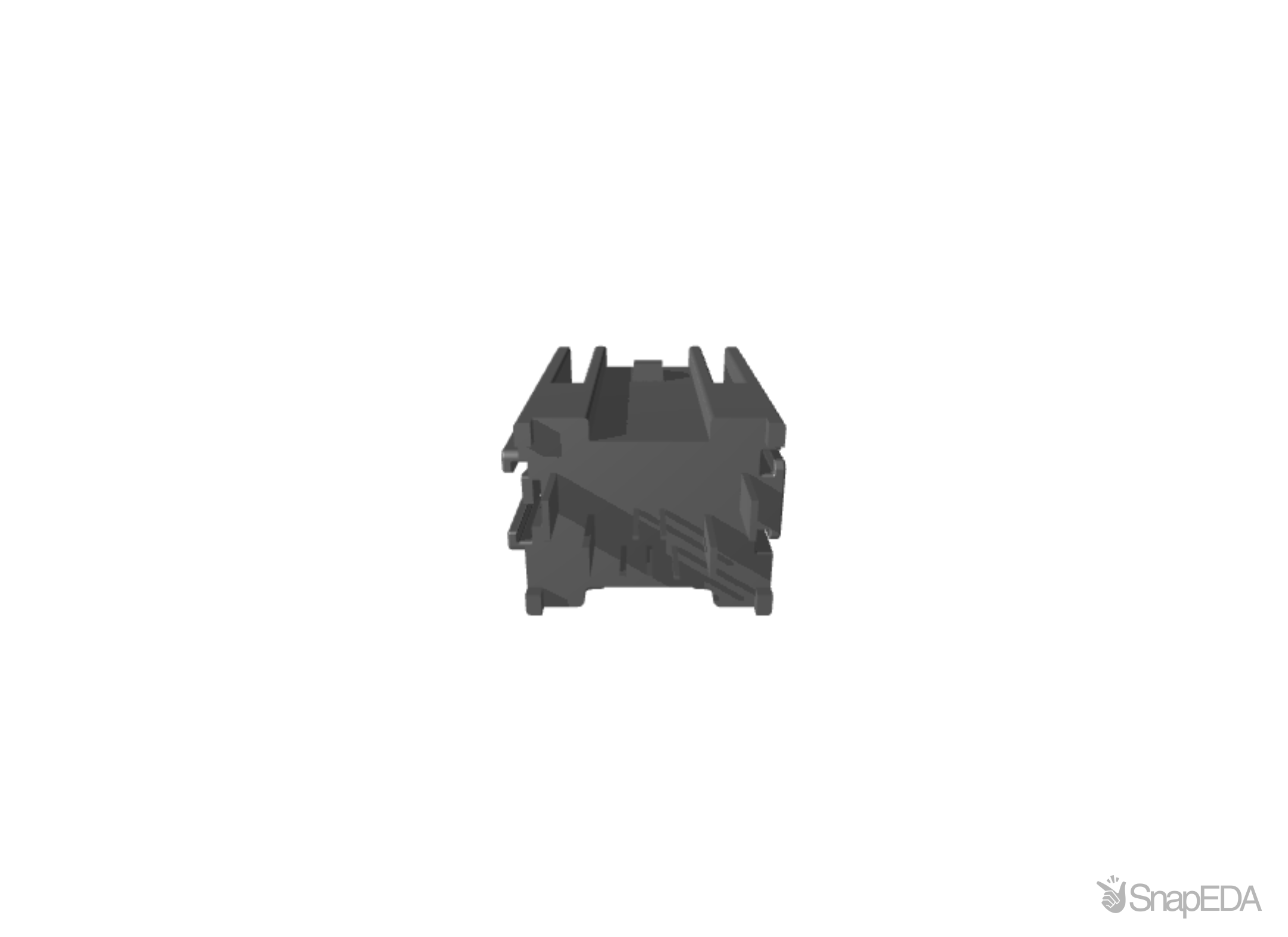

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-2208408-6
| Part Name | 1-2208408-6 |
| Manufacturer | TE Connectivity |
| Wire-to-Device | |
| Center Contact | Without |
| Solder Process | Wave Solder |
| Centerline (Pitch) | 1.6 |
| Circuit Application | Signal |
| Mating Retention | With |
| Width | 17.53 |
| Environmental Protection | Other |
| Dielectric Material | LCP |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Solder Tail |
| PCB Leg Plating Material | Tin (Sn) |
| Board Standoff | With |
| Operating Temperature (Max) | 167 |
| TE Internal Number | 1-2208408-6 |
| Number of Positions | 5 |
| Connector System | Wire-to-Device |
| Housing Color | Other |
| Impedance | 90 |
| Operating Temperature Range | -40 to 85 |
| Sealable | No |
| PCB Mount Retention | With |
| Shielded | Yes |
| Packaging Method | Box & Tray |
| Agency/Standard | USCAR-30 |
| Length | .516 |
| Contact Mating Area Plating Material | Gold (Au) |
| PCB Mounting Style | Through Hole |
| Mounting Angle | Vertical / 180 |
| Body Material | PCT GF |
| Height | 1.007 |
| Operating Frequency Range | 0 1000 |
| Contact Type | Pin |
| Hybrid Connector | No |
| Keying Code | F |
