1-2208686-1
21 way LEAVYSEAL group 2 A key AMP MCP V0 receptacle housing for female terminals; with mating tab width .11 inch/2.8...
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-2208686-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

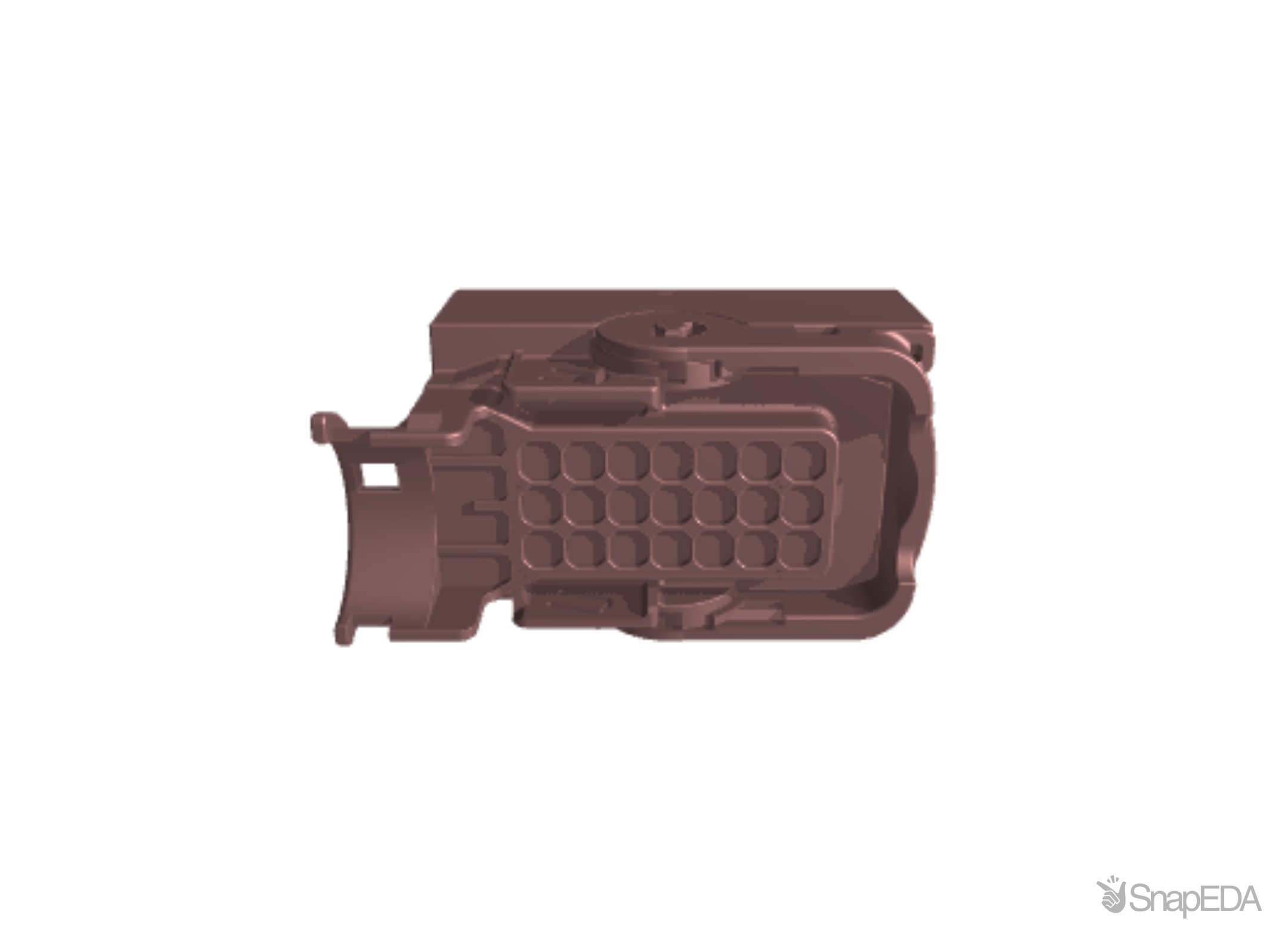

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-2208686-1
| Part Name | 1-2208686-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .197 |
| Circuit Application | Signal |
| Mounting Feature | Without |
| Width | 1.72 |
| Operating Voltage (V) | 28 |
| Connector Position Assurance Capable | No |
| Connector Style | Housing for female terminals |
| Number of Positions | 21 |
| Hybrid Connector | No |
| TE Internal Number | 1-2208686-1 |
| Connector System | Wire-to-Board |
| Number of Rows | 3 |
| Strain Relief | Yes |
| Terminal Position Assurance | Yes |
| Nominal Voltage Architecture (V) | 12 |
| Polarized | No |
| Length | 2.724 |
| Operating Temperature Range | -40 – 120 |
| Degree of Protection | IP67 |
| Serviceable | Yes |
| Body Material | PBT GF |
| Cable Exit Angle | 90° |
| RoHS | True |
| Mating Tab Width | 2.8 |
| Sealable | Yes |
| Color | Black |
| UL Flammability Rating | UL 94V-0 |
| Height | 37.9 |
| Row-to-Row Spacing | .236 |
| Primary Locking Feature | On the Terminal |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1-2208686-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
40
|
|
Visit Site | |
| Onlinecomponents |
186
|
|
Visit Site | |
| Verical |
185
|
|
Visit Site |
No issues have been reported for the 1-2208686-1
