1-2296206-0

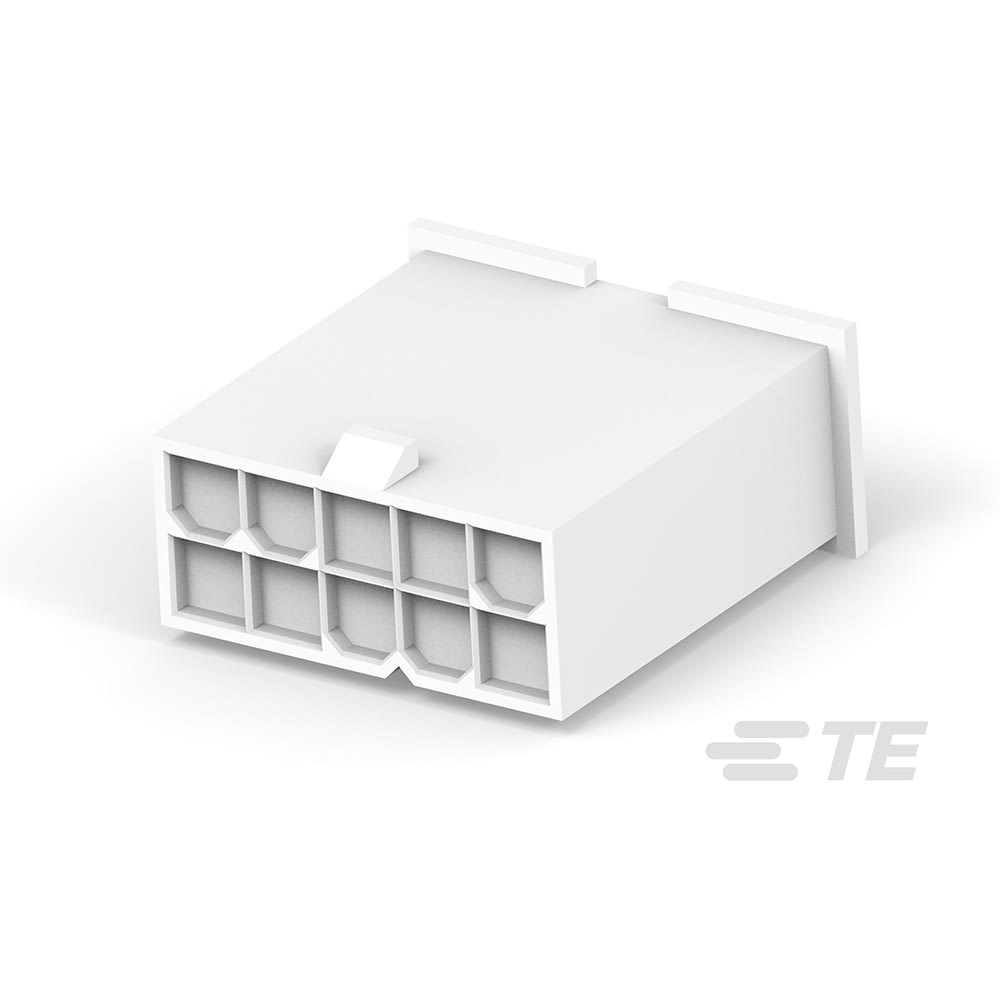

10P FH PLUG VAL-U-LOK FH GWT/V0 | TE Connectivity 1-2296206-0
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-2296206-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-2296206-0
| Part Name | 1-2296206-0 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Connector System | Wire-to-Wire |
| Centerline (Pitch) | 4.2 |
| Operating Temperature Range | -40 – 221 |
| Circuit Application | Power |
| TE Internal Number | 1-2296206-0 |
| Connector & Contact Terminates To | Wire & Cable |
| Housing Material | Nylon |
| Row-to-Row Spacing | .165 |
| Number of Rows | 2 |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector Style | Plug |
| Contact Type | Socket |
| Insertion Force | 15 Newton |
| Sealable | No |
| Number of Positions | 10 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
