1-2327632-3
AMP MCP 6.3/4.8K, CONTACT
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-2327632-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

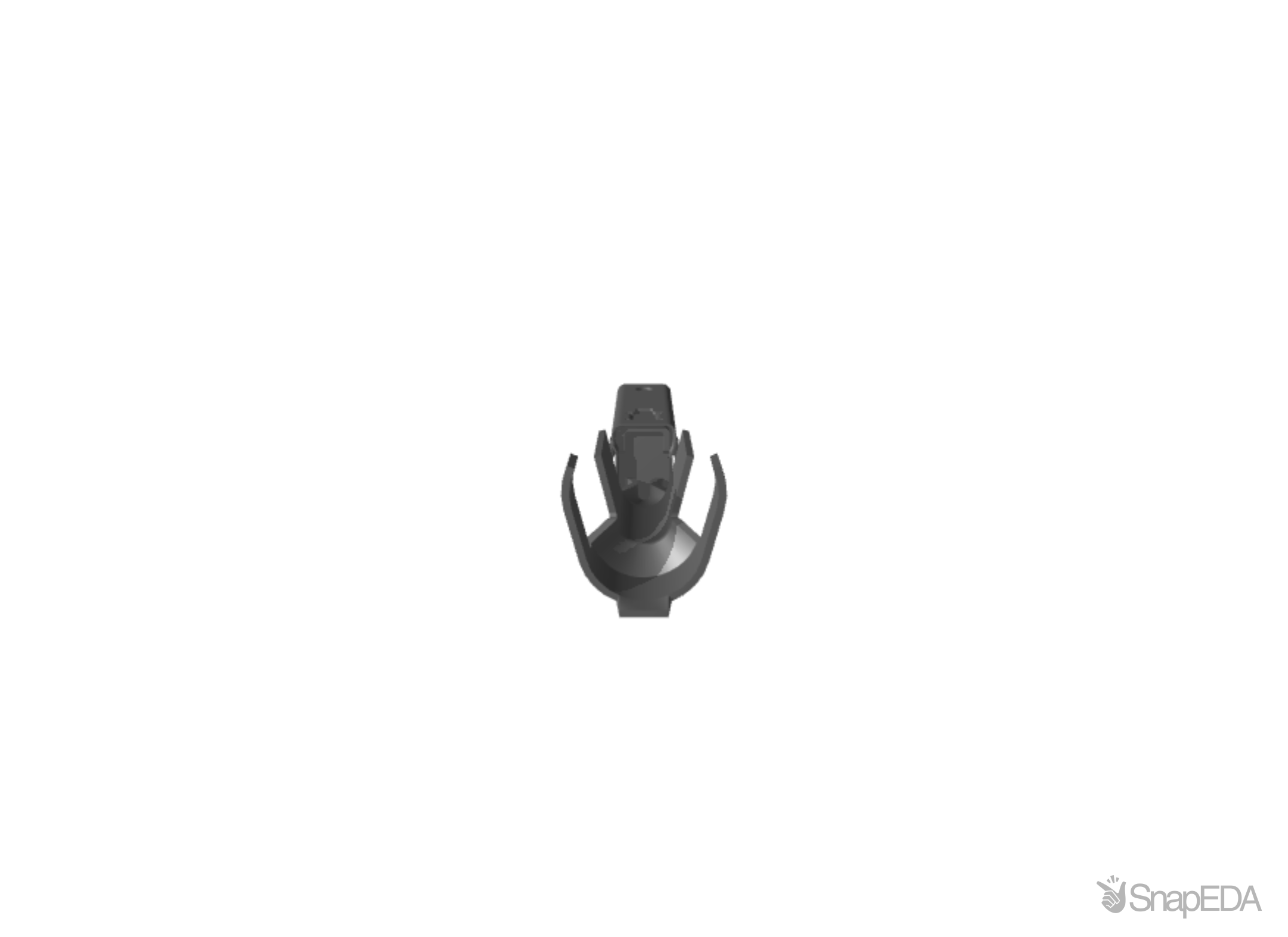

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-2327632-3
| Part Name | 1-2327632-3 |
| Manufacturer | TE Connectivity |
| Receptacle Style | 180° |
| Wire Size | 6 |
| Wire Type | Copper |
| Operating Temperature Range | -40 – 284 |
| Terminal & Splice Type | Receptacle |
| Packaging Method | Reel |
| Wire Size Search | 6 |
| Wire Insulation Diameter | .132 – .168 |
| TE Internal Number | 1-2327632-3 |
| Packaging Quantity | 1500 |
| Crimp Type | F-Crimp |
| Agency/Standard | LV214 |
| Interface Plating | Silver (Ag) |
| Contact Termination Area Plating Material | Tin (Sn) |
| Primary Locking Feature | Locking Lance |
| Mating Tab Thickness | .8 |
| Termination Method | Crimp |
| Seal Type | Single Wire Seal (SWS) |
| Terminal Transmits | 41 – 100 A (High Power) |
| Sealable | Yes |
| Mating Tab Width | .189 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
