1-2348454-2
Plug Connector DYNAMIC 1200D HDR ASSY V 4P X BLACK TIN 4 POS
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-2348454-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

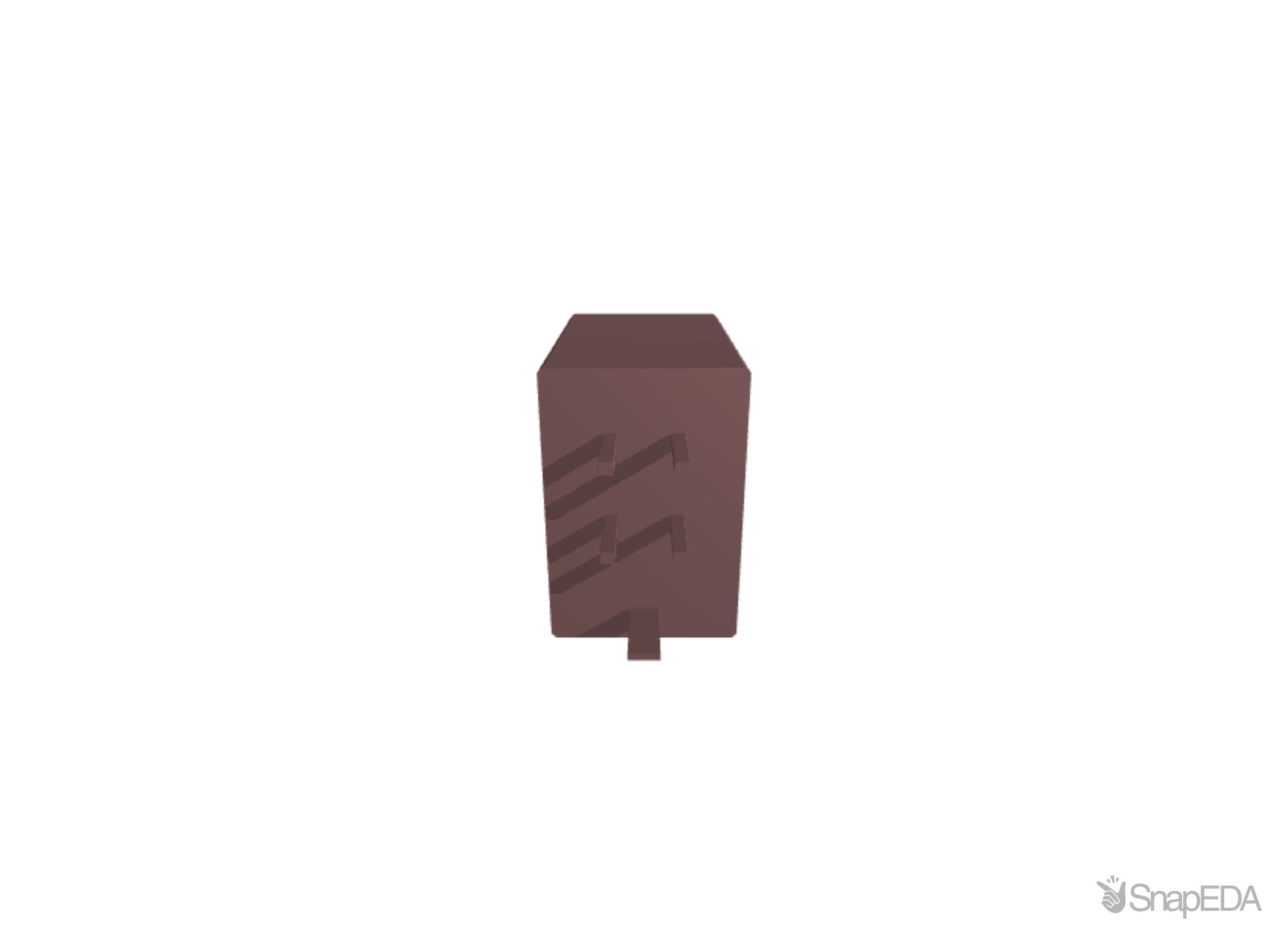

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-2348454-2
| Part Name | 1-2348454-2 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Keyed |
| Centerline (Pitch) | 2.5 |
| Keying | X |
| Circuit Application | Power & Signal |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | Polyester GF |
| Width | 9.35 |
| Connector & Contact Terminates To | Flexible Printed Circuit (FPC) |
| Operating Voltage (V) | 250 |
| For Use With | Receptacle Housing |
| Connector Style | Plug |
| PCB Mount Orientation | Vertical |
| Number of Positions | 4 |
| PCB Mount Retention Type | Retention Leg |
| PCB Mount Retention | With |
| Contact Layout | Matrix |
| VDE Tested | No |
| CSA File Number | LR7189 |
| Panel Mount Feature | Without |
| Contact Plating Material | Tin |
| TE Internal Number | 1-2348454-2 |
| UL Rating | Recognized |
| Connector System | Cable-to-Board |
| Termination Method to Printed Circuit Board | Through Hole |
| Number of Rows | 2 |
| Header Type | Shrouded |
| Contact Underplating Material | Nickel |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Mating Retention | With |
| UL File Number | E28476 |
| Panel Gasket | Without |
| Operating Temperature Range | -55 to 105 |
| Shielded | No |
| Packaging Method | Tube |
| Connector Type | Header |
| Packaging Quantity | 61 |
| Tail Length | .12 |
| Agency/Standard | CSA |
| Length | .299 |
| PCB Thickness (Recommended) | 1 1.6 |
| Mating Alignment | With |
| PCB Contact Termination Area Plating Material | Tin |
| CSA Rating | Certified |
| Insertion Force | Standard |
| RoHS | True |
| ???? | Black |
| Sealable | No |
| PCB Mount Alignment | Without |
| Mating Retention Type | Locking Latch |
| Height | .49 |
| Row-to-Row Spacing | 3.3 |
| Contact Current Rating (Max) (A) | 5 |
| Halogen Free | No |
| Glow Wire Rating | Standard Part - Not Glow Wire |
