1-282830-5
Conn Eurostyle Block F 14 POS 5mm Screw Straight/Right Angle Cable Mount 12A/Contact Carton
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-282830-5 by TE Connectivity / AMP and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

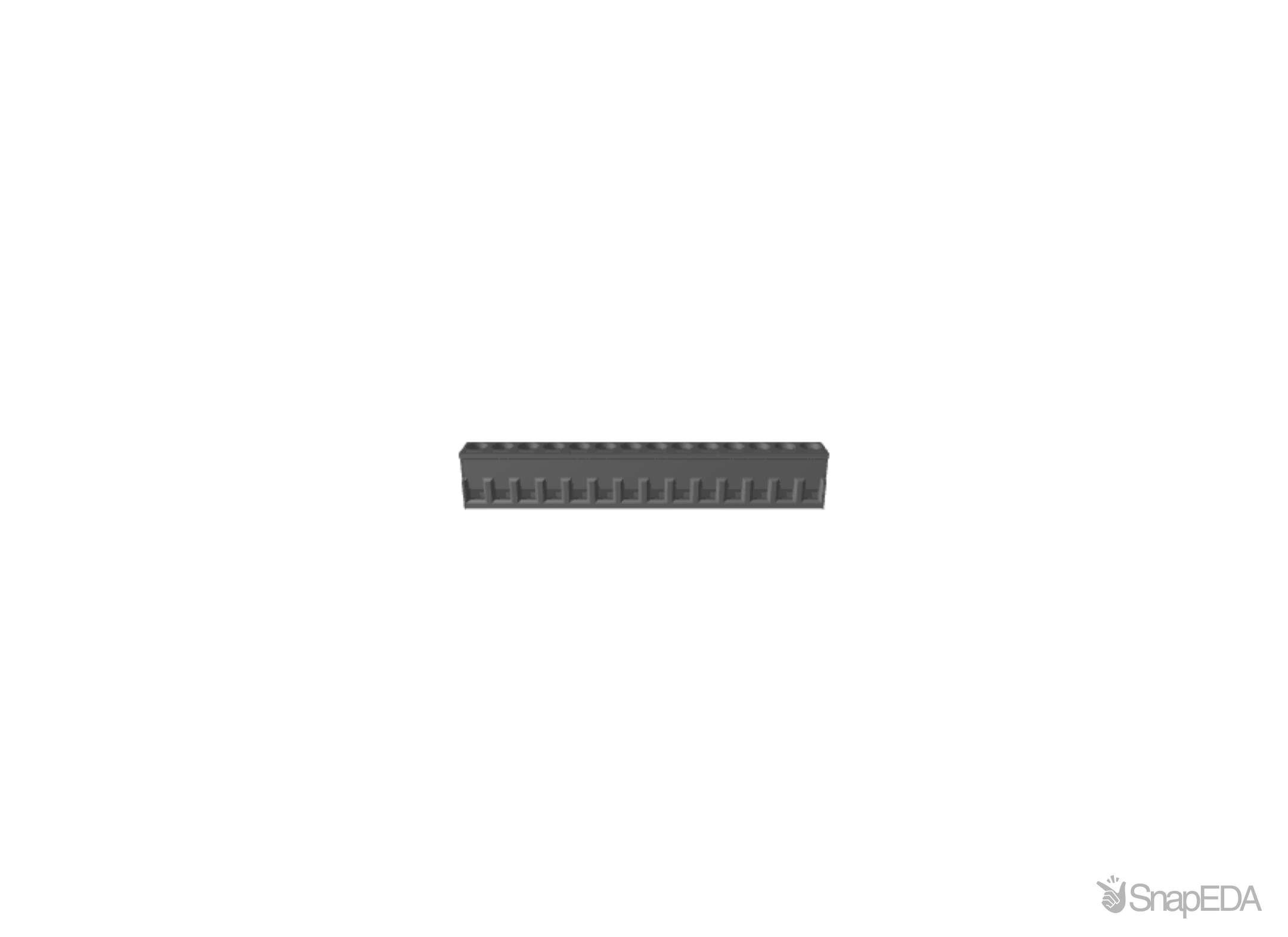

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-282830-5
| Part Name | 1-282830-5 |
| Manufacturer | TE Connectivity / AMP |
| Centerline (Pitch) | 5 |
| Circuit Application | Power & Signal |
| Marking Color | Black |
| Housing Material | PA 66 |
| Screw Plating Material | Nickel |
| Screw Flange | Without |
| Screw Size | M3 |
| Connector Style | Plug |
| Number of Positions | 14 |
| Current Rating (Max) (A) | 12 |
| Contact Current Rating (Max) (A) | 12 |
| TE Internal Number | 1-282830-5 |
| Connector & Contact Terminates To | Wire & Cable |
| Connector System | Wire-to-Board |
| Screwless Terminal Block | Yes |
| Number of Rows | 1 |
| Housing Color | Green |
| Contact Base Material | Phosphor Bronze |
| Operating Temperature Range | -40 to 105 |
| Packaging Method | Carton |
| Packaging Quantity | 50 |
| Contact Mating Area Plating Material | Tin |
| Wire Entry Angle | Side |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Mounting Angle | Vertical |
| Wire Protection | With |
| Interlock | Without |
| Screw Material | Brass |
| Block Type | Special Plug |
| Voltage (V) | 300 |
| Wire Size | .05 2 |
| Mating Angle | 90(Bottom)/ 180 (Side) |
