1-2834016-3
Circular Connector, 3POS 2.54MM SES CONN. | TE Connectivity 1-2834016-3
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-2834016-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

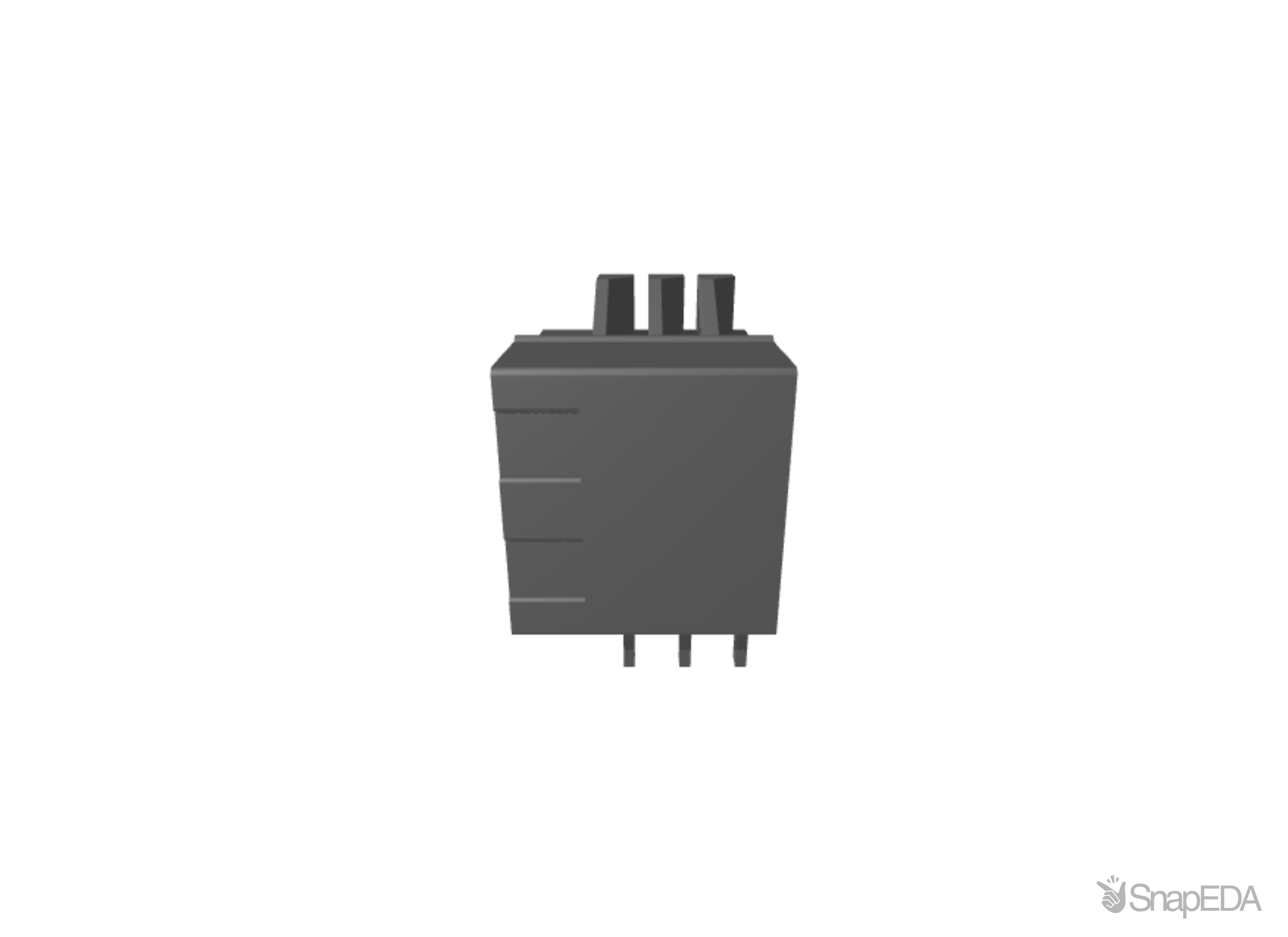

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-2834016-3
| Part Name | 1-2834016-3 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Agency/Standard | UL |
| Mounting Angle | Vertical |
| Sealable | No |
| Contact Termination Area Plating Finish | Matte |
| Packaging Method | Box & Carton |
| TE Internal Number | 1-2834016-3 |
| Connector Type | Connector Assembly |
| Termination Method to Printed Circuit Board | Through Hole |
| Contact Current Rating (Max) (A) | 6 |
| Contact Termination Area Plating Material | Tin-Lead over Nickel |
| Number of Positions | 3 |
| Operating Voltage (V) | 300 |
| Wire/Cable Size | 26 20 |
| Connector Style | Receptacle |
| Product Type | Connector |
| SMT Compatible | No |
| Connector & Contact Terminates To | Printed Circuit Board |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
