1-2834074-2
Connector, Wire-to-Wire, Miniature Waterproof Plug, 2 Position, White | TE Connectivity 1-2834074-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-2834074-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

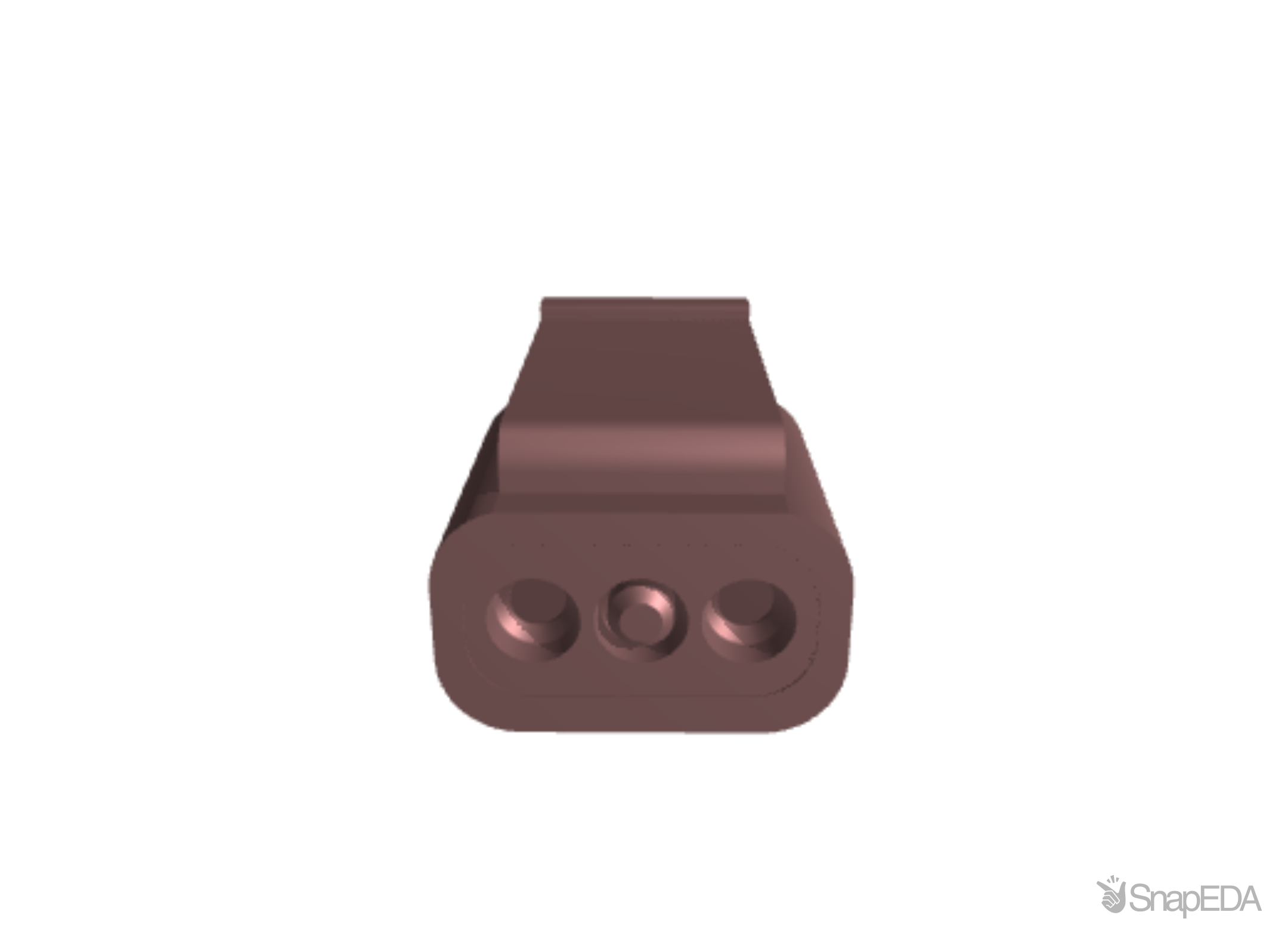

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-2834074-2
| Part Name | 1-2834074-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | 2.5 |
| Operating Temperature Range | -40 to 105 |
| Packaging Method | Loose Piece |
| UL Flammability Rating | UL 94V-0 |
| Agency/Standard | UL |
| Circuit Identification Feature | With |
| Connector & Contact Terminates To | Wire & Cable |
| Termination Method to Wire & Cable | Crimp |
| UV Exposure Rated | No |
| Wire Size | 18 22 |
| Tool-less Wire Termination | No |
| Operating Voltage (Max) (V) | 400 |
| TE Internal Number | 1-2834074-2 |
| Number of Positions | 2 |
| Connector System | Wire-to-Wire |
| Contact Current Rating (Max) (A) | 5 |
| Number of Rows | 1 |
| Agency/Standard Number | UL 1977 |
| Product Type | Connector |
| Sealable | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Ways | 2 |
| Mounting Type | Cable Mount |
| Pole Format | 2 |
| Voltage Rating (V) | 400 V ac |
| Gender | Male |
| Colour | White |
| Ip Rating | IP67 |
| Plug Socket | Plug |
| Termination Method | Crimp |
| Contact Plating | Tin |
| Series | SlimSeal Connector Miniature |
| Current Rating (A) | 5 (A) |
| Wire Size | 22 → 18 AWG |
| Type | Miniature |
| Contact Material | Copper Alloy |
