1-292230-0
Mini-CT shrouded header, 1.5mm, SMT, 10P | TE Connectivity 1-292230-0
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-292230-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

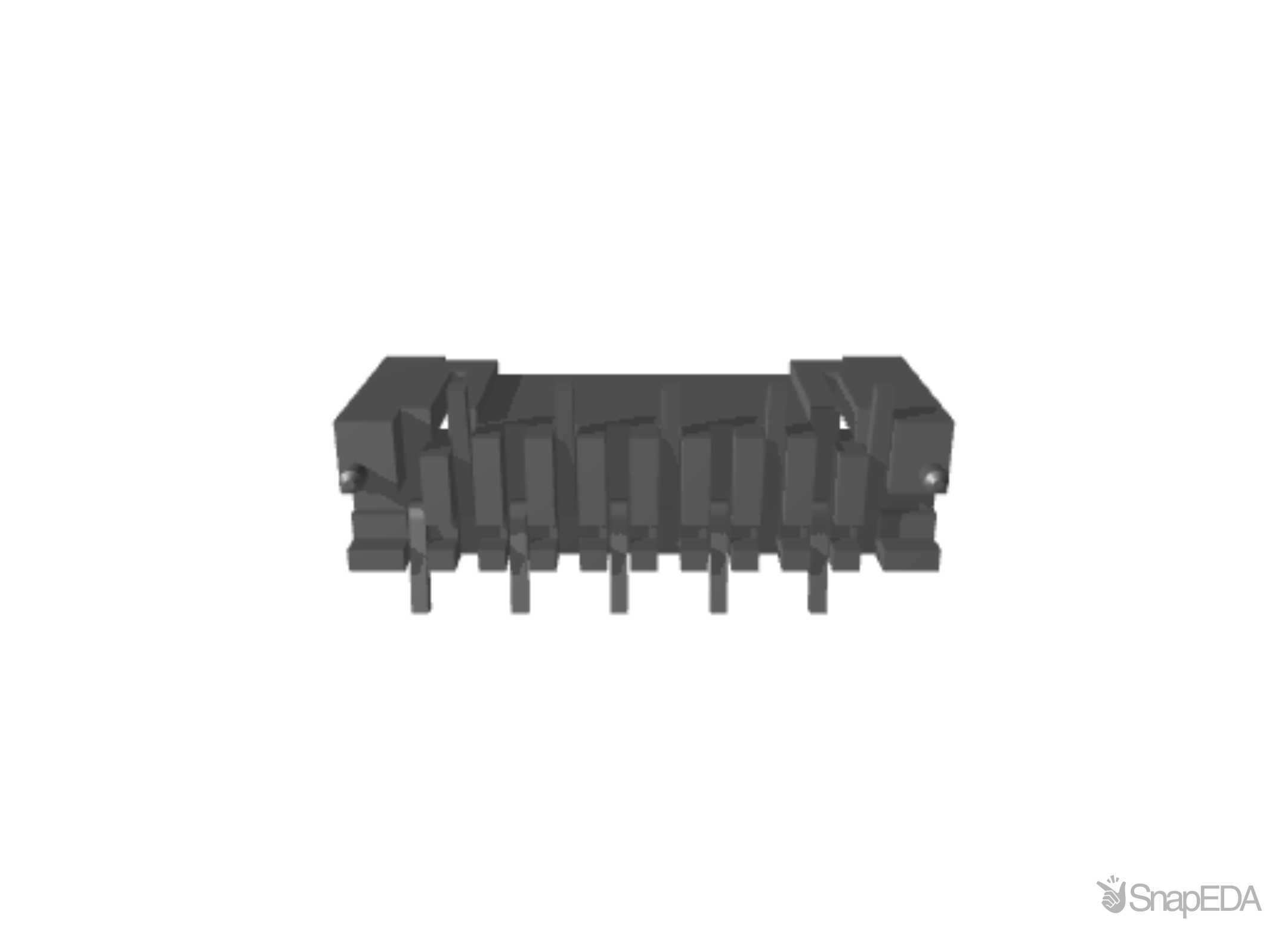

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-292230-0
| Part Name | 1-292230-0 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .059 |
| Housing Material | Nylon |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 50 |
| PCB Mount Alignment Type | Locating Posts |
| Number of Positions | 10 |
| PCB Mount Retention Type | Boardlock |
| Contact Design | Square Post |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .031 |
| CSA File Number | LR 7189-133 |
| Mating Post Length | .095 |
| PCB Connector Assembly Type | PCB Mount Header |
| TE Internal Number | 1-292230-0 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Connector Height | .272 |
| Number of Rows | 1 |
| Agency/Standard Number | UL |
| Housing Color | Natural |
| Connector Width | .185 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Contact Shape | Square |
| PCB Contact Termination Area Plating Material Thickness | 1 |
| Contact Transmits (Typical) | Signal (Data) |
| Mating Retention | With |
| Connector Length | 17.5 |
| UL File Number | E28476 |
| Assembly Process Feature | Pick and Place Cover |
| Operating Temperature Range | -22 – 221 |
| Contact Layout | Staggered |
| Packaging Method | Tape, Box |
| Packaging Quantity | 500 |
| Agency/Standard | UL |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Pre-Tin |
| RoHS | True |
| Termination Method to Printed Circuit Board | Surface Mount |
| Contact Base Material | Brass |
| Header Type | Shrouded |
| PCB Mount Alignment | With |
| UL Flammability Rating | UL 94V-0 |
| PCB マウント アラインメント タイプ | Locating Posts |
| Contact Current Rating (Max) (A) | 2 |
| Contact Retention | Without |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Wire Size | 28 – 24 |
