1-292253-2
Conn, Rect,Boardmount,PCB Plug,12 Cont,Thru-Hole,MT Series,0.079" Pin-Spng | TE Connectivity 1-292253-2
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-292253-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

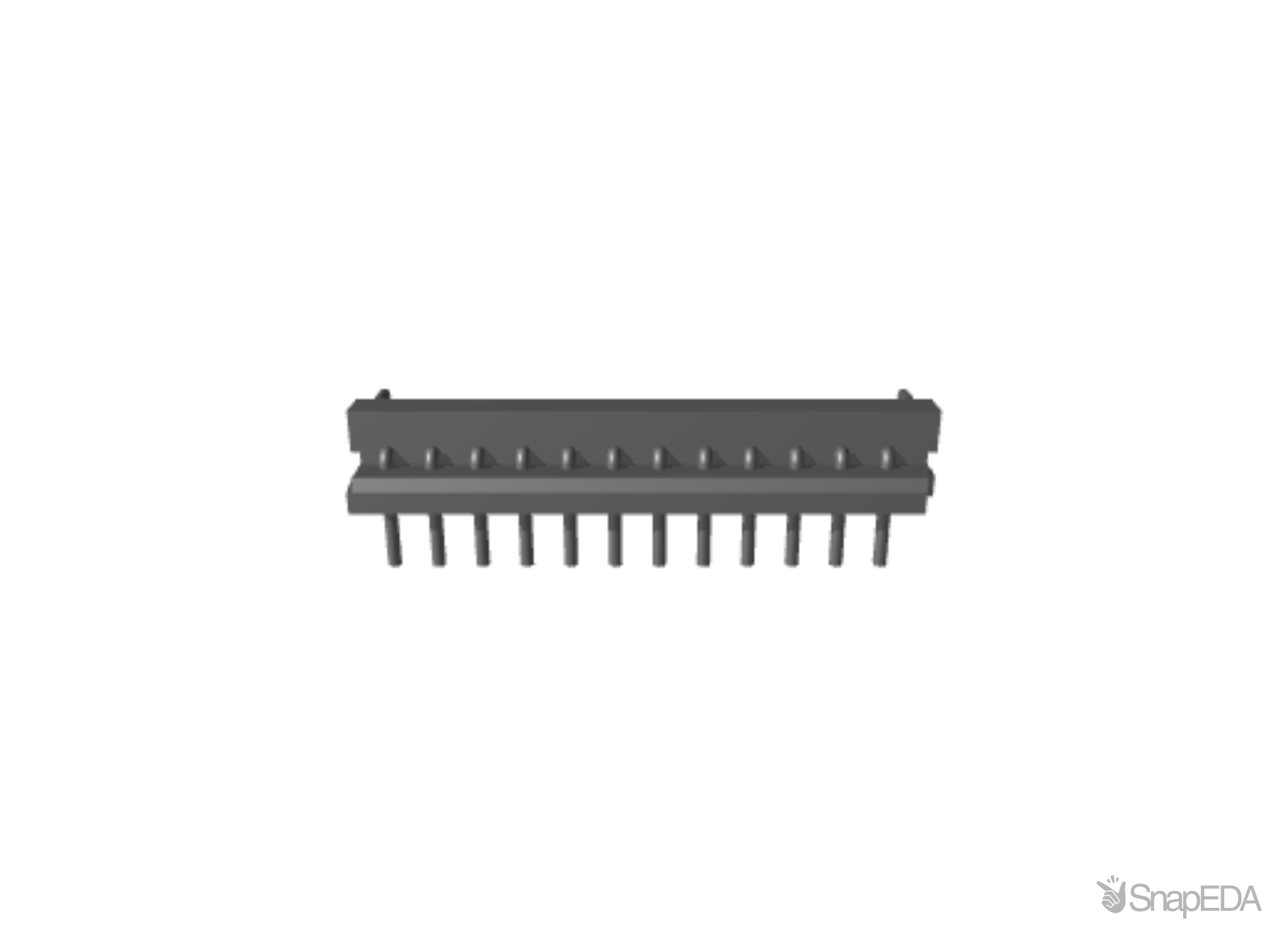

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-292253-2
| Part Name | 1-292253-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .079 |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | Nylon 6/6 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 125 |
| CSA File Number | LR 7189 |
| Number of Positions | 12 |
| PCB Mount Retention Type | Kinked Legs |
| Contact Design | Round Post |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .031 – .063 |
| Termination Post & Tail Length | .126 |
| Contact Current Rating (Max) (A) | 4 |
| Mating Post Length | 4.5 |
| TE Internal Number | 1-292253-2 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Connector Height | .346 |
| Number of Rows | 1 |
| Agency/Standard Number | CSA |
| Housing Color | Natural |
| Connector Width | .157 |
| Contact Mating Area Plating Material Finish | Matte |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Contact Shape | Round |
| PCB Contact Termination Area Plating Material Thickness | 1 |
| Contact Transmits (Typical) | Signal (Data) |
| Mating Retention | Without |
| Connector Length | 1.0157 |
| UL File Number | E28476 |
| Assembly Process Feature | Pick and Place Cover |
| Operating Temperature Range | -40 – 105 |
| Contact Layout | Inline |
| Packaging Method | Bag/Box |
| Packaging Quantity | 500 |
| Agency/Standard | UL |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Base Material | Brass |
| Header Type | Partially Shrouded |
| PCB Mount Alignment | Without |
| Mating Retention Type | Detent Windows |
| Contact Mating Area Plating Material Thickness | 1 |
| PCB Connector Assembly Type | PCB Mount Header |
| Contact Retention | Without |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Wire Size | 28 – 22 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
