1-322249-9
PG SPD FLG 22-16COMM22-18MIL 8
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-322249-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

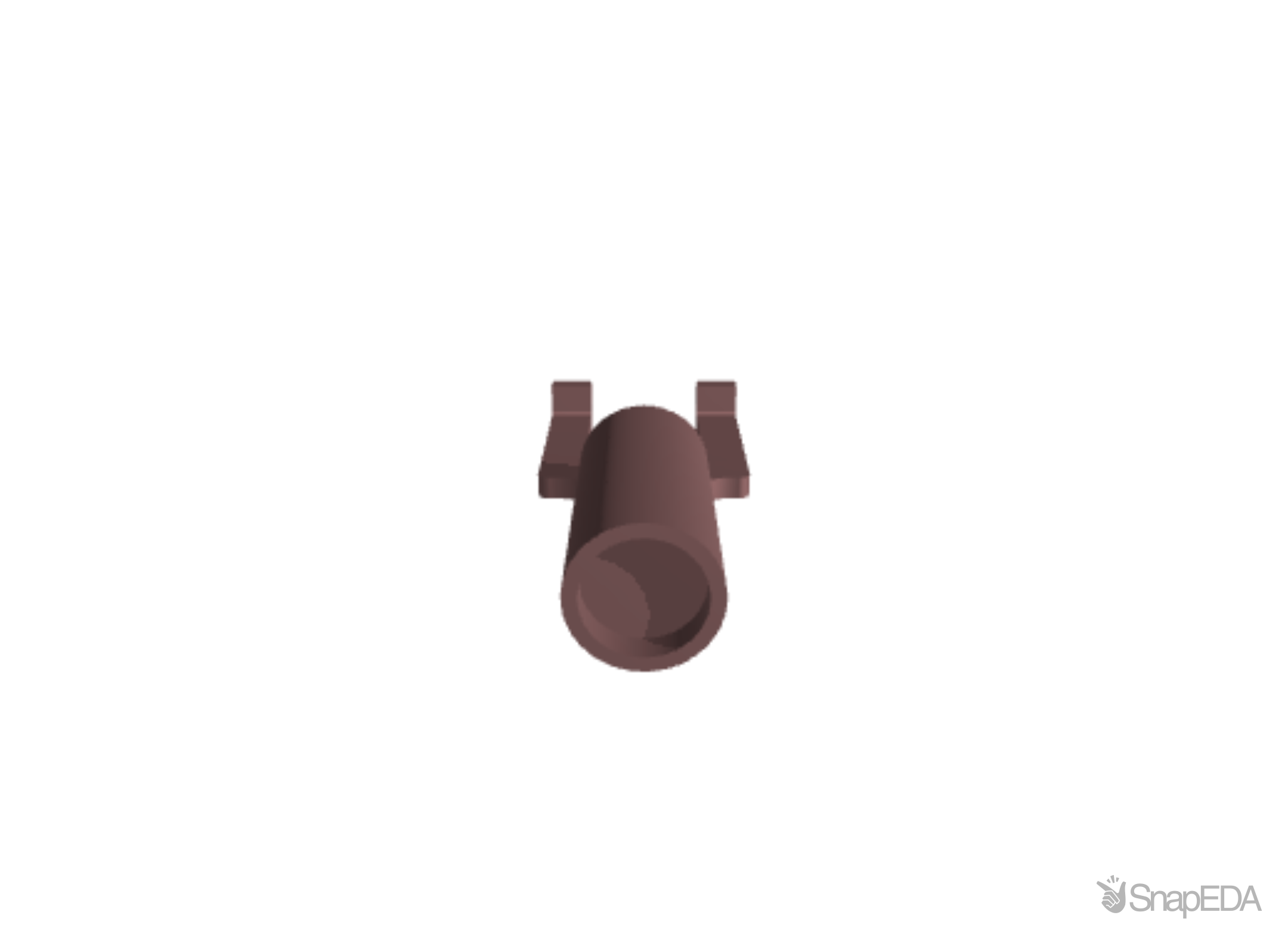

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-322249-9
| Part Name | 1-322249-9 |
| Manufacturer | TE Connectivity |
| Wire Insulation Diameter (Max) | .14 |
| Wire Insulation Diameter | .105 – .14 |
| Support Style | Insulation Support |
| Wire/Cable Type | Regular Wire |
| Terminal Angle | Straight |
| Insulated | Yes |
| Plating Material | Copper |
| TE Internal Number | 1-322249-9 |
| Voltage (Max) (V) | 600 |
| Stud Diameter | 4.34 |
| Overall Length | .749 |
| Sealable | No |
| Wire Insulation Support | With |
| Operating Temperature Range | 221 |
| Terminal & Splice Type | Spade Tongue |
| Packaging Method | Tape Mounted |
| Packaging Quantity | 5000 |
| Terminal Orientation | Offset |
| Barrel Type | Closed Barrel |
| RoHS | True |
| Shape Description | SPADE-025 |
| Weight per Piece | .155 |
| Heavy Duty | No |
| Stud Size | #8 |
| Government Qualified | No |
| Tongue Thickness | .79 |
| Wire Size | .3 – 1.42 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1-322249-9 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
14,116
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
|
5,000 x $0.75
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Newark |
|
2,500 x $0.71
|
Visit Site | |
| RS Americas |
|
|
Visit Site | |
| Sager |
|
5,000 x $0.85
|
Visit Site |
No issues have been reported for the 1-322249-9
