1-338313-2
AMPLIMITE HD-20 Series,9 Way Mount PCB D-sub Conn Socket,2.74mm Pitch | TE Connectivity 1-338313-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-338313-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

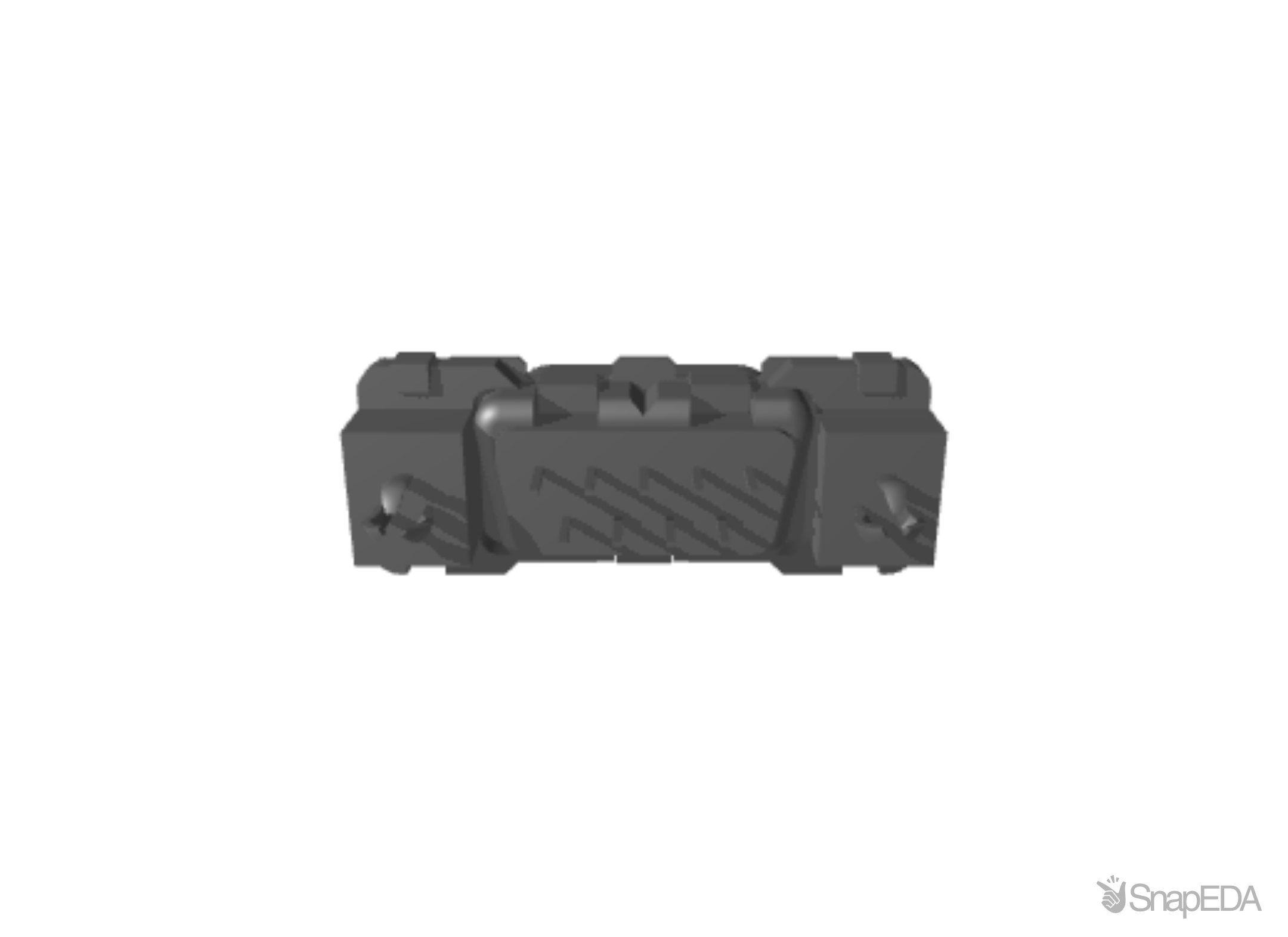

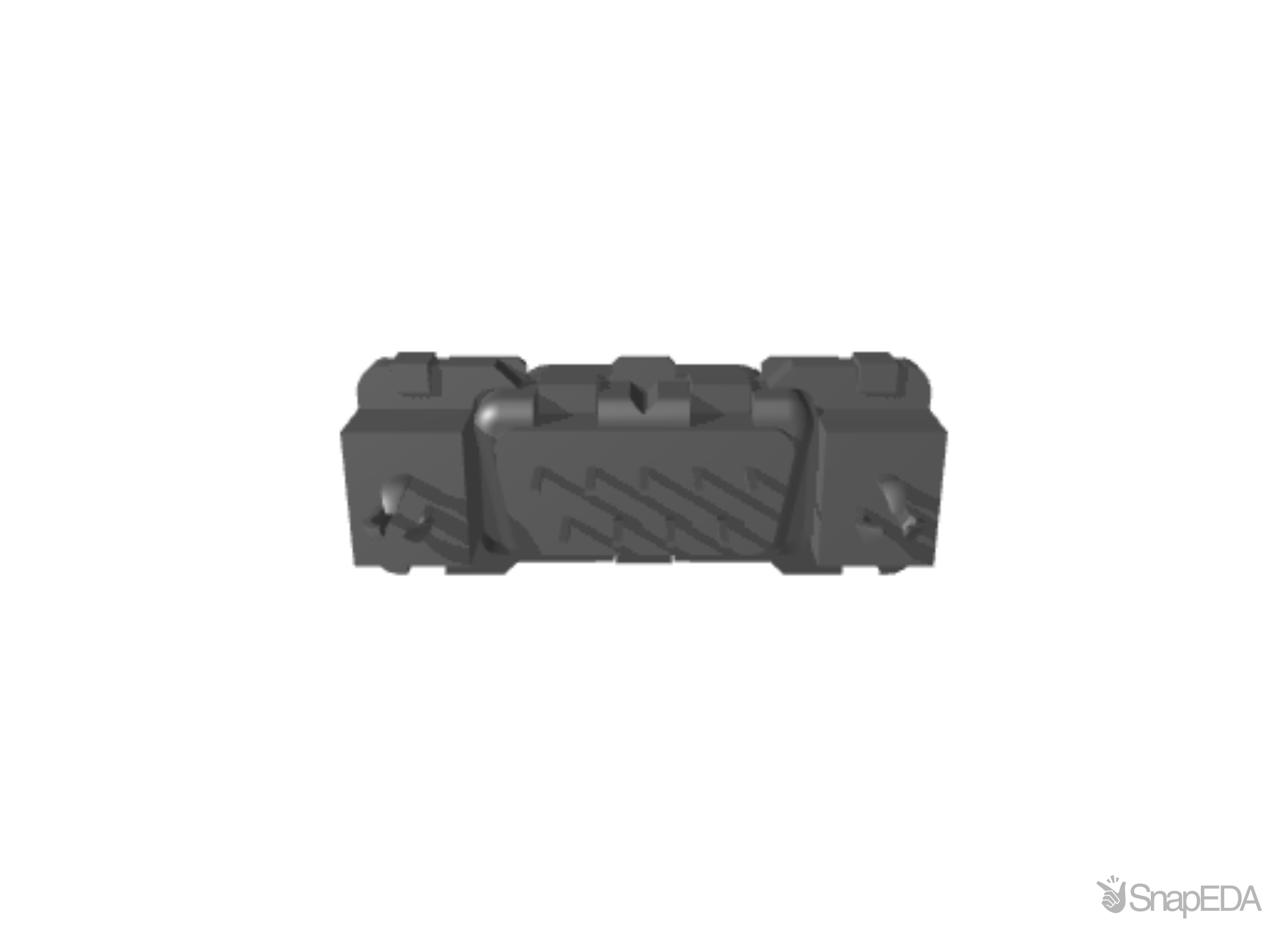

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-338313-2
| Part Name | 1-338313-2 |
| Manufacturer | TE Connectivity |
| Shell Plating Material | Tin |
| Category | Connectors |
| Centerline (Pitch) | 2.74 |
| Grounded | No |
| Shell Material | Steel |
| Circuit Application | Signal |
| Plastic | No |
| Housing Material | Glass Filled Polyester |
| Shell Size | 1 |
| Connector Style | Receptacle |
| Mating Connector Lock Type | Threaded Insert, 4-40 UNC |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Boardlock |
| Profile | Standard |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | 1.6 |
| Panel Mount Feature | Without |
| TE Internal Number | 1-338313-2 |
| PCB Mount Orientation | Vertical |
| Connector System | Cable-to-Board |
| Shielded | No |
| Number of Rows | 2 |
| Grounding Straps | Without |
| Housing Color | Black |
| Contact Underplating Material | Nickel |
| Contact Base Material | Phosphor Bronze |
| Boardlock Plating Material | Tin |
| Contact Shape | Round |
| Operating Temperature Range | -67 – 221 |
| Mounting Hole Diameter | 5 |
| Packaging Method | Tray |
| Packaging Quantity | 55 |
| Grounding Indents | Without |
| Sealable | No |
| Number of Positions | 9 |
| Contact Mating Area Plating Material | Gold |
| Product Type | Connector |
| RoHS | True |
| Approved Standards | DIN 41652 |
| PCB Mounting Style | Through Hole |
| Boardlock Material | Phosphor Bronze |
| 端子の下地めっきの材料 | Nickel |
| Termination Post Length | 3.2 |
| Color | Black |
| Grounding Clips | Without |
| Connector Mounting Type | Board Mount |
| Row-to-Row Spacing | 2.84 mm |
| Contact Current Rating (Max) (A) | 6 |
| Contact Mating Area Plating Thickness | 30 |
| Shell Type | Front Metal Shell |
| UL Flammability Rating | UL 94V-0 |
| PCB Contact Termination Area Plating Material | Tin |
| Performance Level | Level 2 |
| Preloaded | Yes |
| Mating Connector Lock | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | Amplimite HD-20 |
| Current Rating (A) | 6.0 (A) |
| Dimensions | 30.9 x 15.6 x 12.4 (mm) |
| Mounting Hardware | 4-40 UNC Threaded Inserts, Boardlocks |
| Gender | Female |
| Body Orientation | Straight |
| Termination Method | Solder |
| Length | 30.9 (mm) |
| Housing Material | PET |
| Width | 15.6 (mm) |
| Depth | 12.4 (mm) |
| Minimum Operating Temperature | -55.0 (°C) |
| Pitch | 2.74 (mm) |
| Mounting Type | Through Hole |
| Contact Plating | Gold |
| Number Of Contacts | 9 |
| Maximum Operating Temperature | +105 (°C) |
| Contact Material | Phosphor Bronze |
