1-353222-6
MULTILOCK 040/070 II Series 126 Way 4 Row Female Right Angle PCB Housing | TE Connectivity 1-353222-6
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-353222-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

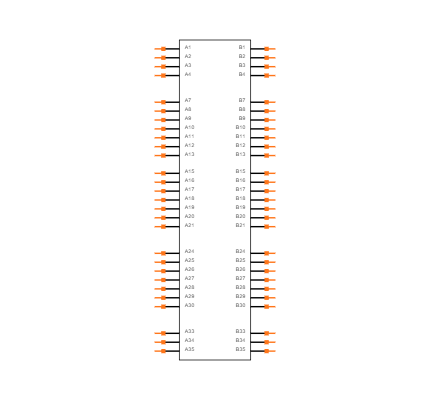

Symbol
No web preview
This Symbol is Available for

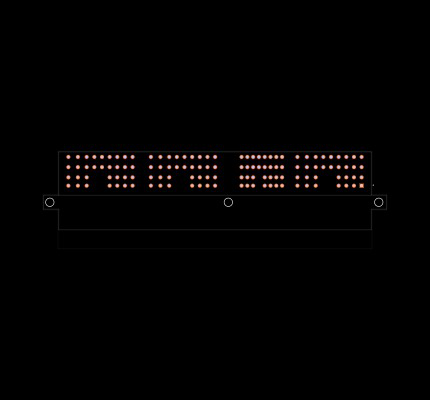

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-353222-6
| Part Name | 1-353222-6 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .161 |
| Circuit Application | Signal |
| UL Flammability Rating | UL 94-HB |
| Width | 147.9 |
| Operating Voltage (V) | 12 |
| Number of Positions | 126 |
| PCB Mount Retention | With |
| Tab Thickness | .025 |
| PCB Thickness (Recommended) | 1.6 |
| Operating Temperature (Max) | 100 |
| TE Internal Number | 1-353222-6 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Alignment | Without |
| Number of Rows | 4 |
| Voltage Rating (Max) (V) | 12 |
| Termination Method | Through Hole - Solder |
| Number of Signal Positions | 126 |
| Sealable | No |
| Hybrid Header | Yes |
| Nominal Voltage Architecture (V) | 12 |
| Mounting Orientation | Horizontal/90 |
| Operating Temperature Range | -30 to 105 |
| Shielded | No |
| Mounting Holes | With |
| Locking Interface | With |
| Packaging Quantity | 15 |
| Length | 41.55 |
| RoHS | True |
| Tab Width | .071 |
| Color | Gray |
| Number of Sections | 4 |
| Profile Height from PCB | .984 |
| Packaging Type | Tray |
| Panel Mount Feature | Without |
| Interface Plating | Tin (Sn) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Cable Mount |
| Series | MULTILOCK 040/070 II |
| Body Orientation | Right Angle |
| Housing Material | PBT |
| Width | 25 (mm) |
| Length | 147.9 (mm) |
| Number Of Rows | 4 |
| Gender | Female |
| For Use With | High Density Connector |
| Number Of Contacts | 126 |
