1-353715-2

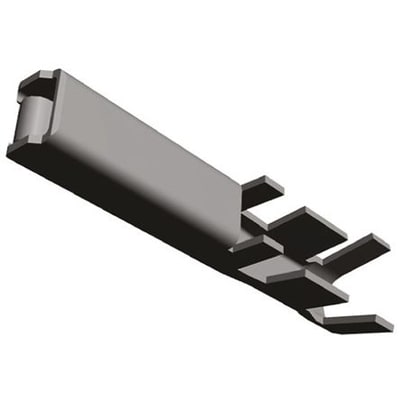

Dynamic 3000 PCB Conn Contact, Female, Crimp, Gold Plating 14 - 16 AWG | TE Connectivity 1-353715-2
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-353715-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-353715-2
| Part Name | 1-353715-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Underplate Material Thickness | 1.3 |
| Centerline (Pitch) | 5.08 |
| Circuit Application | Power & Signal |
| Contact Classification | Signal |
| Contact Mating Area Plating Material | Gold |
| Wire/Cable Type | Discrete Wire |
| Operating Voltage (V) | 250 |
| For Use With | Tab Contact |
| Connector & Contact Terminates To | Wire & Cable |
| Contact Retention Type | Locking Lance |
| Termination Method to Wire & Cable | Crimp |
| TE Internal Number | 1-353715-2 |
| Connector System | Wire-to-Wire |
| Contact Mating Area Plating Thickness | 15 |
| Contact Underplating Material | Nickel |
| Contact Base Material | Copper Alloy |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Operating Temperature Range | -67 – 221 |
| Overall Length | .72 |
| Packaging Method | Reel |
| Packaging Quantity | 3000 |
| Accepts Wire Insulation Diameter Range | .122 – .13 |
| Barrel Type | Open Barrel |
| RoHS | True |
| 端子の下地めっきの材料 | Nickel |
| Wire Range Mark | 3L |
| Contact Current Rating (Max) (A) | 15 |
| Contact Retention | With |
| High Current (A) | Yes |
| Contact Type | Socket |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Wire Size | 1.23 – 2.27 |
