1-440054-1
Conn Shrouded Header (3 Sides) HDR 11 POS 2mm Solder ST Thru-Hole Bag
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-440054-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

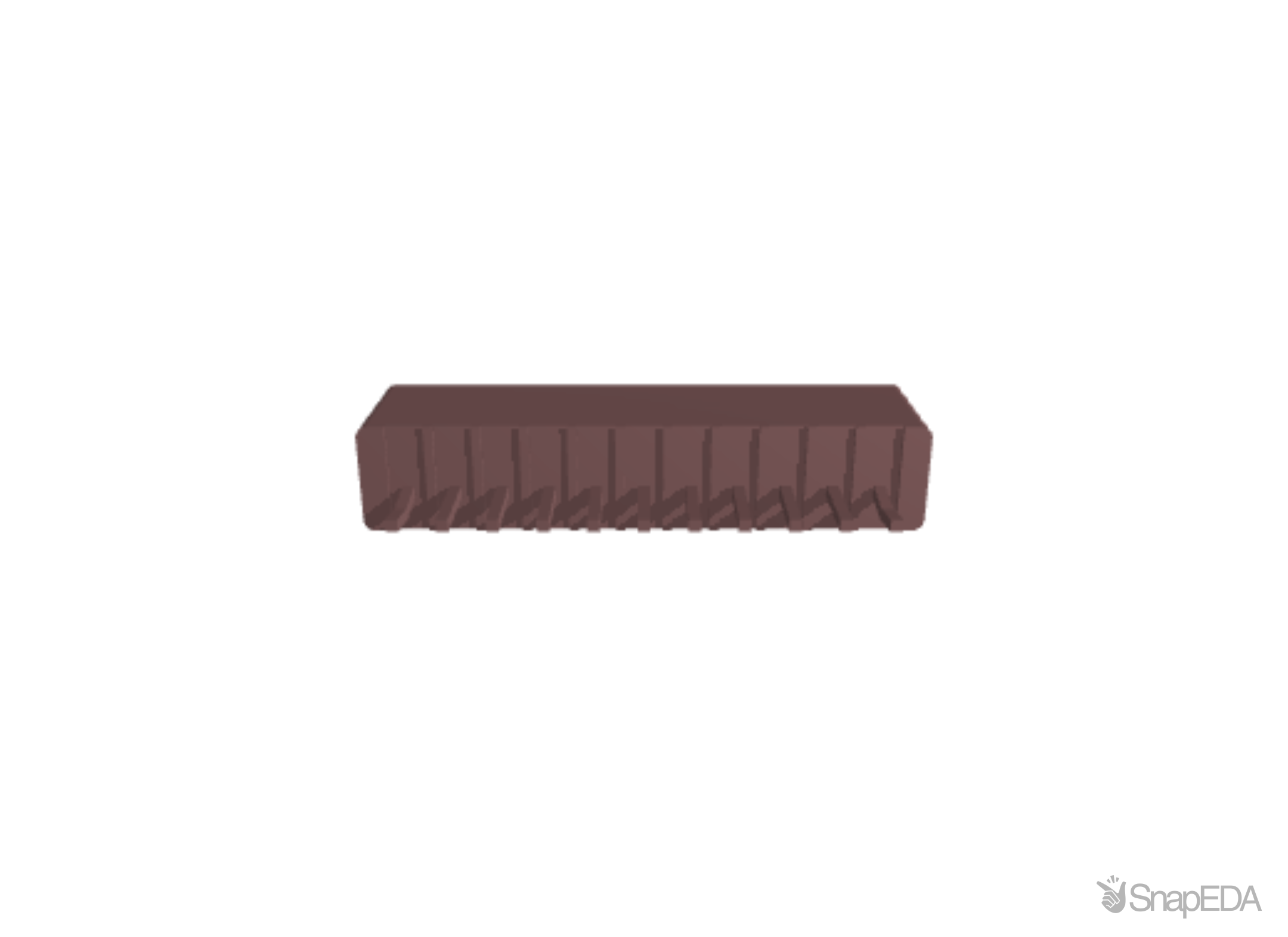

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-440054-1
| Part Name | 1-440054-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2 |
| Housing Material | Nylon 66 GF |
| Operating Voltage (V) | 250 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Kinked Tines |
| Contact Retention Type | Locking Lance |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .039 – .063 |
| Termination Post & Tail Length | .134 |
| PCB Connector Assembly Type | PCB Mount Header |
| Mating Post Length | .131 |
| TE Internal Number | 1-440054-1 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Connector Height | 6.05 |
| Number of Rows | 1 |
| Housing Color | Natural |
| Connector Width | .185 |
| Contact Mating Area Plating Material Finish | Bright |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Contact Shape | Square |
| Mating Retention | Without |
| Connector Length | .9449 |
| Header Type | Partially Shrouded |
| Operating Temperature Range | -13 – 185 |
| Packaging Method | Bag |
| Packaging Quantity | 300 |
| Number of Positions | 11 |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Base Material | Brass |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Current Rating (Max) (A) | 3 |
| Contact Retention | With |
| PCB Contact Termination Area Plating Material Finish | Bright |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Wire Size | 30 – 24 |
