1-487545-9
Socket Receptacle Connector 022 HOUSING FFC RCPT 050CL SR 22 POS
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-487545-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

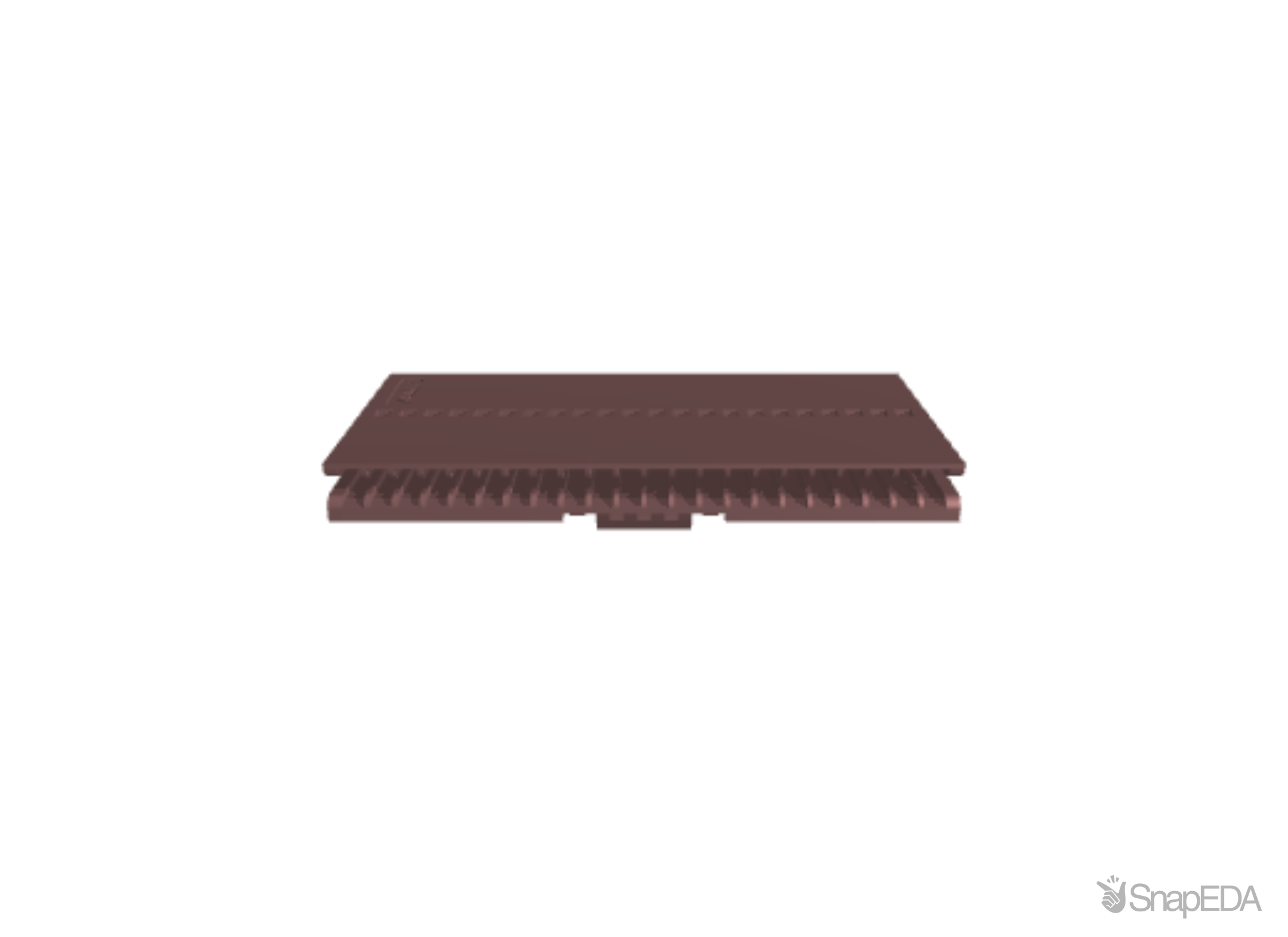

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-487545-9
| Part Name | 1-487545-9 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .05 |
| Circuit Application | Signal |
| Cable Entry | Straight |
| Mating Retention Type | Latch |
| Mating Retention | With |
| Wire/Cable Type | FFC |
| Flame Retardant | Yes |
| Connector Style | Receptacle |
| Connector & Contact Terminates To | Wire & Cable |
| TE Internal Number | 1-487545-9 |
| Number of Positions | 22 |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Housing Color | Black |
| Sealable | No |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Dielectric Withstanding Voltage (Max) (V) | 300 |
| Insertion Force Type | Normal |
| Operating Temperature Range | -67 – 221 |
| Packaging Method | Carton |
| Connector Type | Housing |
| Packaging Quantity | 400 |
| Mating Alignment | With |
| RoHS | True |
| Housing Material | Polyester |
| Color | Black |
| UL Flammability Rating | UL 94V-0 |
| Panel Mount Feature | Without |
| Type of Connector | Rectangular |
| Voltage (V) | 100 VAC |
| Contact Type | Socket |
| Insulation Resistance | 5000 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1-487545-9 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
4,095
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Chip One Stop |
9,655
|
|
Visit Site | |
| Conrad |
9,655
|
1 x $3.25
|
Visit Site | |
| Farnell UK |
8,690
|
|
Visit Site | |
| Heilind Americas |
|
4,800 x $3.30
|
Visit Site | |
| Mouser |
|
4,800 x $3.54
|
Visit Site | |
| Newark |
9,655
|
1 x $4.87
|
Visit Site | |
| Onlinecomponents |
2,011
|
|
Visit Site | |
| Powell Electronics |
6,372
|
|
Visit Site | |
| Sager |
|
1,600 x $4.12
|
Visit Site | |
| TE Store |
4,095
|
|
Visit Site | |
| TME |
100
|
|
Visit Site | |
| Verical |
100
|
|
Visit Site |
No issues have been reported for the 1-487545-9
If you experienced any issues with this part, please report it.
