1-5111595-5
Conn IDC Connector PL 80 POS 2.54mm Solder RA Thru-Hole Tray
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-5111595-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

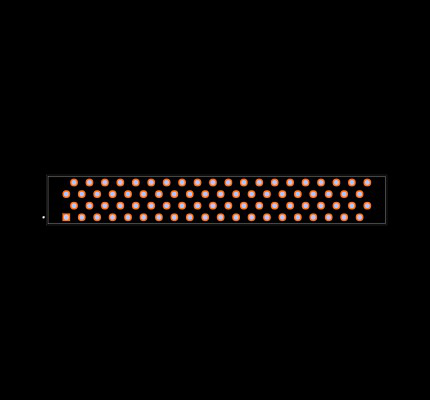

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-5111595-5
| Part Name | 1-5111595-5 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .64 |
| Circuit Application | Signal |
| Housing Material | Thermoplastic |
| Row-to-Row Spacing | 2 |
| Contact Termination Type | Through Hole |
| Insulation Resistance | 5000 |
| Operating Voltage (V) | 30 |
| Ejection Latches | Without |
| Connector Style | Plug |
| Connector & Contact Terminates To | Printed Circuit Board |
| Contact Design | Square Post |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .062 |
| Board Standoff | Without |
| TE Internal Number | 1-5111595-5 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Mating Retention | Without |
| Number of Rows | 4 |
| Housing Color | Black |
| Header Type | Shrouded |
| Wire/Cable Size | 32 30 AWG |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Termination Method to Wire & Cable | Insulation Displacement Crimp (IDC) |
| Contact Transmits (Typical) | Signal (Data) |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Operating Temperature Range | -65 to 105 |
| Wire/Cable Type | Ribbon Cable |
| Packaging Method | Tray |
| Connector Type | Connector Assembly |
| Packaging Quantity | 70 |
| Length | 55.52 |
| Number of Positions | 80 |
| Mating Alignment | With |
| Contact Termination Area Plating Thickness | 100 |
| Polarization | With |
| Contact Base Material | Copper Alloy |
| Termination Post Length | 2.54 |
| Cover Material | Polyester |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Height | 6.93 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | .5 |
| Contact Mating Area Plating Thickness | 100 |
| Type of Connector | Paddleboard |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| ??? | Mates with Receptacles |
| Mating Connector Lock | Without |
