1-5148020-5
48 Position Din Connector Plug, Male Pins Through Hole, Right Angle
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-5148020-5 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

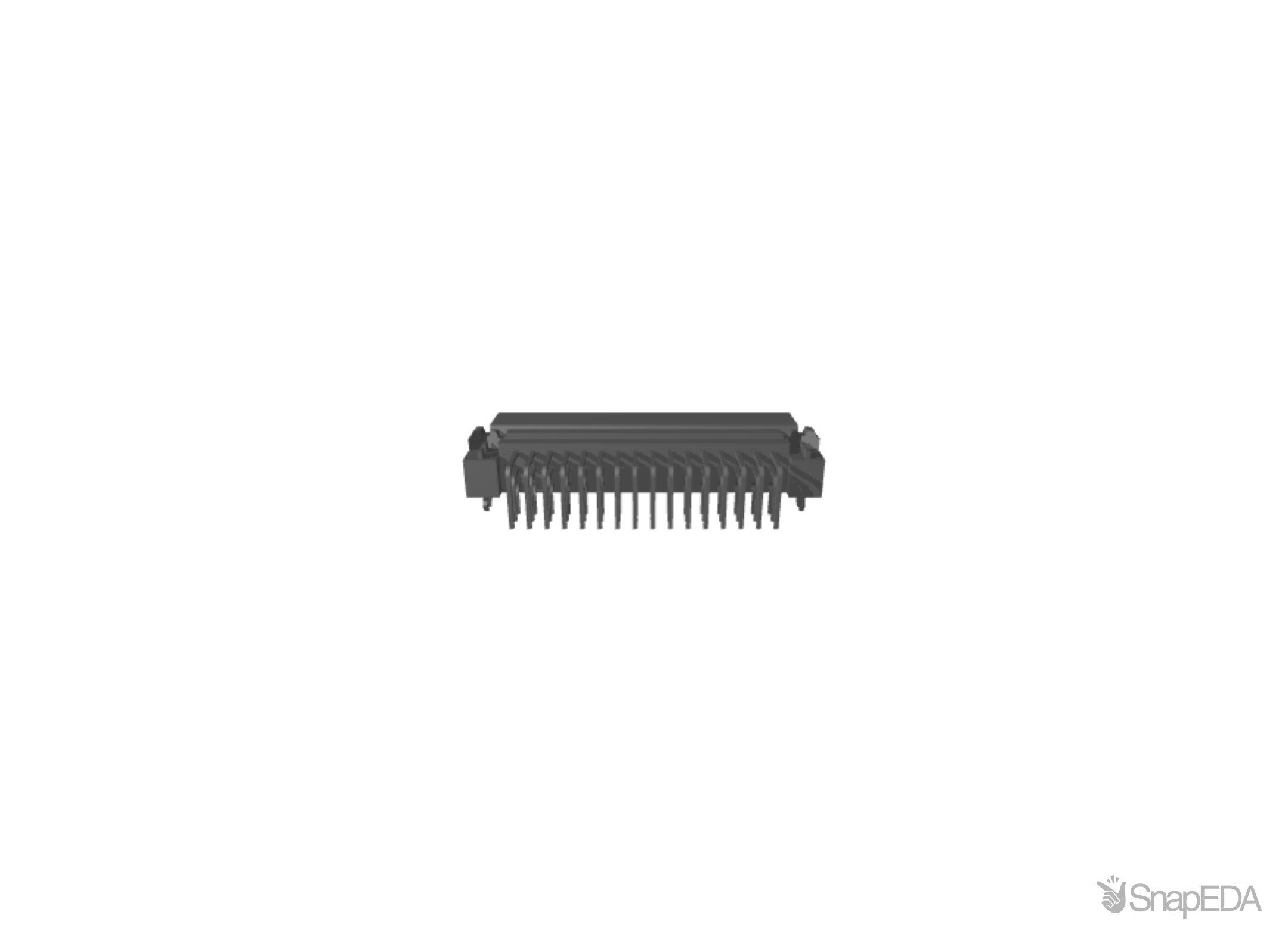

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-5148020-5
| Part Name | 1-5148020-5 |
| Manufacturer | TE Connectivity |
| Number of Columns | 16 |
| Centerline (Pitch) | 2.54 |
| Operating Temperature Range | -55 – 105 |
| Circuit Application | Signal |
| Number of Positions | 48 |
| Connector Style | Plug |
| Connector & Contact Terminates To | Printed Circuit Board |
| DIN Size | Half |
| Connector System | Board-to-Board |
| Sealable | No |
| Termination Post & Tail Length | 2.64 |
| Rows Loaded | A, B, C |
| TE Internal Number | 1-5148020-5 |
| PCB Mount Orientation | Right Angle |
| Row-to-Row Spacing | 2.54 |
| DIN Level | II |
| Number of Rows | 3 |
| Number of Signal Positions | 48 |
| Board-to-Board Configuration | Right Angle |
| Connector Mounting Type | Board Mount |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
No issues have been reported for the 1-5148020-5
