1-5178751-0
AMPMODU 2MM HDR V-TYPE ASSY
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-5178751-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

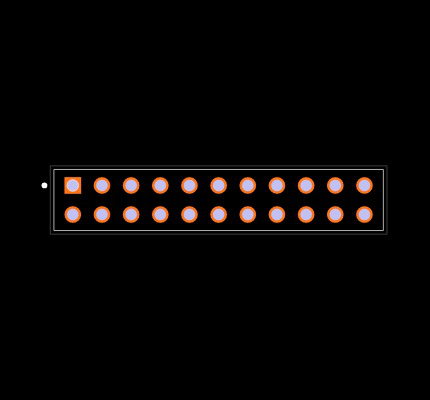

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-5178751-0
| Part Name | 1-5178751-0 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .079 |
| Dielectric Withstanding Voltage (V) | 500 |
| Pick and Place Cover | Without |
| PCB Contact Termination Area Plating Material | Tin |
| Termination Method to Printed Circuit Board | Through Hole |
| For Use With | Receptacles |
| Insulation Resistance | 5000 |
| PCB Contact Termination Area Plating Thickness | 39.37 |
| Selectively Loaded | No |
| Boss | No |
| Number of Positions | 22 |
| PCB Mount Retention | Without |
| Post Numbers Omitted | None |
| PCB Thickness (Recommended) | .02 |
| Contact Current Rating (Max) (A) | 1 |
| Mating Post Length | 4 |
| TE Internal Number | 1-5178751-0 |
| PCB Mount Orientation | Vertical |
| Number of Rows | 2 |
| Housing Color | Black |
| Header Type | Breakaway |
| Contact Base Material | Brass |
| Housing Entry Style | Closed Top |
| Contact Shape | Square |
| Connector Assembly Type | PCB Mount Header |
| Operating Temperature Range | -40 to 105 |
| Packaging Method | Box |
| Connector Type | Connector Assembly |
| Packaging Quantity | 500 |
| Tail Length | .06 |
| Contact Mating Area Plating Material | Gold |
| Solder Tail Contact Plating Material Finish | Tin: Matte |
| Housing Material | Thermoplastic |
| Product Type | Connector |
| Termination Post Length | .059 |
| Post Size | .02 |
| UL Flammability Rating | UL 94V-0 |
| Height | .216 |
| Row-to-Row Spacing | .079 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Contact Mating Area Plating Thickness | 8 |
| Voltage (V) | 200 |
| Contact Type | Pin |
| Stackable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
