1-533935-2
HDI PIN ASSY 4 ROW 140 POS
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-533935-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

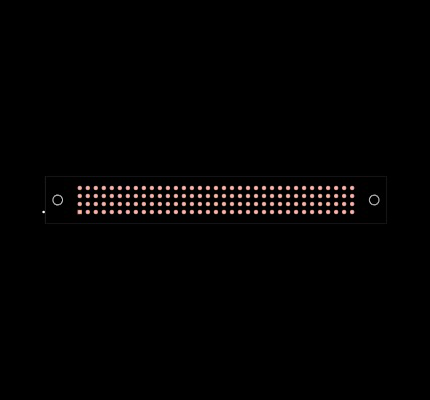

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-533935-2
| Part Name | 1-533935-2 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Keyed |
| Centerline (Pitch) | 2.54 |
| Circuit Application | Signal |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Insulation Resistance | 4 |
| Number of Positions | 140 |
| PCB Mount Retention Type | Action/Compliant Tail |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | 1.27 |
| Termination Post & Tail Length | 4.83 |
| Contact Current Rating (Max) (A) | 3 |
| Mating Post Length | .21 |
| TE Internal Number | 1-533935-2 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Connector Height | .462 |
| Number of Rows | 4 |
| Housing Color | Black |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -85 – 257 |
| Packaging Method | Tube |
| Packaging Quantity | 5 |
| Contact Configuration | Four-Beam |
| Contact Layout | Matrix |
| Contact Type | Pin |
| Connector & Contact Terminates To | Printed Circuit Board |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Gold |
| Stackable | No |
| RoHS | N |
| Life Cycle Status | Factory Special Order |
| Housing Material | Thermoplastic |
| Contact Base Material | Phosphor Bronze |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 50 |
| PCB Connector Assembly Type | PCB Mount Header |
| High Temperature Compatible | Yes |
| Solder Process Feature | Board Standoff |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| Board-to-Board Configuration | Vertical |
| Make First / Break Last | No |
