1-5406721-3
Conn RJ-45 F 8 POS 1.01mm Solder RA SMD 8 Terminal 1 Port Cat 5 T/R
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-5406721-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

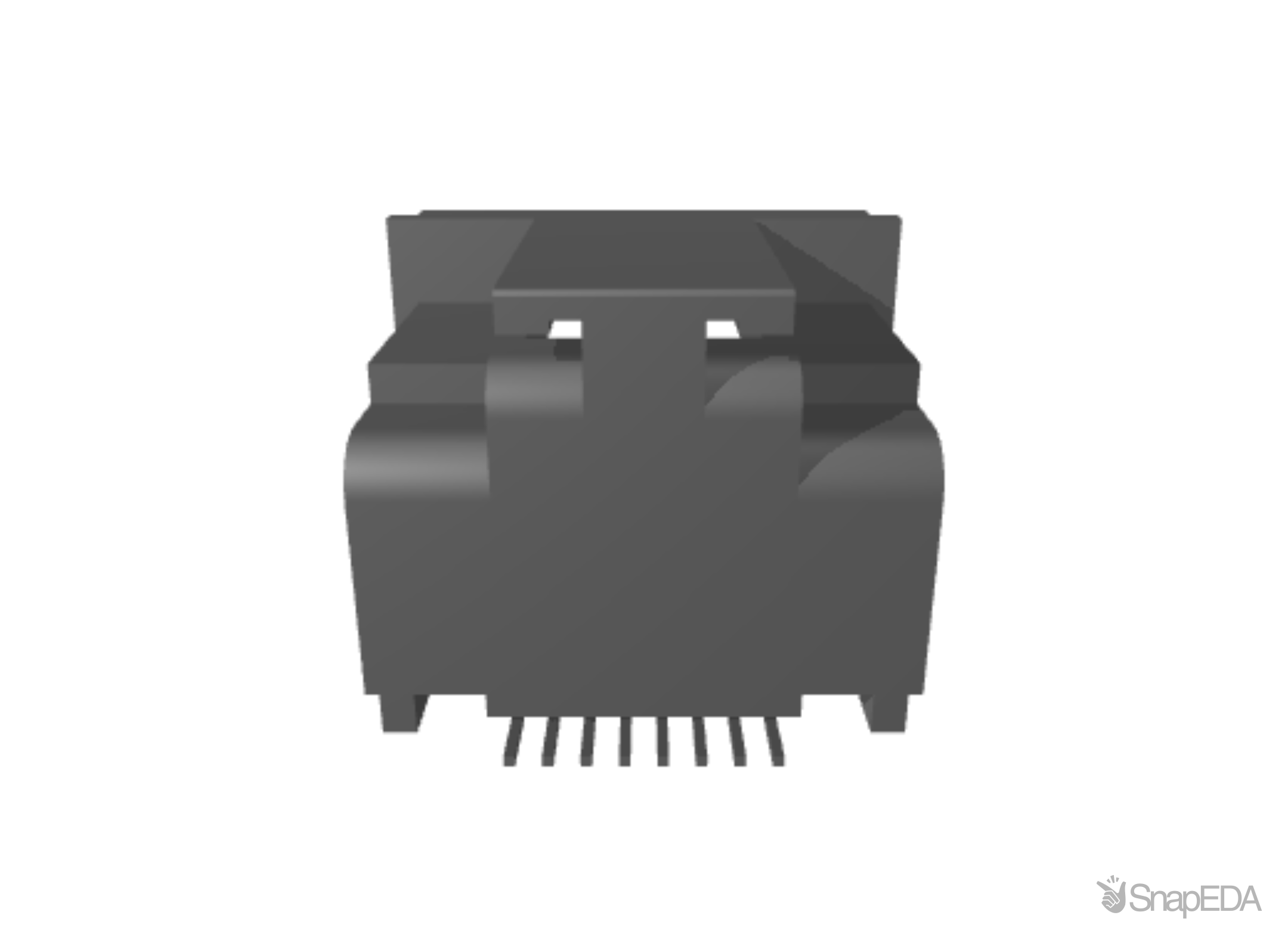

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-5406721-3
| Part Name | 1-5406721-3 |
| Manufacturer | TE Connectivity |
| コネクタ製品タイプ | Connector Assembly |
| Centerline (Pitch) | .04 |
| Circuit Application | Signal |
| Port Configuration | Single Port |
| Connector Product Type | Connector Assembly |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | High Temperature Thermoplastic |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 8 |
| PCB Mount Retention Type | Boardlock |
| Number of Loaded Positions | 8 |
| Grounding Options | None |
| PCB Thickness (Recommended) | .062 |
| Connectors & Connector Components Type | Connector |
| TE Internal Number | 1-5406721-3 |
| PCB Tail Length | 1.52 |
| PCB Mount Orientation | Right Angle |
| Status Indicator | None |
| Connector Height | 12.4 |
| Housing Color | Black |
| Contact Underplating Material | Nickel |
| Contact Base Material | Copper Alloy |
| Connector Mounting Type | Panel |
| Operating Temperature Range | -40 – 158 |
| Shielded | No |
| Mating Entry Location | Side |
| Connector Profile | Low |
| Packaging Method | Tape & Reel |
| Packaging Quantity | 650 |
| Keyed | No |
| Modular Jacks & Plugs Products | RJ Type Jacks & Plugs |
| Contact Mating Area Plating Material | Gold |
| Panel Mount Feature Type | Panel Stops |
| Modular Jack & Plug Interface Type | RJ45 |
| RoHS | True |
| Connector Contact Density | Standard |
| Termination Method to Printed Circuit Board | Surface Mount |
| Boardlock Material | Phosphor Bronze |
| 端子の下地めっきの材料 | Nickel |
| Modular Connector Style | Jack |
| Performance Category | Cat 5 |
| Modular Jack Latch Orientation | Inverted - Latch Up |
| Contact Mating Area Plating Material Thickness | 30 |
| Panel Mount Feature | With |
| Port Matrix Configuration | 1 x 1 |
| PCB Contact Termination Area Plating Material | Tin |
| Packaging Reel Diameter | 56 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 1-5406721-3 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,951
|
|
Visit Site | |
| Onlinecomponents |
600
|
|
Visit Site | |
| Verical |
600
|
|
Visit Site |
No issues have been reported for the 1-5406721-3
