1-5499345-2
Connector Header Through Hole, Right Angle 64 position 0.100" (2.54mm)
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-5499345-2 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

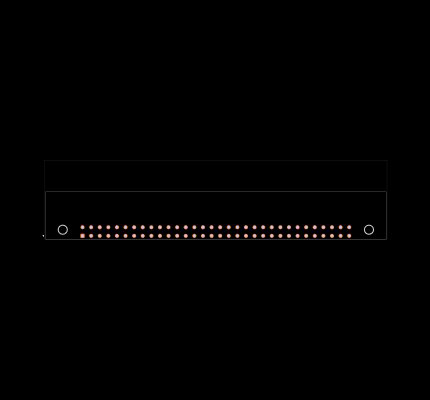

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-5499345-2
| Part Name | 1-5499345-2 |
| Manufacturer | TE Connectivity |
| Latch Color | Black |
| Mating Alignment Type | Center & Dual |
| Centerline (Pitch) | 2.54 |
| Temperature Rating | Standard |
| Circuit Application | Signal |
| Housing Style | 4-Sided |
| Housing Material | Glass Filled Nylon/Polyester |
| Latch Type | Short |
| Contact Termination Area Plating Thickness | 100 |
| Insulation Resistance | 1000 5000 |
| Operating Voltage (V) | 250 |
| Panel Mount Feature Type | Mounting Ears |
| Connector Style | Plug |
| Mating Connector Lock Type | Latch |
| Height | 13.94 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Contact Design | Square Post |
| PCB Mount Retention | Without |
| Post Numbers Omitted | None |
| Connector System | Board-to-Board |
| PCB Thickness (Recommended) | .062 |
| Panel Mount Feature | Without |
| Board Standoff | Without |
| TE Internal Number | 1-5499345-2 |
| Number of Positions | 64 |
| PCB Mount Alignment | Without |
| Solder Tail Contact Plating Thickness | Nickel: 50 |
| Number of Rows | 2 |
| Housing Color | Black |
| Header Type | Universal Ejection Pin Headers |
| Contact Underplating Material | Nickel |
| Contact Base Material | Brass |
| Connector Mounting Type | Board Mount |
| Contact Shape | Square |
| Profile | Standard |
| Mating Retention | With |
| Ejection Latches | With |
| Operating Temperature Range | -65 to 105 |
| Contact Retention in Housing | Press-Fit |
| Packaging Method | Tray |
| Connector Type | Header |
| Packaging Quantity | 24 |
| Contact Termination Area Plating Material | Tin |
| Length | 1.46 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold Flash over Palladium Nickel or Gold over Nickel |
| PCB Mount Orientation | Right Angle |
| Shrouded End Dimension | 3.81 |
| Contact Transmits (Typical) | Signal (Data) |
| Solder Tail Contact Plating Material Finish | Matte |
| Polarization | With |
| Product Type | Connector |
| Termination Post Length | 2.79 |
| Post Size | .025 |
| UL Flammability Rating | UL 94V-0 |
| Latch Material | Thermoplastic with Glass Fill |
| Row-to-Row Spacing | 2.54 |
| Contact Current Rating (Max) (A) | 1 |
| Contact Mating Area Plating Thickness | .76 |
| Termination Method to Printed Circuit Board | Through Hole |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| ??? | Receptacles Without Strain Relief |
| Mating Connector Lock | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
