1-5747872-6

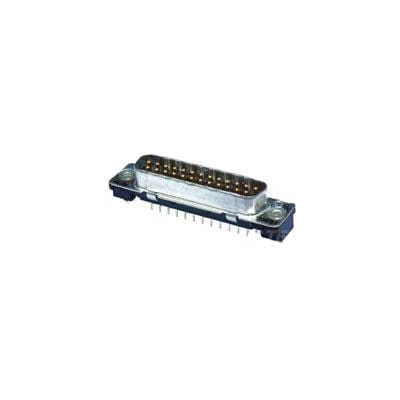

D-Sub Plug, Front Metal Shell, Size 2, 15-Pos, 2.74mm, HD20 Series | TE Connectivity 1-5747872-6
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-5747872-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-5747872-6
| Part Name | 1-5747872-6 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Shell Plating Material | Tin |
| Centerline (Pitch) | 2.74 |
| Grounded | Yes |
| Shell Material | Carbon Steel |
| Circuit Application | Signal |
| Plastic | No |
| Housing Material | Thermoplastic |
| Connector & Contact Terminates To | Printed Circuit Board |
| Female Screwlock Material | Zinc |
| Shell Size | 2 |
| Connector Style | Plug |
| Mating Connector Lock Type | Female Screwlocks, Fixed |
| Preloaded | Yes |
| PCB Mount Retention Type | Mounting Hole |
| Profile | Standard |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .093 – .125 |
| Panel Mount Feature | Without |
| TE Internal Number | 1-5747872-6 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Number of Rows | 2 |
| Grounding Straps | Without |
| Housing Color | Black |
| Contact Underplating Material | Nickel |
| Contact Base Material | Brass |
| Connector Mounting Type | Board Mount |
| Contact Shape | Round |
| Operating Temperature Range | -67 – 221 |
| Mounting Hole Diameter | .12 |
| Packaging Method | Tube |
| Packaging Quantity | 13 |
| Grounding Indents | With |
| 端子の下地めっきの材料 | Nickel |
| Number of Positions | 15 |
| Contact Mating Area Plating Material | Gold |
| PCB Mounting Style | Through Hole |
| Approved Standards | UL E28476 |
| Sealable | No |
| Termination Post Length | .17 |
| Shell Type | Front Metal Shell |
| Post Size | .026 |
| Grounding Clips | Without |
| Row-to-Row Spacing | 2.84 mm |
| Contact Current Rating (Max) (A) | 6 |
| Contact Mating Area Plating Thickness | 30 |
| Product Type | Connector |
| UL Flammability Rating | UL 94V-0 |
| PCB Contact Termination Area Plating Material | Tin |
| Mating Connector Lock | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Series | Amplimite HD-20 |
| Contact Size | 20 |
| Dimensions | 1.541 x 0.471 x 0.494 (in) |
| Mounting Hardware | 4-40 UNC, Female Screw Lock |
| Voltage Rating (V) | 250.0 V |
| Gender | Male |
| Body Orientation | Straight |
| Termination Method | Solder |
| Length | 1.541 (in) |
| Housing Material | Thermoplastic |
| Width | 0.471 (in) |
| Depth | 0.494 (in) |
| Minimum Operating Temperature | -55.0 (°C) |
| Pitch | 2.743 (mm) |
| Mounting Type | Through Hole |
| Contact Plating | Gold |
| Number Of Contacts | 15 |
| Maximum Operating Temperature | +105 (°C) |
| Contact Material | Brass |
