1-640452-1

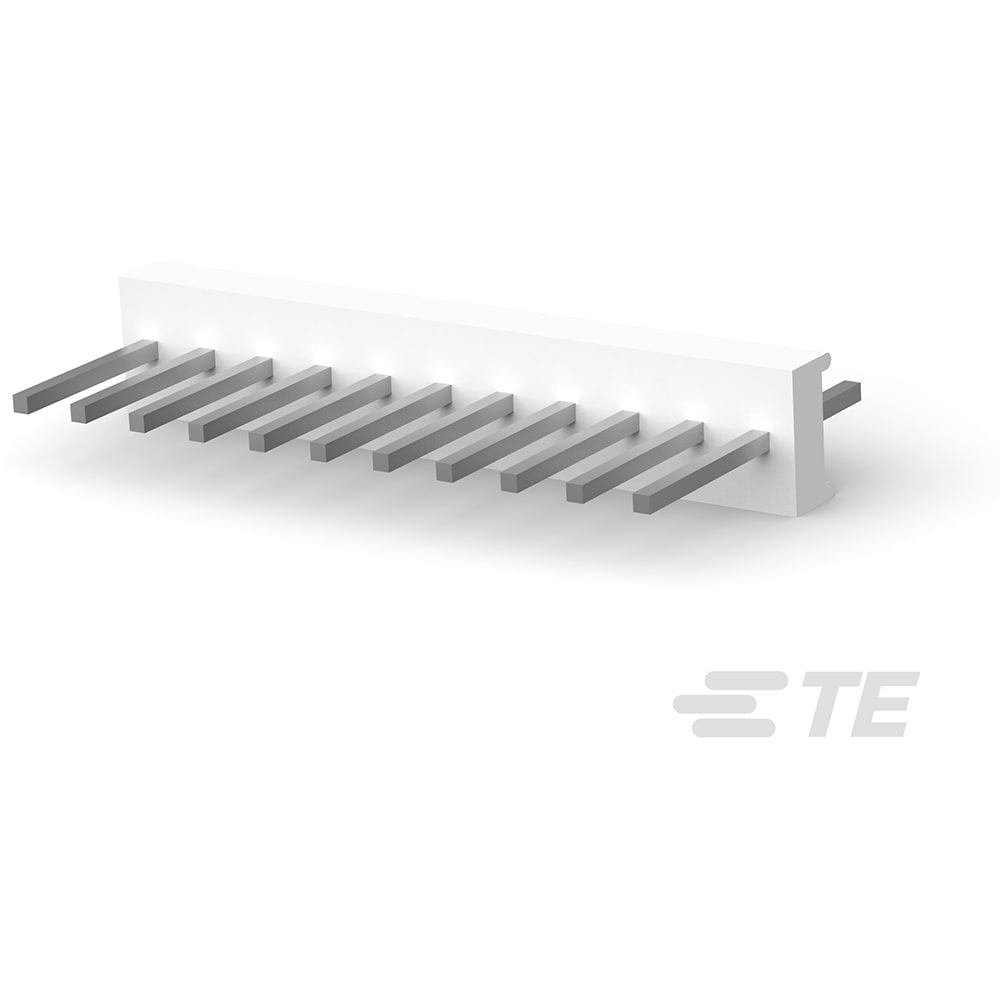

Header Assembly 11P MTA100 SQ STR MTA-100 Series | TE Connectivity 1-640452-1
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 1-640452-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

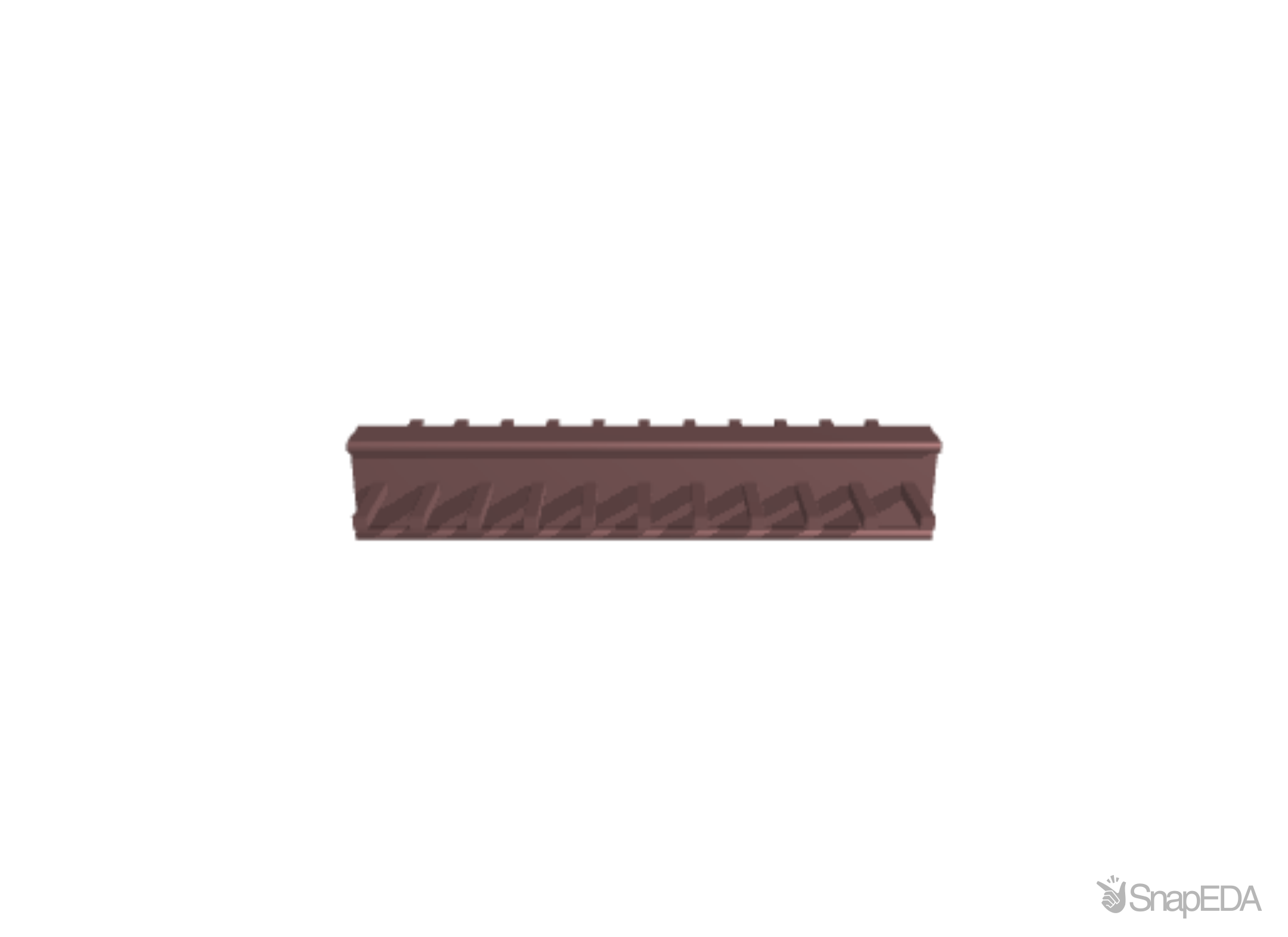

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 1-640452-1
| Part Name | 1-640452-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | 2.54 |
| Circuit Application | Signal |
| Contact Underplating Material Thickness | 1.27 |
| Housing Material | Polyester - GF |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 250 |
| Number of Positions | 11 |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 1.6 |
| Termination Post & Tail Length | 3.56 |
| CSA File Number | LR7189 |
| UL 定格 | Recognized |
| PCB Connector Assembly Type | PCB Mount Header |
| TE Internal Number | 1-640452-1 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Connector Height | .1 |
| Number of Rows | 1 |
| PCB Contact Termination Area Plating Material Thickness | 150 |
| Header Type | Unshrouded |
| Contact Underplating Material | Nickel |
| Contact Base Material | Copper Alloy |
| Connector Mounting Type | Board Mount |
| Contact Shape | Square |
| Housing Color | Natural |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector Length | 30.48 |
| UL File Number | E28476 |
| Operating Temperature Range | -55 – 105 |
| Contact Layout | Inline |
| Strain Relief | Without |
| Packaging Method | Package |
| Packaging Quantity | 1 |
| Agency/Standard | UL |
| Sealable | No |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Tin |
| CSA Rating | Certified |
| RoHS | True |
| Mating Retention | Without |
| 端子の下地めっきの材料 | Nickel |
| Mating Post Length | 7.49 |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 150 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 5 |
| Contact Retention | Without |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Termination Method to Wire & Cable | Solder |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
